High-Performance Thermal Insulation Materials

ENGINEERED FOR THERMAL PERFORMANCE

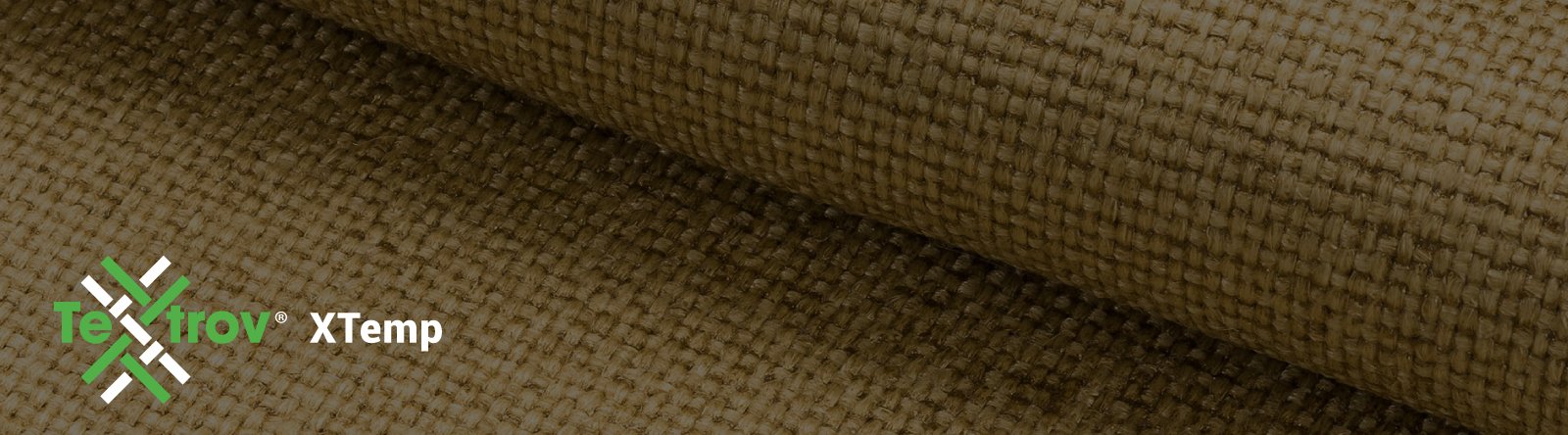

Xtemp by Supertech Fabrics delivers cutting-edge technical fabrics designed for thermal insulation, radiant heat shielding, and fire resistance in the most demanding industrial environments. Powered by vermiculite, aerogel, and graphite coatings on engineered substrates, Xtempfabrics protect assets, operators, and systems in metallurgy, power, oil & gas, defence, aerospace, and other high-risk industries.

WHY CHOOSE TEXTROV XTEMP?

Extreme Temperature Resistance
Withstands surface exposure up to 1100°C (2012°F). Ideal for molten metal splash, open flame, and hot gas zones.
Graphite-coated fabrics add enhanced radiant heat reflectivity and oxidation resistance in continuous high-temperature service.
World-Class Insulation
Aerogel-coated fabrics offer ultra-low thermal conductivity (0.017 W/mK) to block heat with minimal thickness.
Graphite-coated fabrics improve thermal stability and reduce oxidation in elevated temperature ranges.
Durable Under Stress
Engineered from fibreglass, silica, ceramic, aramid, and now graphite-coated high-strength substrates — built
for abrasion, compression, and thermal fatigue.
Fire-Barrier Ready
Prevents flame spread, spark penetration, and radiant heat transfer in critical safety zones.
Graphite coatings improve char formation and flame spread resistance.
Application-Focused Series
Choose between:
XTemp-V (Vermiculite Coated) – Flame-blocking mineral layer for fire shielding.

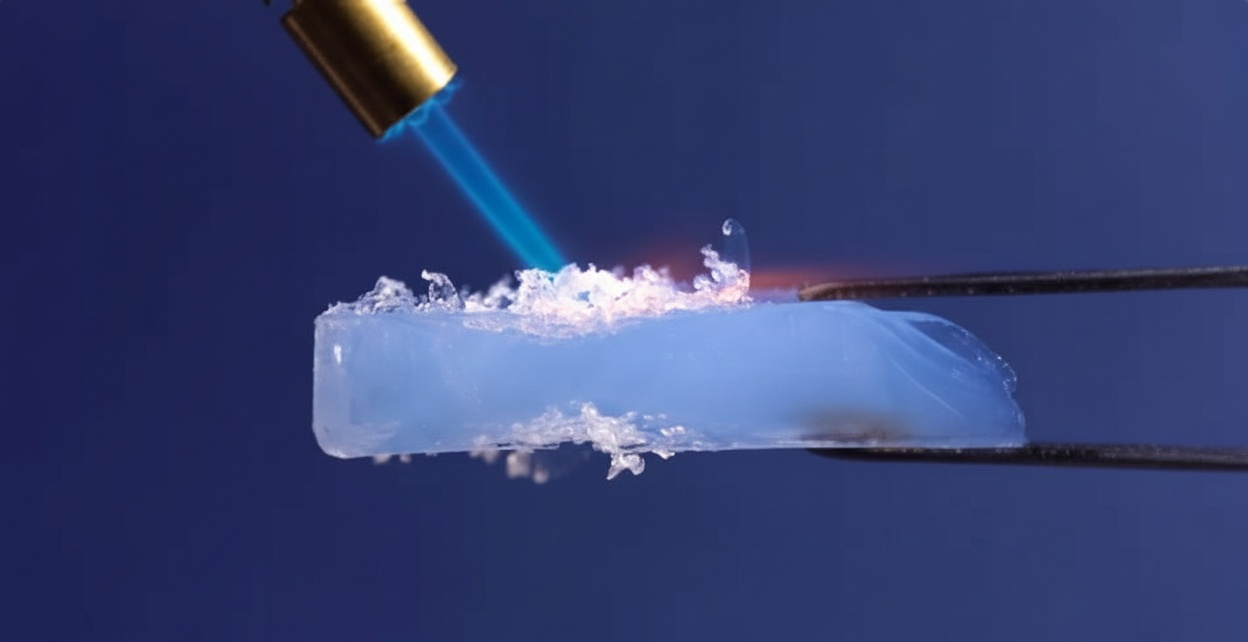

XTemp-A (Aerogel Coated) – Ultra-low thermal conductivity for high-efficiency insulation.
XTemp-G (Graphite Coated) – Superior thermal stability and oxidation resistance for continuous high-temperature exposure.
Custom Fit & Finishing Available as stitched blankets, rolls, multi-ply jackets, or modular thermal protection panels.

TECHNICAL PERFORMANCE DATAPOINTS

Xtemp are highly resistant chemistries for extreme properties.

Property	Typical Capability
Peak Temperature Resistance	700–1100°C (vermiculite & graphite series); 650–850°C (aerogel series) — continuous service and peak short-term exposure
Thermal Conductivity	Aerogel: as low as 0.017 W/mK (industry-leading); Vermiculite: 0.06–0.08 W/mK; Graphite: 0.05–0.07 W/mK with enhanced radiant heat reflectivity
Flame Retardancy & Smoke Spread	Minimal under radiant or sustained heat exposure (meets ISO 11612, NFPA 2112, FAR 25.853)
Molten Metal & Splash Resistance (NEW)	Capable of resisting molten iron, steel, aluminium splash (ASTM F955 tested for selected grades; graphite-coated fabrics perform in continuous splash environments)
Abrasion & Mechanical Durability (NEW)	Reinforced base fabrics withstand flexing, compression, and abrasive environments (EN ISO 12947 compliant)
Hydrocarbon & Chemical Resistance (NEW)	Selected coatings tested for hydrocarbon pool fires, mild acids/alkalis, and industrial pollutants
Base Material Options	Glass, Ceramic, Silica (>95%), Aramid blends
Coating Systems	Vermiculite mineral layer (flame-blocking); Aerogel composite matrix (thermal insulation); Graphite layer (oxidation and radiant heat resistance)
Weight & Thickness Range (NEW)	Available from 250 gsm to 1500 gsm; thicknesses 1 mm to 12 mm for multi-layer systems
Electrical Properties (Optional) (NEW)	Can be engineered for arc-flash and dielectric barrier performance (ASTM F1959)
Custom Formats	Jackets, stitched panels, removable blankets, curtain walls, wraps, fire stops, and multi-ply laminates

MARKETS & APPLICATIONS

Defence

• Sensitive equipment cover
• High temperature and blast protection
• Ballistic and protective gear

Renewable Energy

• Wind turbine blade coating
• Solar panel protection film

Metallurgy & Steel

• Furnace door curtains, ladle insulation jackets, and molten splash guards (vermiculite- or graphite-coated)
• Kiln wall insulation and spark barriers in glass/ceramic plants
• Heat shields for casting lines and rolling mills (graphite-coated for radiant heat)
• Removable thermal covers for annealing and forging equipment
• Welding curtains and radiant heat protection for high-temperature work zones

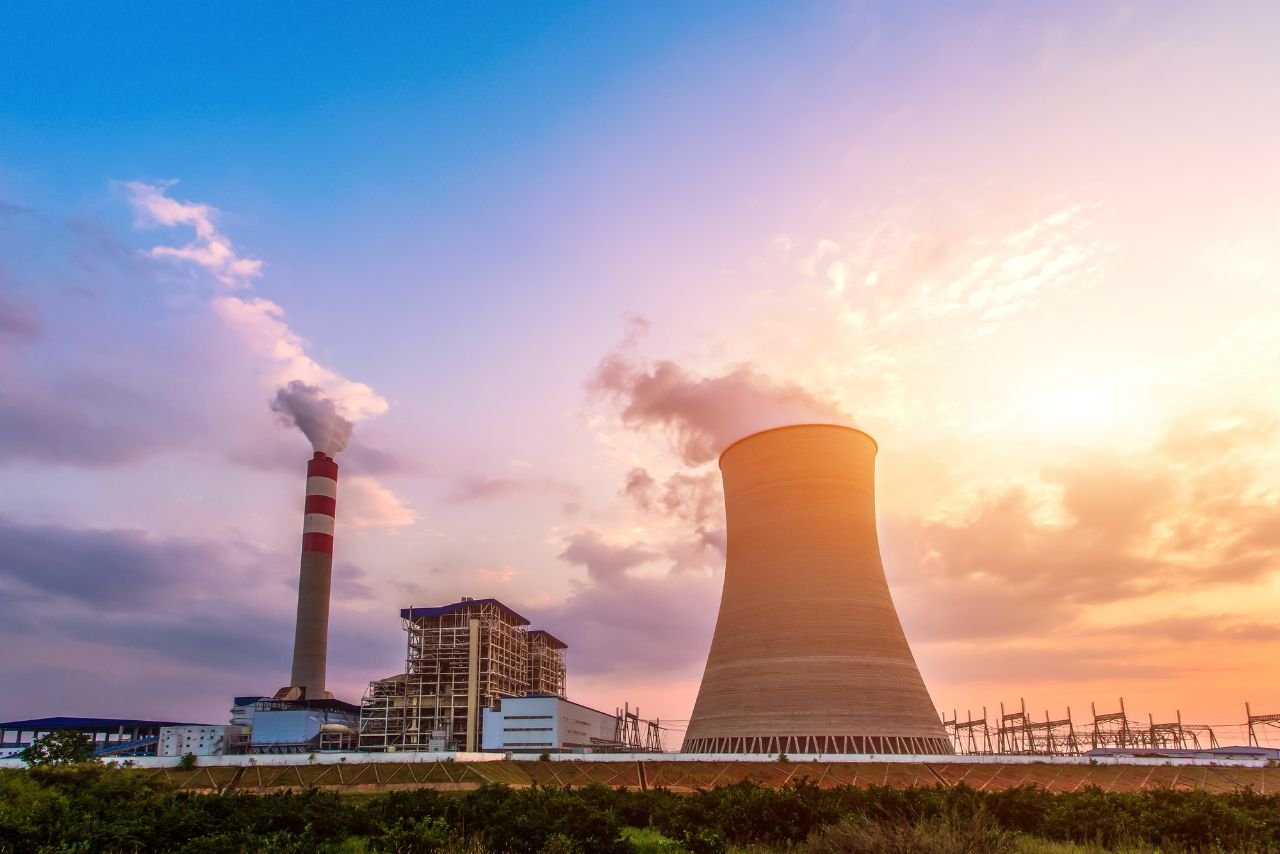

Power Generation & Utilities

• Removable thermal jackets for boilers, turbines, and heat exchangers (aerogel- or graphite-coated)
• Pipe insulation wraps and elbow covers to maintain safe surface temperatures (< 60°C)
• Radiant heat barriers for flue ducts, control rooms, and cable trays
• Turbine wall fire blankets and modular thermal panels for equipment rooms
• Thermal isolation pads for transformers and generator housings

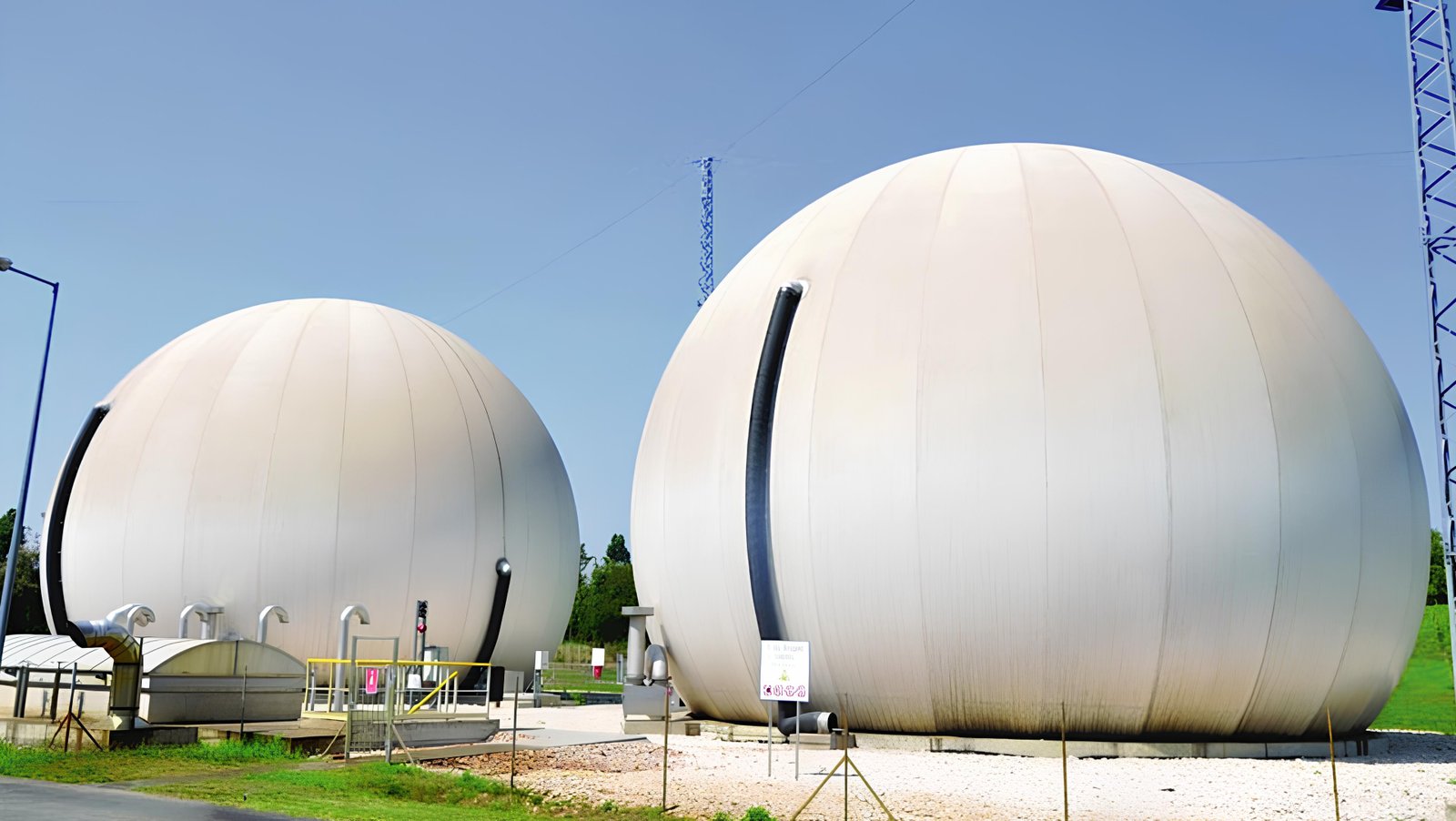

Oil & Gas (Onshore & Offshore)

• Fire and spark blankets for offshore rigs and compressor stations
• Removable insulation jackets for separators, valves, and flowlines (aerogel- or graphite-coated)
• Hydrocarbon fire-resistant radiant barriers for storage tank farms
• Flare stack protection wraps and emergency fire curtains
• Blast protection blankets for hazardous zones

Aerospace

• Aircraft engine and battery liners (MIL-STD / FAR 25.853 compliant)
• Thermal insulation for missile bays and propulsion system compartments
• Cable shields and firewall insulation in aircraft and armoured vehicles
• Blast and fire-barrier panels for defence vehicles and portable shelters
• Radiant heat and arc-flash curtains for military maintenance hangars

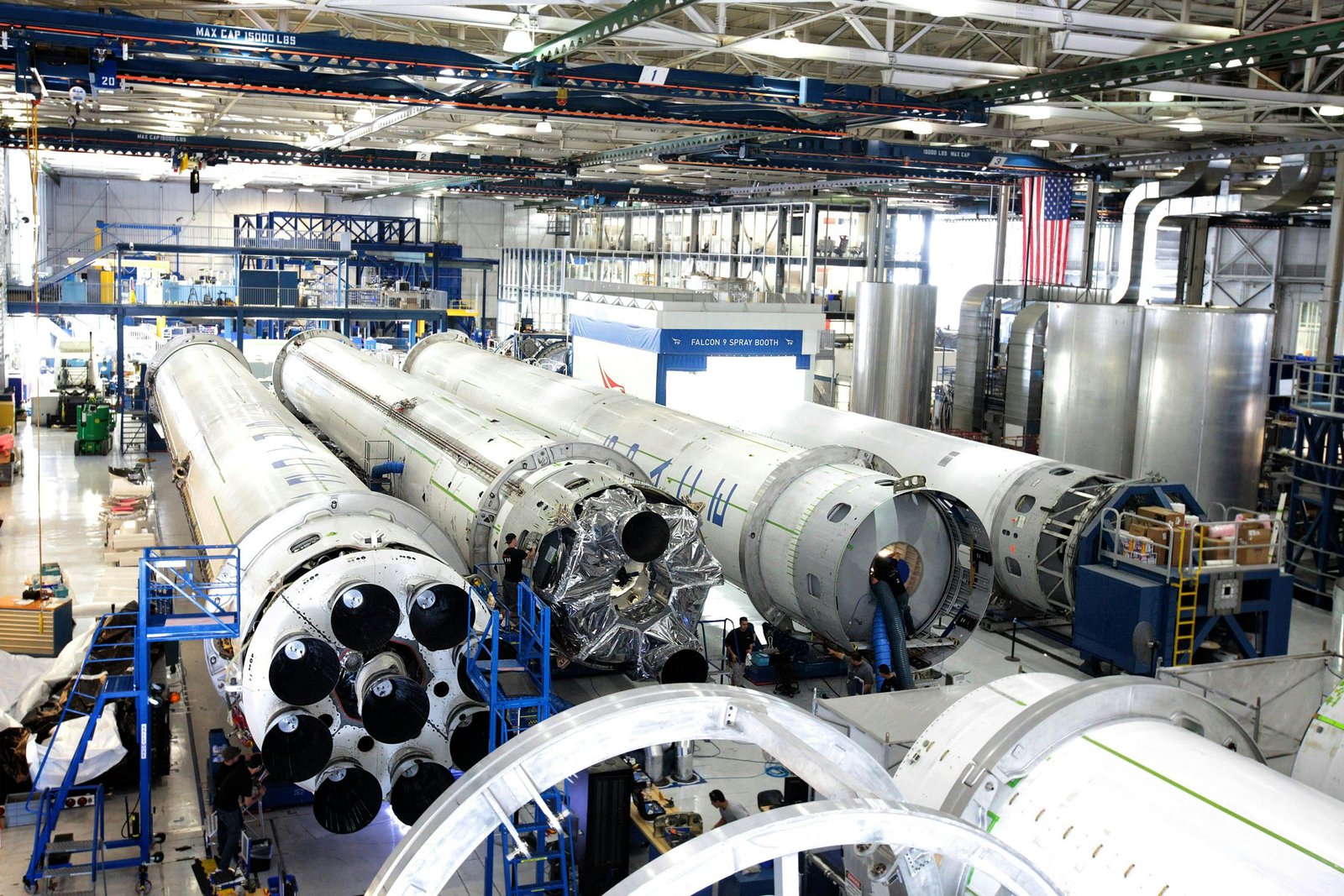

Energy Equipment OEMs

• Custom insulation jackets for skid-mounted equipment (aerogel or graphite low-conductivity series)
• High-efficiency radiant heat shields for turbine enclosures
• Modular insulation panels for battery energy storage systems (BESS)
• Thermal wraps for process skids and packaged heat exchangers

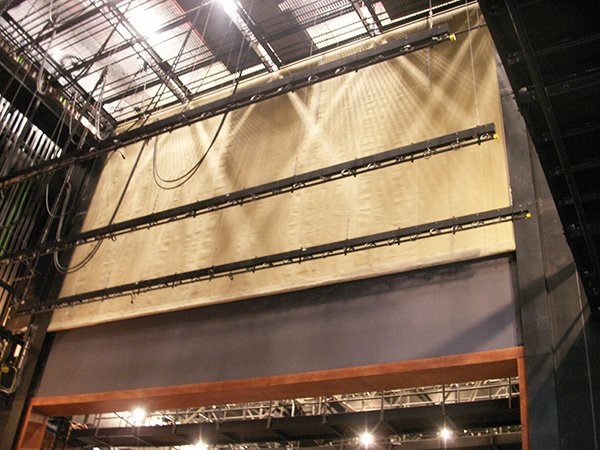

Fire Safety & Industrial Welding

• Spark and splash curtains for welding zones (vermiculite- and graphite-coated)
• Modular fire blankets for construction and maintenance sites
• Fire-barrier curtains for tunnels, underground utilities, and public spaces
• Fire stops and emergency shielding blankets for plant shutdown zones

Marine & Shipbuilding

• Fire-resistant bulkhead liners and deck insulation blankets
• Fire-resistant bulkhead liners and deck insulation blankets
• Engine room radiant heat barriers and cable protection wraps (graphite-coated)
• Hydrocarbon fire blankets for offshore supply vessels

Public Infrastructure & Smart Cities

• Fire curtains and spark barriers for metro tunnels and underground stations
• Emergency thermal blankets for utility corridors and substations
• Engine room radiant heat barriers and cable protection wraps (graphite-coated)
• Radiant heat barriers for underground energy storage facilities

Renewable Energy & Battery Plants

• Fire and thermal barriers for battery energy storage systems (BESS)
• Arc-flash shields for solar inverters and high-voltage DC enclosures
• Wind turbine nacelle insulation blankets (low thermal conductivity)

Mining & Tunnelling

• Fire blankets and spark barriers for underground mining operations
• Removable insulation for large mobile machinery engines
• Thermal protection wraps for explosive storage zones and shaft equipment

PRODUCT LINE

XTEMP-G – GRAPHITE COATED SERIES (NEW)

Code	Base Fabric	Temperature Range	Coating	Applications
Temp-G C	Ceramic	−30°C to 1100°C (−22°F to 2012°F)	Graphite	Furnace liners, kiln wall insulation, spark barriers
Temp-G S	Silica (95%+)	−30°C to 1100°C (−22°F to 2012°F)	Graphite	Continuous furnace seals, molten splash guards, radiant heat shields

XTEMP-V – VERMICULITE COATED SERIES

Code	Base Fabric	Temperature Range	Coating	Applications
Temp-V G	Glass Fibre	−30°C to 700°C (−22°F to 1292°F)	Vermiculite	Heat curtains, safety covers
Temp-V C	Ceramic	−30°C to 1100°C (−22°F to 2012°F)	Vermiculite	Furnace shields, spark barriers
Temp-V S	Silica (95%+)	−30°C to 1100°C (−22°F to 2012°F)	Vermiculite	Molten splash guards, welding curtains

XTemp-A – AEROGEL COATED SERIES

Application Sector	Base Fabric	Temperature Range	Structure	Applications
Temp-A FG	Glass Fibre	−30°C to 650°C (−22°F to 1202°F)	Aerogel Coated	Pipe wraps, removable insulation jackets
Temp-A C	Ceramic	−30°C to 850°C (−22°F to 1562°F)	Aerogel Coated	Tank covers, muffler sleeves
Temp-A Ar	Aramid Blend	−30°C to 650°C (−22°F to 1202°F)	Aerogel Coated	Cable shields, aerospace enclosures

ENGINEERED TO MEET THE HIGHEST STANDARDS

Textrov Xtemp are engineered to meet ISO 11612, NFPA 2112, FAR 25.853, MIL-DTL-32439, and UL 94 V-0 standards—ensuring compliance for arc flash protection, hydrocarbon fire resilience, and radiant barrier applications. Custom thickness, R-value, and insulation mapping are tailored to each equipment zone for optimized thermal and safety performance.
