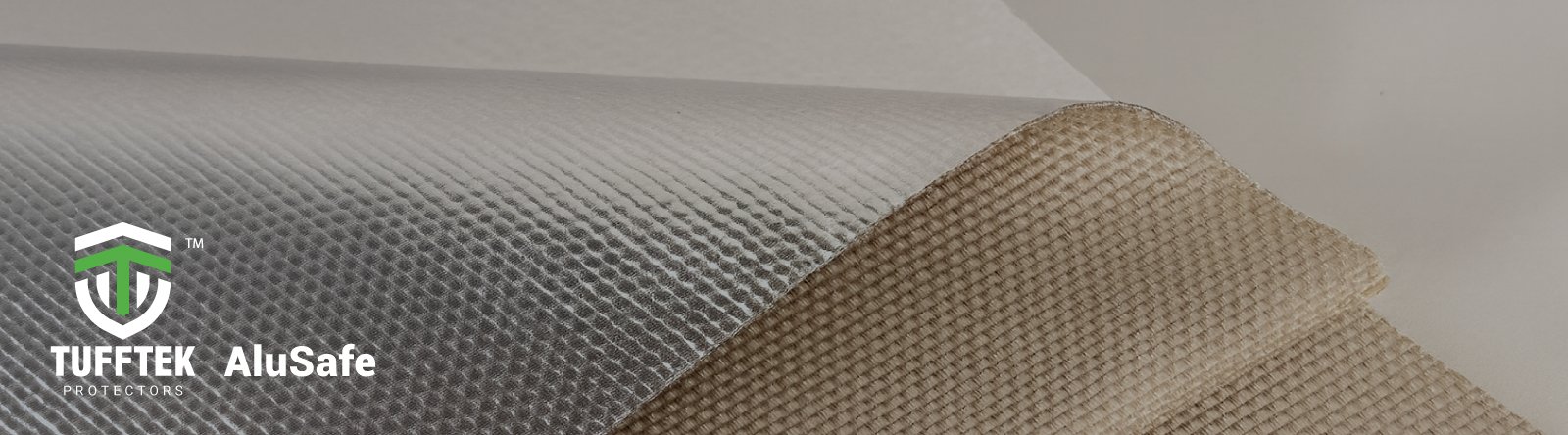

AluSafe Main Banner

C4 CLASS RADIANT HEAT BARRIER

KEY FEATURES

Ideal for use in foundries, welding zones, steel plants, and firefighting gear, our aluminised fabrics offer a perfect balance of flame resistance, thermal insulation, and mechanical durability.

APPLICATIONS

Fire proximity suits
Heat shields & welding blankets

STYLE	CLASSIFICATION	DESCRIPTION	WEIGHT	CERTIFICATION
STF-ALM-FG-220	Fiberglass	Satin weave e-glass with dual mirror	220 g/m2 \| 6.49 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4)
STF-ALM FG-440	Fiberglass	Satin weave e-glass with dual mirror	440 g/m2 \| 12.98 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4)
STF-ALF-FG-440	Fiberglass	Satin weave e-glass with aluminum foil	440 g/m2 \| 12.98 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C3)
STF-ALM-FG-850	Fiberglass	Satin weave e-glass with dual mirror	850 g/m2 \| 25 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, F1)
STF-ALF-FG-850	Fiberglass	Satin weave e-glass with aluminum foil	850 g/m2 \| 25 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, F1)
STF-ALM-HS-600	Hi Silica	Plain weave with dual mirror	600 g/m2 \| 17.7 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, F1)
STF-ALF-HS-600	Hi Silica	Satin weave e-glass with aluminum foil	600 g/m2 \| 17.7 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C3, F1)
STF-ALM-PA-KR-250	Para-Aramid	Rip Stop Knit With Dual Mirror	250 g/m2 \| 7.37 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4)
STF-ALM-PA-440	Para-Aramid	Plain weave with dual mirror	440 g/m2 \| 12.98 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, F1)
STF-ALM-PA-550	Para-Aramid	Herringbone Weave With Dual Mirror	550 g/m2 \| 16.22 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, D1, E1, F1)
STF-ALM-PACP-600	Para-Aramid	Core spun yarn (aramid over fiberglass) in Plain weave with dual mirror	600 g/m2 \| 17.7 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, D1, E1, F1)
STF-ALM-OPAM-260	O-PAN	Plain weave with dual mirror	260 g/m2 \| 7.67 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, D3, E3, F1)
STF-ALM-OPAM-440	O-PAN	Plain weave with dual mirror	440 g/m2 \| 12.98 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, D3, E3, F2)
STF-ALM-OPAM-570	O-PAN	Core spun yarn (aramid O-PAN over fiberglass) in Plain weave with dual mirror	570 g/m2 \| 16.81 oz/yd2	EN ISO 11612: 2010 (A1, A2, B1, C4, D3, E3, F2)

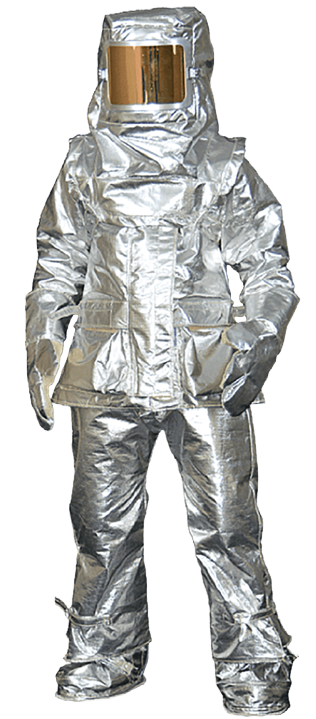

Full body silver proximity entry suit

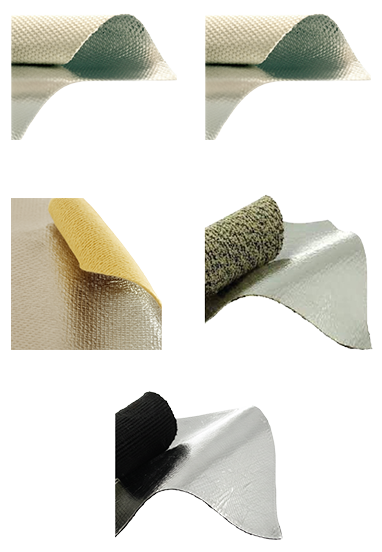

Collage of five reflective fabric samples

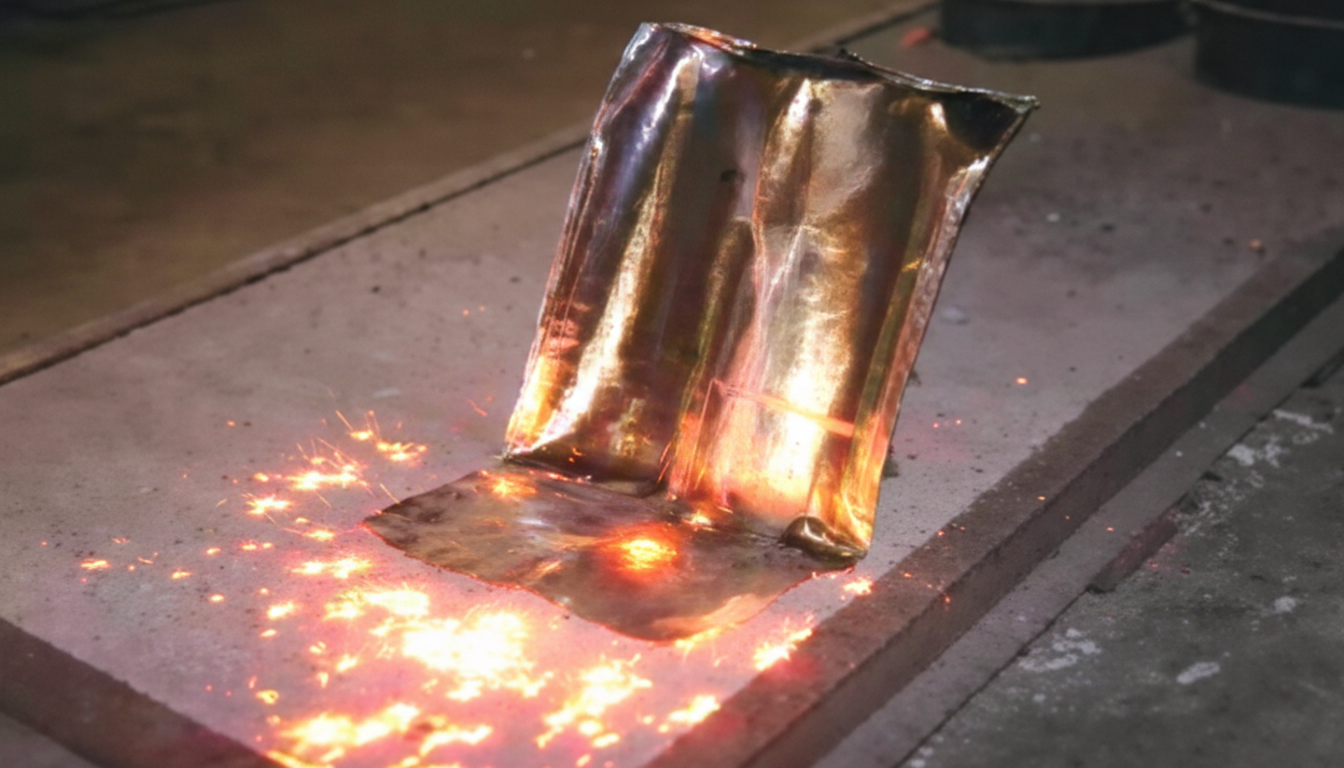

Bright sparks hitting heat resistant fabric

Firefighters in silver suits fighting flames

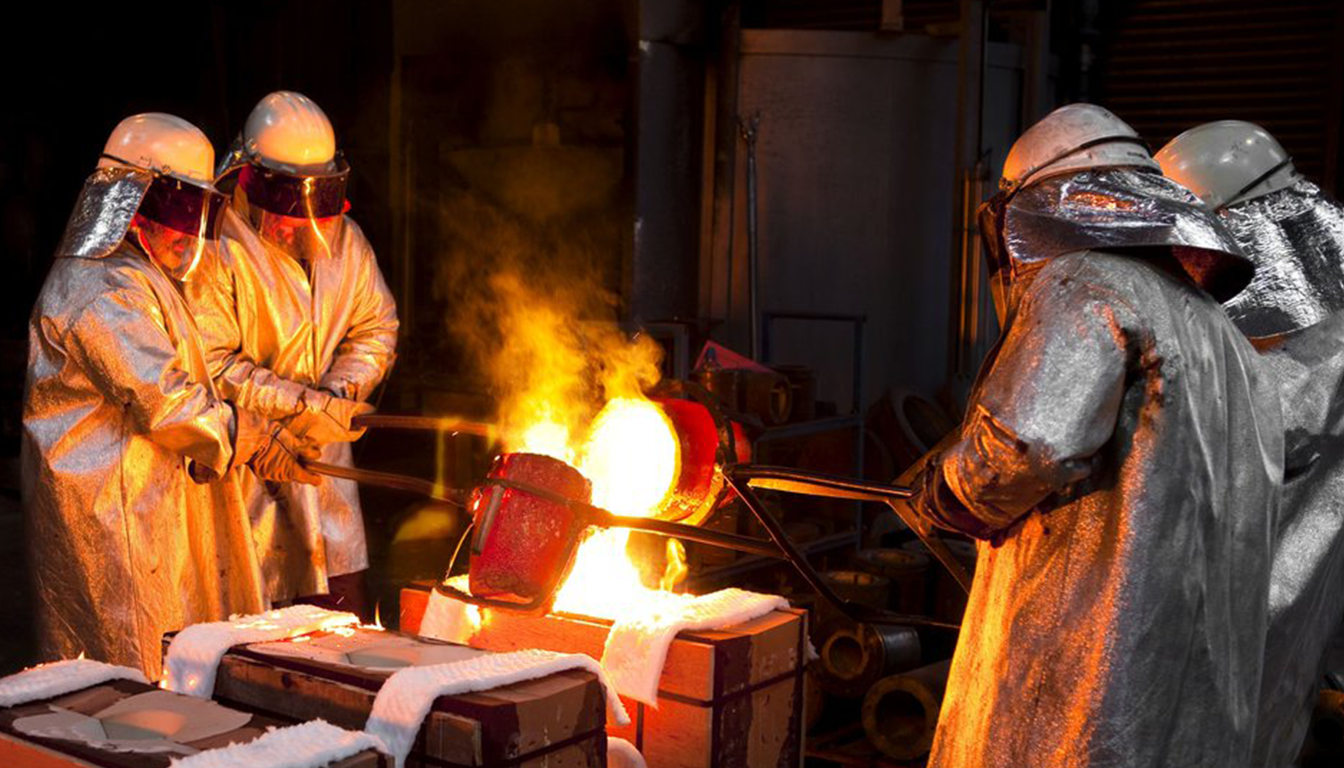

Workers pouring molten metal into molds

Tangled cables and wires
