Advanced Mobility Materials for Transport

BUILT TO ENDURE SPEED, STRESS, AND STANDARDS

TransporTech by Supertech Fabrics delivers high-performance mobility-grade textiles for automotive, railways, aerospace, marine, and metro systems. Designed for extreme operating environments, these advanced laminates offer flame retardancy, low smoke output, thermal insulation, sound absorption, and durability—meeting the evolving safety and performance standards of modern transportation.

WHY CHOOSE TEXTROV TRANSPORTECH?

Built for Global Mobility Compliance:
Meets key standards: EN 45545, FAR 25.853, FMVSS 302, UL94, ISO 3795, and more.
Flame-Retardant & Low Smoke Output :
Certified safe for enclosed passenger environments—rail, aircraft, metro, and buses.
Thermal & Acoustic Shielding in One :
Reduces cabin heat and dampens noise through advanced multi-layered barriers.
Lightweight, Durable Construction:
Minimizes structural load without compromising strength, abrasion resistance, or service life.
Environmental Protection
UV-resistant, oil-repellent, hydrophobic, and mold-resistant for long-term outdoor exposure.
Versatile Composite Architecture
Available in PU, PTFE, silicone, foil laminates, and custom scrim reinforcements.

TECHNICAL PERFORMANCE DATAPOINTS

Every property, precisely engineered. Rigorously tested.

Property	Typical Value / Feature
Temperature Ressistance	Continuous exposure from-30°C up to 300°C, depending on variant (silicone,PTFE,aramid,or fiberglass blends)
Flame Retardancy	EN 45545 HL3, FAR 25.853, FMVSS 302, UL 94 V-0 complaint (meets railway, aviation, and automotive safety codes
Smoke & Toxicity Rating	Certified for enclosed passenger use (S1/S2, R1/R2 smoke density & toxicity limits)
Acoustic Insulation	PU / felt composite barrier layers reduce NVH (Noise, Vibration & Harshness ) and ambient noise (ISO 3381 tested)
Thermal Insulation (NEW)	Multi-layered laminates engineered for radiant and conductive heat protection (composite R-values available on request )
UV & Oil Resistance	Optional coatings for marine, automotive and outdoor use (EN ISO 4892-2 UV weathering tested
Weight	Lightweight composites for transport optimization (maintains strength-to-weight ratios required for OEM platforms)
Abrasion & Mechanical Durability (NEW)	Reinforced laminates withstand high vibration zones (ISO 12947 complaint)
Moisture & Mold Resistance (NEW)	Hydrophobic and anti-fungal treatments ensure long service life in humid environments
Thickness & Density Range (NEW)	Available in 3 mm-25 mm multi-layer formats; GSM options from 300-1500gsm

MARKETS & APPLICATIONS

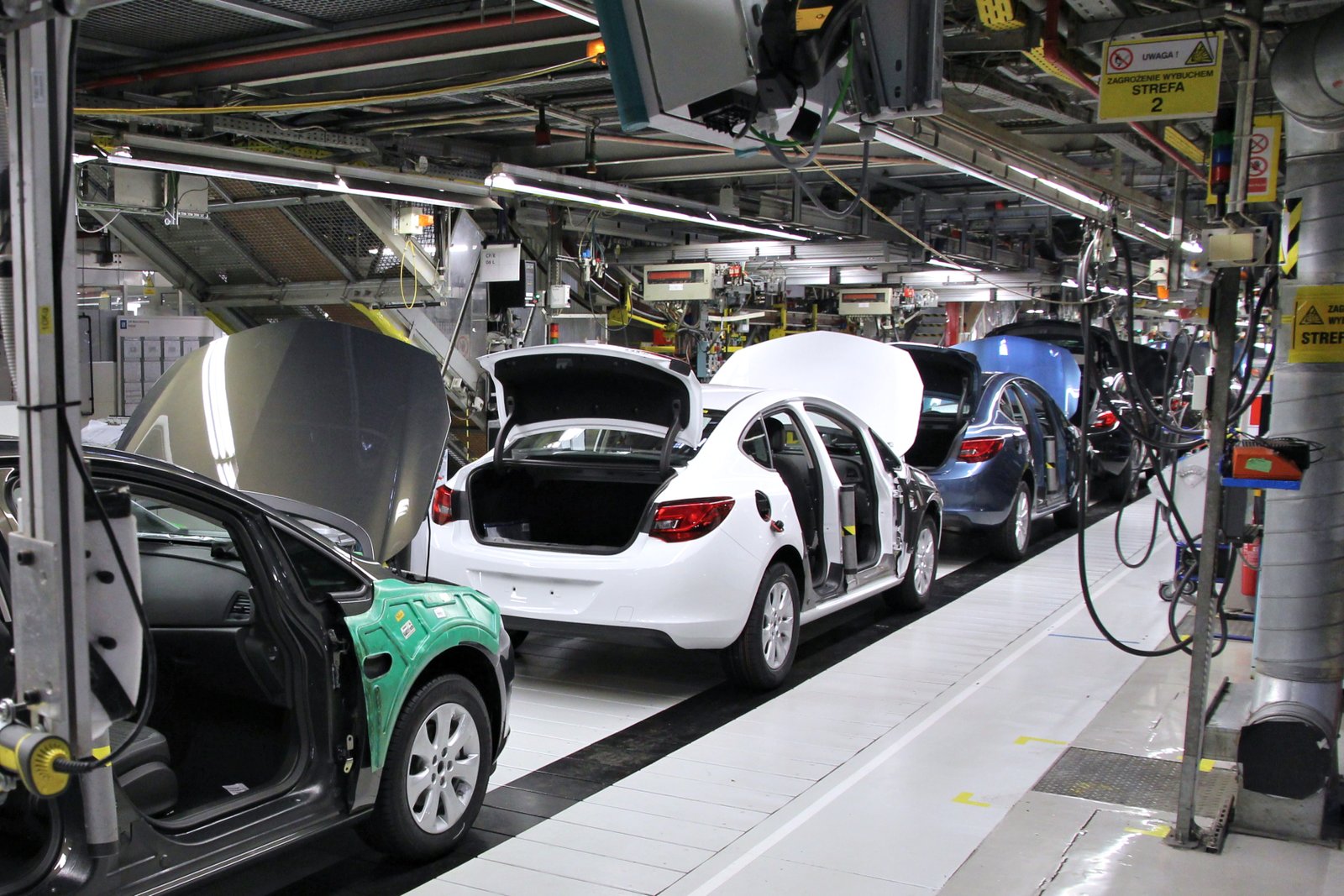

Automotive

● Under-hood insulation wraps (thermal + NVH reduction)
● Floor and seat acoustic barriers (FMVSS 302 compliant)
● HVAC duct jackets (lightweight, flexible, flame retardant)
● Engine compartment and exhaust system coverings (thermal/acous tic laminate)

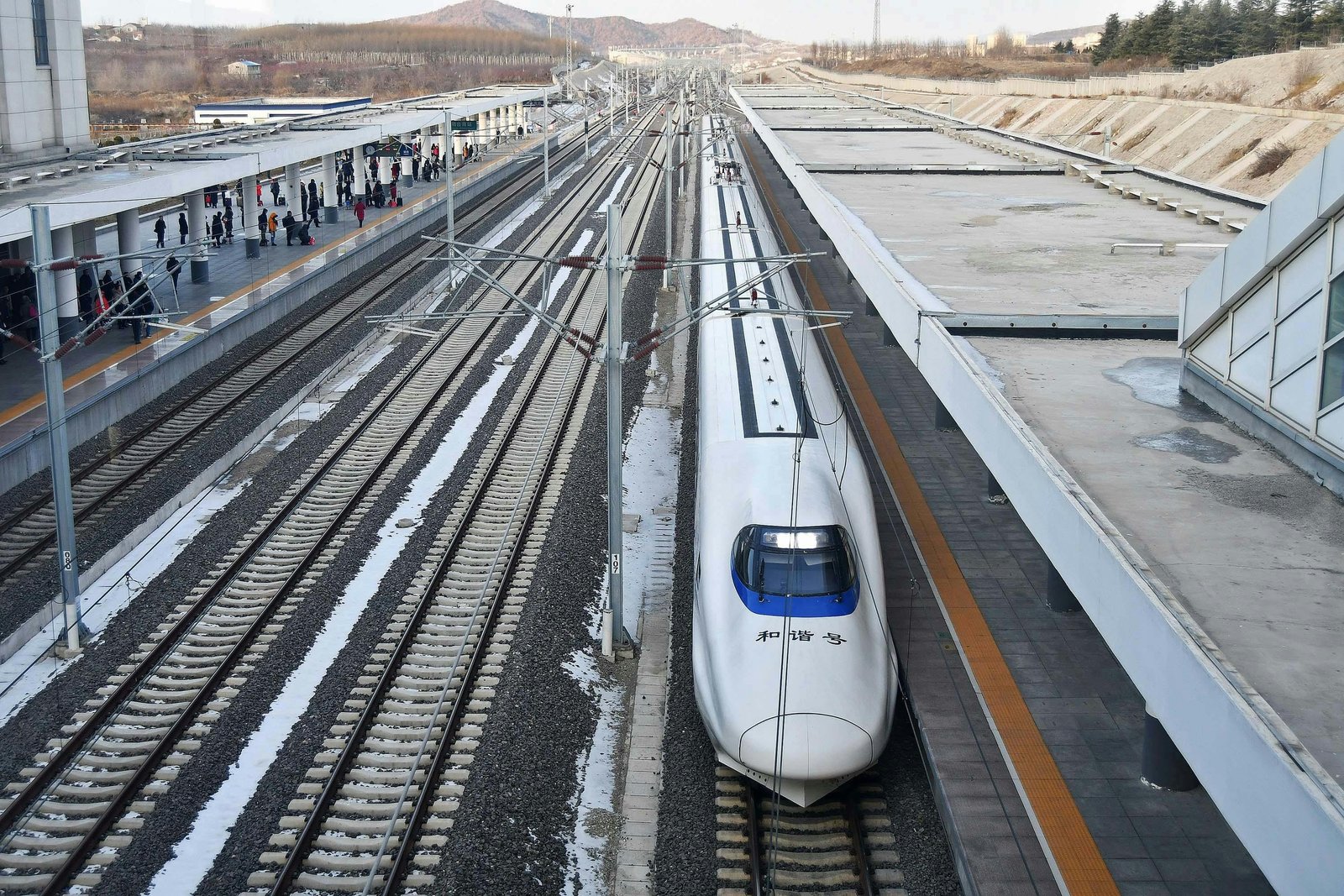

Railways

● Cabin wall and ceiling panels (EN 45545 HL3 compliant)
● Floor and seat acoustic barriers (low flame/smoke)
● Emergency fire curtains and tunnel escape linings
● HVAC duct insulation in passenger and cargo areas

Aerospace

• Cabin wall and ceiling insulation panels (FAR 25.853 compliant)
• Battery and avionics compartment thermal barriers
• Lightweight acoustic damping layers for aircraft interiors
• Escape tunnel linings and fire curtains for aerospace systems

Marine

• Engine room thermal and acoustic insulation wrapsbr/> • Exhaust and compartment coverings (oil and UV-resistant)
• Fire curtain and flame barrier partitions in cabins)
• Protective covers for deck and critical onboard systems

Metro & Urban Transit

• HVAC duct jackets and thermal wraps (low smoke, flame retardant)
• Emergency fire curtains for stations and underground tunnels
• Sound absorbing wall and ceiling panels (ISO 3381 compliant)
Exterior covers resistant to oil, UV, and weathering

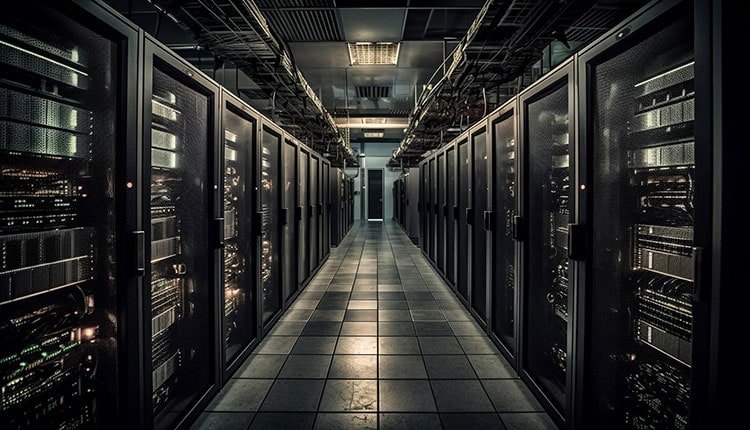

Additional Applications

• Battery energy storage (BESS) thermal and fire barrier linings
• Data center generator insulation wraps for noise and heat control
Defensive vehicle acoustic & flame barriers for high safety mobility

PRODUCT LINE

SKU	Product Name	Coating	Base Fabrics	Temperature Range	Features
STM-A50 01	Acoustic Barrier Panel	PU / Acrylic Blend	Aramid Blend	-30°C to 250°C	Flame resistant,thermal barrier, noise dempening (automotive)
STF-Rail0 01	Railguard FR-LT	Silicone	Fiberglass	-30°C to 300°C	EN 45545 HL3 complaint, UV & abrasion resistant (rail panels)
STF-Rail0 02	VibroCoat Mobility	PU Coated	Nonwoven Composite	-30°C to 150°C	Lightweight acoustic layer for pratitions and seat backs
STF-A800 4A	AeroShield BSO-X	PTEF/ Silicone	Aramid Composite`	-30°C to 300°C	FAR 25.853 complaint, impact resistant, low flame/smoke (aviation panels)

ENGINEERED TO MEET THE HIGHEST STANDARDS

Textrov Transportech fabrics are engineered to meet the stringent safety and performance standards required across the transportation sector—including rail, aerospace, and automotive applications. Our materials are compliant with EN 45545-2 for railway fire safety, FAR 25.853 for aircraft cabin interiors, and FMVSS 302 / ISO 3795 for vehicle flammability. Flame spread performance is validated through UL 94 V-0 and ASTM E84, while acoustic performance is certified under ISO 3381 and ISO 6721-3 for noise and vibration control. All products are developed with a strong commitment to environmental responsibility, adhering to REACH, RoHS, and sustainable sourcing practices.

SUPPORT AND CUSTOM ENGINEERING FOR APPLICATION USE

Supertech Fabrics Textrov TransporTech division partners with automotive, rail, aerospace, marine, and metro OEMs to engineer mobility-grade textile systems built for certified performance:

Platform-Specific Material Engineering: PU, PTFE, silicone, and aramid-based laminates selected for fire, acoustic, and thermal protection unique to each transport mode.
Custom-Configured Formats: Supplied as stitched modules, cut panels, multi-layer composites, or rolls for seamless OEM line integration.
Multi-Functional Layering: Engineered to combine noise suppression, thermal insulation, and fire barriers in one lightweight composite .
From concept to certified production – TransporTech makes mobility safer, quieter, and more efficient.
