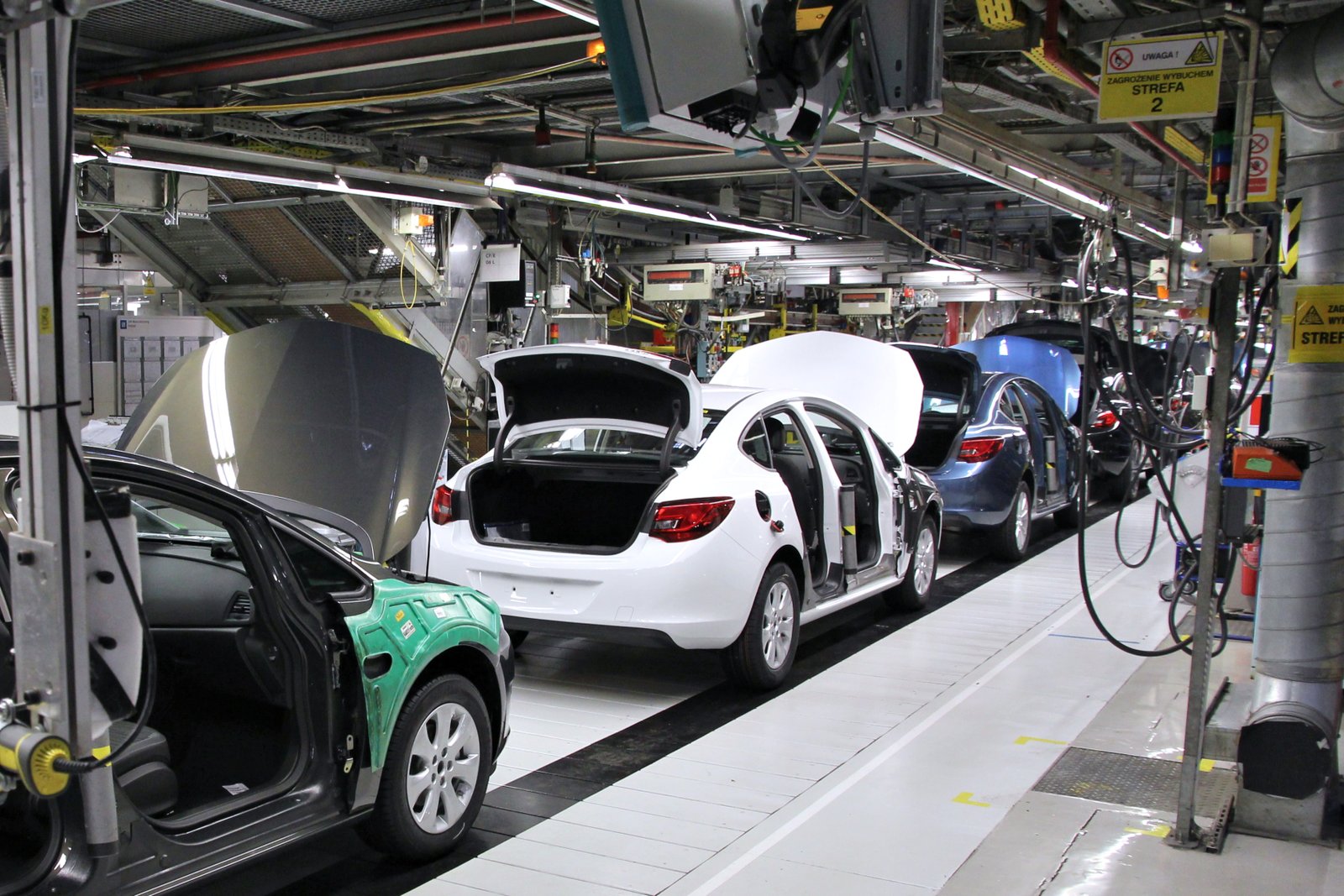

TransporTech by Supertech Fabrics delivers high-performance mobility-grade textiles for automotive, railways, aerospace, marine, and metro systems. Designed for extreme operating environments, these advanced laminates offer flame retardancy, low smoke output, thermal insulation, sound absorption, and durability—meeting the evolving safety and performance standards of modern transportation.
Every property, precisely engineered. Rigorously tested.
| Property | Typical Value / Feature |
|---|---|
| Temperature Resistance | Continuous exposure from-30°C up to 300°C, depending on variant (silicone,PTFE,aramid,or fiberglass blends) |
| Flame Retardancy | EN 45545 HL3, FAR 25.853, FMVSS 302, UL 94 V-0 compliant (meets railway, aviation, and automotive safety codes |
| Smoke & Toxicity Rating | Certified for enclosed passenger use (S1/S2, R1/R2 smoke density & toxicity limits) |
| Acoustic Insulation | PU / felt composite barrier layers reduce NVH (Noise, Vibration & Harshness ) and ambient noise (ISO 3381 tested) |
| Thermal Insulation (NEW) | Multi-layered laminates engineered for radiant and conductive heat protection (composite R-values available on request ) |
| UV & Oil Resistance | Optional coatings for marine, automotive and outdoor use (EN ISO 4892-2 UV weathering tested |
| Weight | Lightweight composites for transport optimization (maintains strength-to-weight ratios required for OEM platforms) |
| Abrasion & Mechanical Durability (NEW) | Reinforced laminates withstand high vibration zones (ISO 12947 compliant) |
| Moisture & Mold Resistance (NEW) | Hydrophobic and anti-fungal treatments ensure long service life in humid environments |
| Thickness & Density Range (NEW) | Available in 3 mm-25 mm multi-layer formats; GSM options from 300-1500gsm |
| SKU | Product Name | Coating | Base Fabrics | Temperature Range | Features |
|---|---|---|---|---|---|
| STM-A50 01 | Acoustic Barrier Panel | PU / Acrylic Blend | Aramid Blend | -30°C to 250°C | Flame resistant,thermal barrier, noise dampening (automotive) |
| STF-Rail0 01 | Railguard FR-LT | Silicone | Fiberglass | -30°C to 300°C | EN 45545 HL3 compliant, UV & abrasion resistant (rail panels) |
| STF-Rail0 02 | VibroCoat Mobility | PU Coated | Nonwoven Composite | -30°C to 150°C | Lightweight acoustic layer for partitions and seat backs |
| STF-A800 4A | AeroShield BSO-X | PTFE / Silicone | Aramid Composite | -30°C to 300°C | FAR 25.853 compliant, impact resistant, low flame/smoke (aviation panels) |
Textrov Transportech fabrics are engineered to meet the stringent safety and performance standards required across the transportation sector—including rail, aerospace, and automotive applications. Our materials are compliant with EN 45545-2 for railway fire safety, FAR 25.853 for aircraft cabin interiors, and FMVSS 302 / ISO 3795 for vehicle flammability. Flame spread performance is validated through UL 94 V-0 and ASTM E84, while acoustic performance is certified under ISO 3381 and ISO 6721-3 for noise and vibration control. All products are developed with a strong commitment to environmental responsibility, adhering to REACH, RoHS, and sustainable sourcing practices.
Supertech Fabrics Textrov TransporTech division partners with automotive, rail, aerospace, marine, and metro OEMs to engineer mobility-grade textile systems built for certified performance:
