StainlessTech by Supertech Fabrics delivers precision-engineered stainless steel and hybrid metallic woven fabrics designed for use in high-temperature, corrosive, and high-impact environments. From micro-filtration and EMI shielding to fire barriers and insulation wraps, StainlessTech enables structural safety and performance in sectors that demand total reliability.
Stainless steel in woven format brings the magic of material and performance of weaving.
| Property | Typical Capability |
|---|---|
| Temperature Resistance | Continuous exposure from –30°C up to 1000°C, with grade-specific peaks (SS310 & Inconel offer highest thermal resistance) |
| Corrosion Resistance | High resistance to acids, alkalis, chlorides, and salts (suitable for marine & chemical processing zones) |
| Tensile Strength | Grade-optimized to withstand cyclic thermal and impact forces (meets EN ISO 1421 & ASTM A370) |
| EMI/RFI Shielding | Meets MIL-STD-461 & IEC 61000 for marine, aerospace, and defense electronics |
| Filtration Accuracy (NEW) | Mesh counts from 4–500 mesh; microfiltration accuracy for liquids, gases, and powders |
| Chemical Inertness | Available with pickled, annealed, or PTFE finishes for added resistance in harsh chemical environments |
| Abrasion & Fatigue Resistance (NEW) | Woven metallics maintain integrity under vibration and mechanical cycling (ideal for EV & aerospace) |
| Structural Versatility | Suitable for filtration, shielding, reinforcement, insulation, and mechanical support layers |
| Formats & Thickness Range (NEW) | Available as 0.3 mm–8 mm laminated composites; supplied as rolls, stitched forms, or modular panels |
| Feature | Specifications | Key Properties | Use-Cases |
|---|---|---|---|
| Weave Types | Plain (tight flow), Twill (strength/flexibility), Dutch (dense filtration) |
|
|
| Wire Diameter | 0.015 mm to 1.0 mm |
|
|
| Mesh Range | 4 mesh to 500 mesh |
|
|
| Material Grades | SS304, SS316, SS310, SS321, Inconel, Nickel Alloys |
|
|
| Temperature Range | 30°C to 1000°C (grade-specific peaks for SS310, Inconel) | Maintains integrity under extreme thermal cycling |
|
| Finishes | Annealed, Pickled, PTFE/Silicone-coated |
|
|
| Formats | Rolls, stitched forms, laminated panels | Modular options for integration in OEM systems |
|

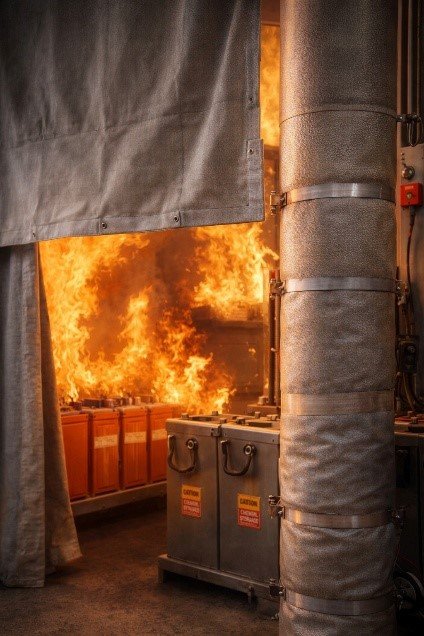

Textrov Stainless fabrics are engineered for critical applications requiring flame protection, electromagnetic shielding, and structural integrity under extreme conditions. Designed to meet international standards such as UL 1709, ASTM E119, and EN 13501 for high-temperature and flame resistance, the series also offers robust EMI/RFI shielding in compliance with MIL-STD-461 and IEC 61000. For process and filtration reliability, materials align with ISO 9001 and ASME Section VIII. In the evolving EV and mobility sector, Textrov Stainless addresses fire and electrical safety through UL 94, ISO 26262, and UN 38.3, while aerospace variants conform to RTCA DO-160 and FAR 25.856 for cabin and thermal insulation safety. Built on verified performance and certified assurance, the Stainless series is trusted for mission-critical environments.
Supertech Fabrics Textrov StainlessTech division works side by side with OEMs, EPCs, and engineering teams to design metallic fabric systems for environments where failure isn’t an option: Precision Alloy Selection: SS304, SS316, SS310, Inconel, and hybrid blends chosen for your thermal, corrosive, and mechanical demands.
