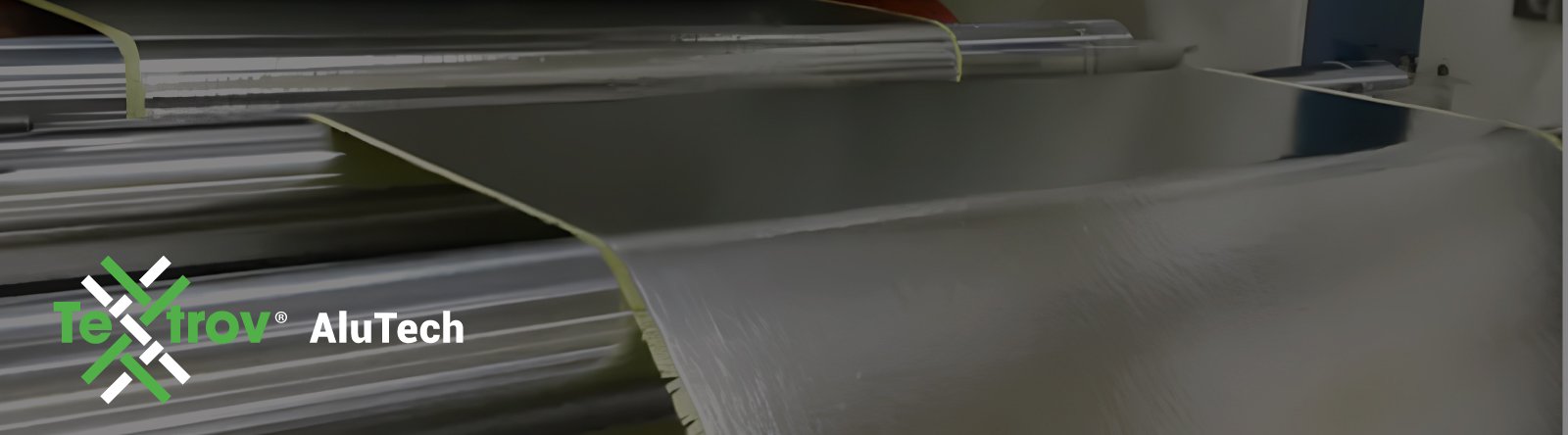

Textrov AluTech by Supertech Fabrics is a specialized range of aluminized technical textiles engineered to deliver superior radiant heat reflection, flame resistance, and thermal insulation. Designed for demanding industrial environments, AluTech fabrics reflect up to 97% of radiant energy—protecting personnel, equipment, and structures in zones exposed to extreme heat, molten splash, and arc flash.
.png)
High wavelength radiant heat combated through reflection at C4 class grade.
| Property | Typical Capability |
|---|---|
| Radiant Heat Reflectivity | Reflects up to 95% radiant energy, reducing surface temperatures significantly (ISO 9151 tested) |
| Temperature Resistance | Continuous exposure from –30°C up to 550°C (Silica base); –30°C to 150–300°C for aramid and fiberglass base fabrics |
| Molten Metal & Splash Resistance (NEW) | Withstands molten metal splash, sparks, and spatter (ASTM F1939) |
| Tensile Strength (NEW) | > 35 kg/25 mm in both warp and weft directions (EN ISO 13934-1 compliant) |
| Abrasion & Mechanical Durability (NEW) | Bonded aluminized layers retain adhesion under flexing and cyclic heat exposure |
| Arc Flash & Electrical Resistance (NEW) | Reflective barrier supports use in high-voltage and arc flash zones (IEC 61482-1-2 optional) |
| Coating Options | Foil-laminated or vacuum-Metallised aluminium; optional anti-oxidation and anti-stick surface treatments |
| Surface Behavior | Flame retardant, moisture-repellent, and low thermal conductivity on the coated side |
| Chemical Resistance (NEW) | Resistant to mild acids, alkalis, and industrial pollutants (especially in oil & gas and marine environments) |
| Base Material Options | Aramid (lightweight PPE), Fiberglass (general industrial), Silica (>95%) (high temperature) |
| Weight & Thickness Range (NEW) | Available from 200 gsm to 1200 gsm, thicknesses 0.5 mm to 8 mm for different industrial needs |
| Custom Formats | Available in cut sheets, stitched, panels, sleeves, rolls, or PPE components (gloves, suits, wraps, curtains) |
| Product Variant | Base Fabric | Temperature Range | aluminium Type | Specialty |
|---|---|---|---|---|
| AluTech-AR+Met | Aramid | –30°C to 150°C | Metallised | Light & flexible for PPE—gloves, aprons, suits |
| AluTech-FG-MET | Fiberglass | –30°C to 250°C | Foil-laminated | General-purpose insulation, welding wraps |
| AluTech-FG-AL | Fiberglass | –30°C to 300°C | Foil-laminated | Thermal sleeves, duct covers, heat-reflective curtains |
| AluTech-SIL-MET | Silica | –30°C to 550°C | Foil-Metallised | Splash guards, furnace curtains, flame barriers |
| AluTech-PET-MET/PET-AL (NEW) | Polyester | –30°C to 150°C | Foil-laminated or Metallised | Economical reflective wraps, low-temp HVAC jackets, lightweight barriers |
| AluTech-PET-HPET-MET (NEW) | High-tenacity Polyester | –30°C to 180°C | Metallised | Stronger mechanical properties for scaffold wraps and roofing membranes |
| AluTech-SB-MET/SB-AL (NEW) | Nonwoven Spunbond (PP or PET) | –30°C to 120°C | Foil-Metallised or laminated | Single-use fire blankets, packaging insulation, disposable radiant barriers |
Supertech Fabrics Textrov AluTech division partners with OEMs, EPCs, and safety engineers to create aluminized textile systems built to perform in the most punishing thermal environments:
