Engineered Adhesion. Extreme Heat Resistance

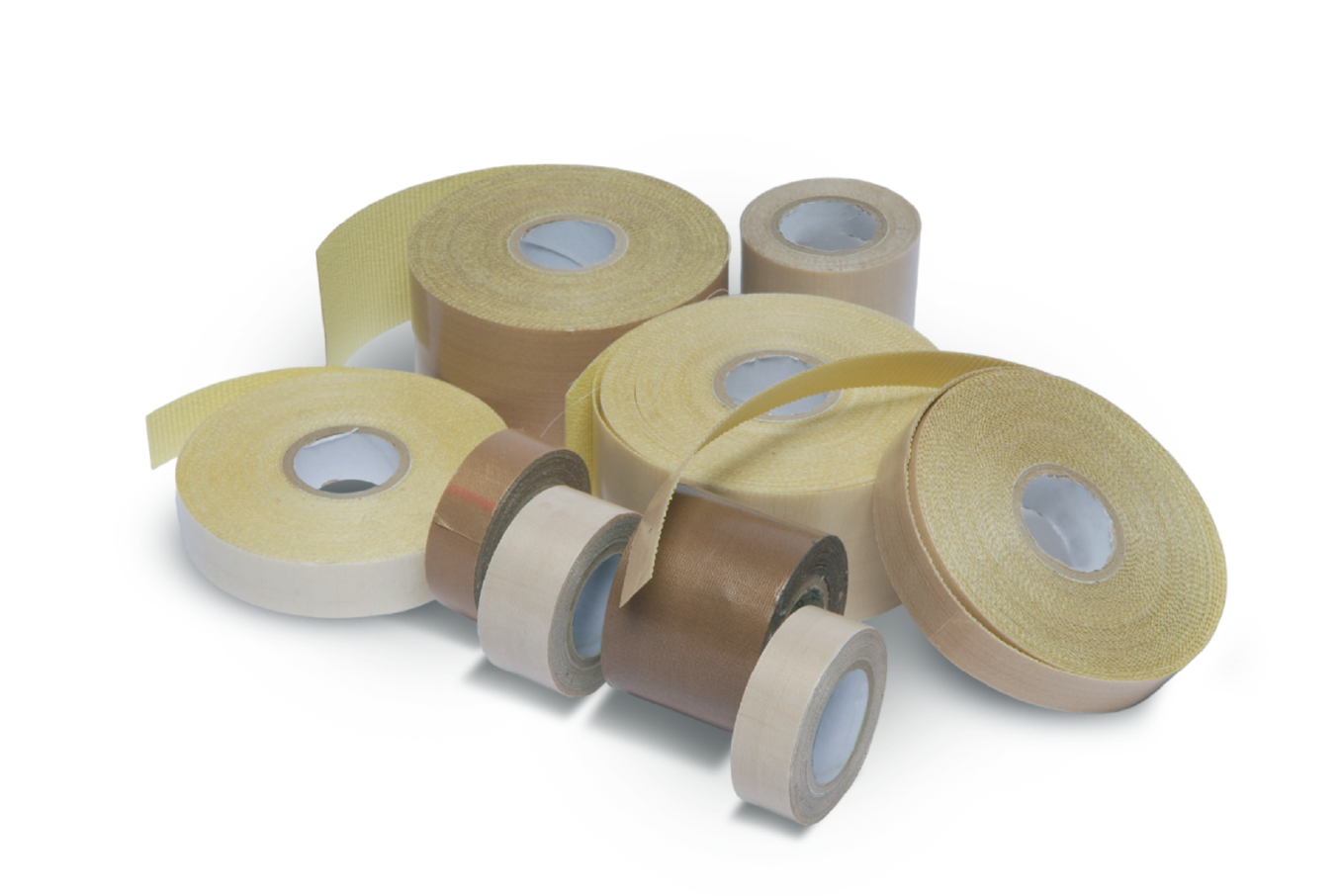

Adhesive Fabric Tapes

One of the most versatile functional engineering utility, tapes are an essential component available in various shapes, types, forms and with properties.

Fabric tape is a niche segment within tapes domain used in demanding applications that are chemical intensive or physical property intensive.

Product Range
  • Fabric Material: Fibreglass, silica tape, aramid, PET.
  • Coating: Acrylic, silicon, Aluminised, PTFE.
  • Adhesive Types: Silicon/Acrylic / Thermoset Polymer/polyimide.
  • Width: From 10 mm to 1000 mm.
  • Core Side: 38 mm.
  • Adhesive Side: With release paper.
General Properties
  • Heat Resistance.
  • Fire Resistant.
  • Chemical Resistance.
  • Tensile Strength.
  • Tear Strength.
  • Peel Strength under Temperature.
Adhesive Fabric Tapes
Background
Sectors

• OEM and EPC.

• Component and Assembly manufacturers.

• Cement & Lime Plants.

• Steel & Ferroalloy Industries.

• Power Plants & Boilers.

• Foundry & Glass Industries.

• Industrial Filtration OEMs.

• Food Packaging & Processing.

• Thermal Insulation Installers.

• Chemical plants.

Applications

• OE Manufacturing and Maintenance.

• Pipe, Duct, and Flange Insulation Wrapping.

• Cable and Hose Protection.

• Heat Shielding and Spark Protection.

• Food Packaging and Heat Sealing.

• Surface Protection and Masking.

• Electrical Insulation.

• Welding and Metal Processing.

• Thermal Protection During Maintenance.

• Composite and Technical Textile Processing.

• General Industrial Uses.

QUICK SELECTION CHART AND PROPERTIES

Textack tapes comes with many base materials, coatings and selection of adhesives, making possible to make it application specific.

Tape Type Temp Resistance Key Feature Main Applications
Fibreglass 550°C Thermal & Electrical Insulation Duct, Flange, Fire Barrier
Aramid 350°C High Strength, Abrasion Filter Seam, Bundling
High Silica 1000°C Extreme Heat Zones Furnace, Welding Blankets
Polyester/Nylon 150°C Lightweight, Economical Bundling, Reinforcement
PTFE-Coated 260°C Non-Stick, FDA Compliant Food Sealing, Masking
Silicone-Coated 260°C Moisture Repellent Sealing, Insulation Wraps
Aluminised 300°C Reflects Radiant Heat Heat Shields, PPE

TEXTACK ADVANTAGES

CUSTOMISABLE PROPERTIES

High Heat Icon
High Heat Icon
High Heat Icon
High Heat Icon
High Heat Icon
High Heat Icon
High Heat Icon

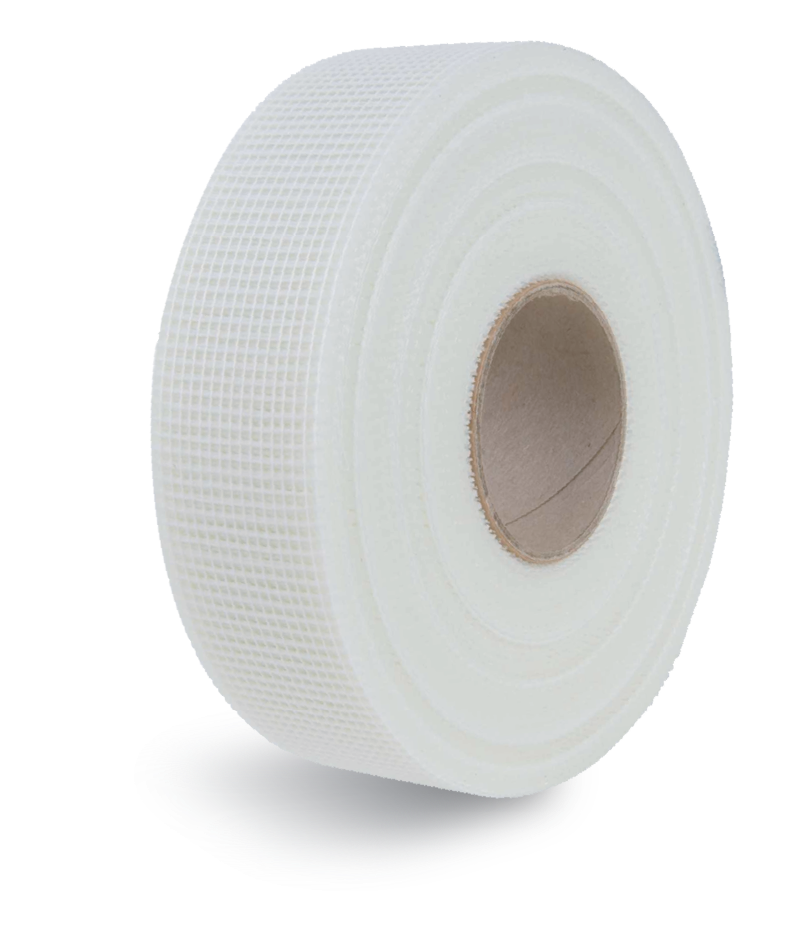

TEXTACK- GLASS FIBRE-E

Glass Fibre Tape Roll
Adhesive:
Silicone based, Acrylic based, Polyimide based
Substrate Material:
E-glass Fibre
Weight (gsm):
125, 230, 350, 440
Product colour:
White
Tensile strength
>35 kg/25 mm warp and weft
Temperature:
Fabric resistance up to 550°C.
High mechanical strength and electrical insulation.
Applications: Pipe & duct insulation wrap, flange sealing, fire barriers, transformer insulation.

TEXTACK- GLASS FIBRE-A

Glass Fibre Tape Roll
Adhesive:
Silicone based, Acrylic based
Substrate Material:
Alkali resistant glass fibre
Weight (gsm):
125, 210
Product colour:
White
Tensile strength
>35 kg/25 mm warp and weft
Temperature:
Fabric resistance up to 550°C.
High mechanical strength and Alkali resistant.
Applications: Building Sector, Cement and gypsum.

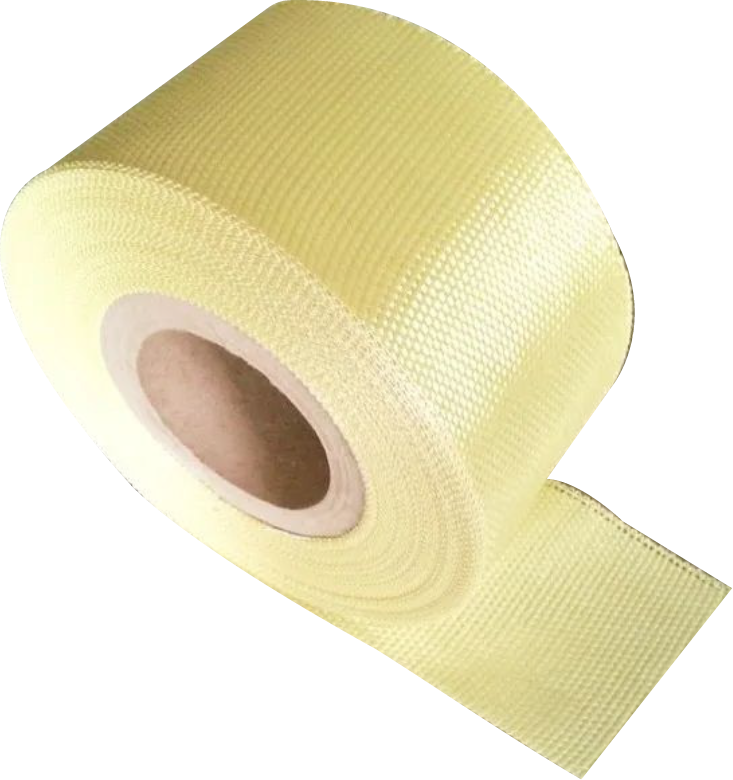

TEXTACK- ARAMID

Glass Fibre Tape Roll
Adhesive:
Silicone based, Acrylic based
Substrate Material:
Para Aramid
Weight (gsm):
230, 350
Product colour:
White
Tensile strength
>35 kg/25 mm warp and weft
Temperature:
Fabric resistance up to 250°C
High tensile strength, abrasion, and cut resistance.
Applications: Seam reinforcement, high-strength bundling, hot roll wraps.

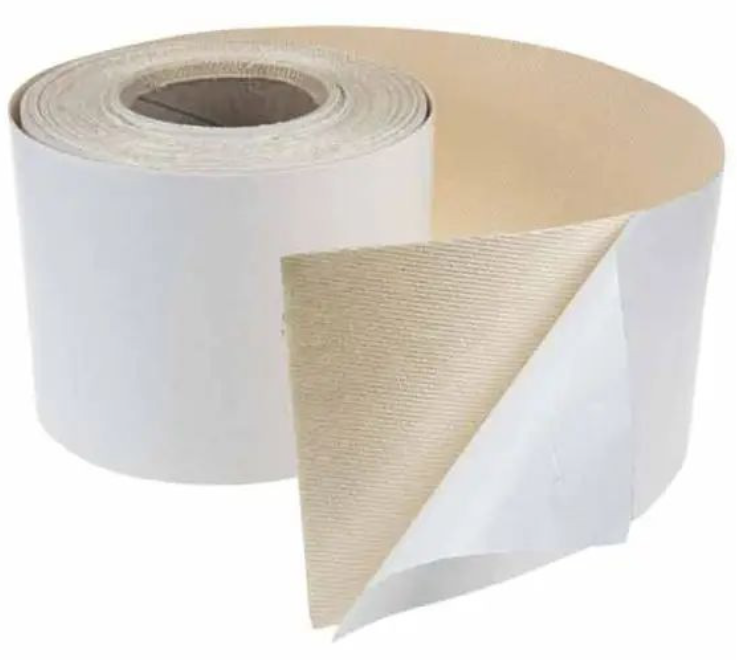

TEXTACK- SILICA

Glass Fibre Tape Roll
Adhesive:
Silicone based, Acrylic based, Polyimide based
Substrate Material:
96%+ silica fabric
Weight (gsm):
230,350
Product colour:
Off White
Tensile strength
>25 kg/25 mm warp and weft
Temperature:
Fabric resistance up to 850°C.
High temperature substrate.
Applications: pipe wraping, automobile and marine.

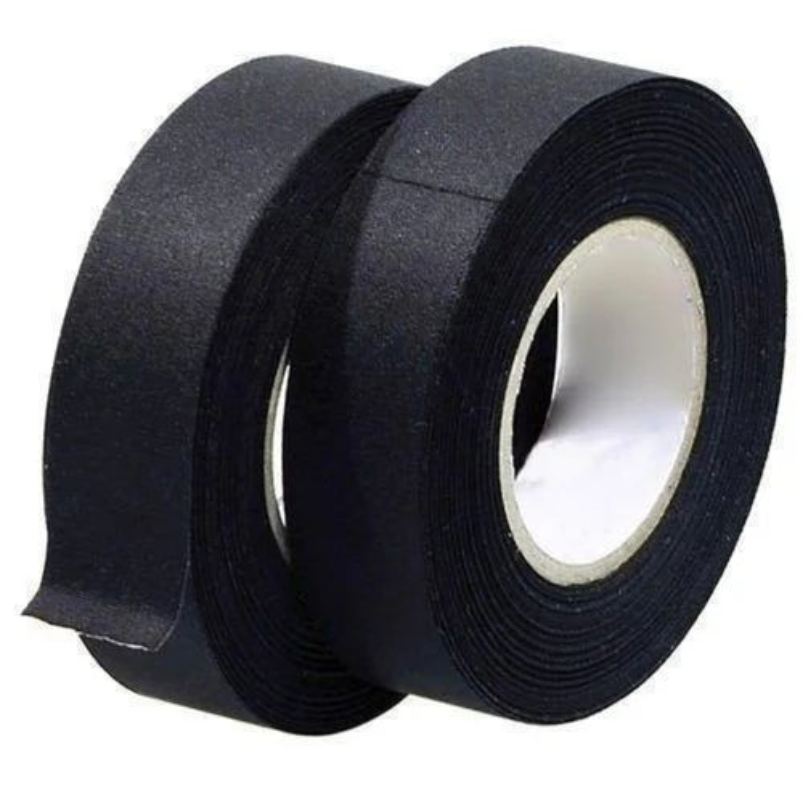

TEXTACK- POLYESTER / NYLON

Glass Fibre Tape Roll
Adhesive:
Silicone based, Acrylic based
Substrate Material:
Polyester / Nylon
Weight (gsm):
210, 350, 440
Product colour:
White/Black
Tensile strength
>25 kg/25 mm warp and weft
Temperature:
Fabric resistance up to 150°C (for PET) and 120°C (for Nylon)
Lightweight, flexible, and economical.
Applications: Cable/hose bundling, seam reinforcement, filter bag edge binding, colour coding.

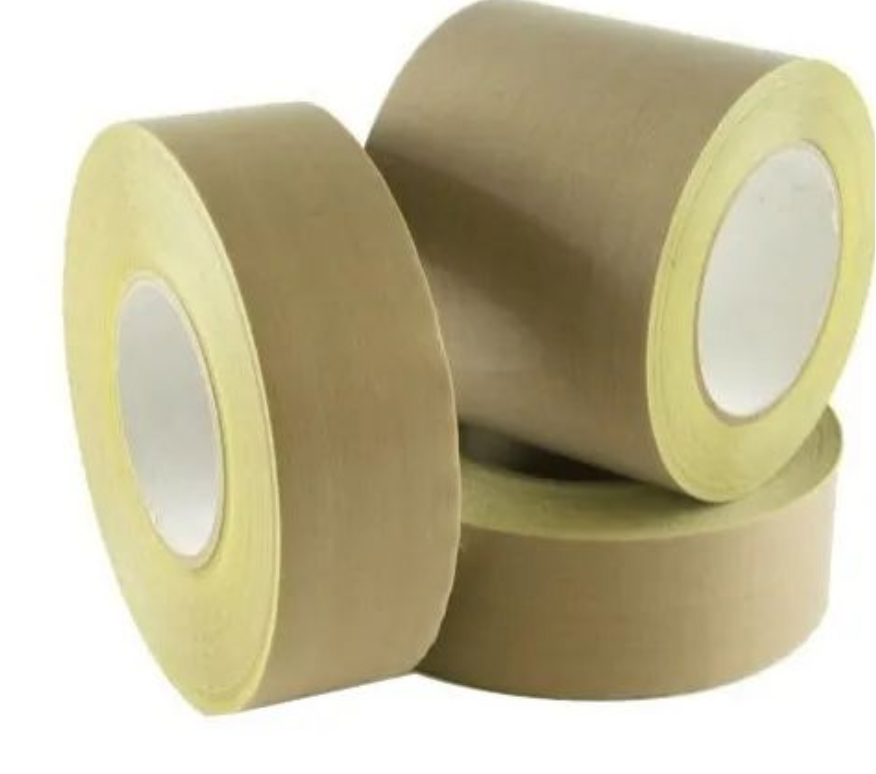

TEXTACK- PTFE COATED

Glass Fibre Tape Roll
Adhesive:
Silicone based
Substrate Material:
E-glass Fibre
Coating:
PTFE
Weight (gsm):
350, 440
Product colour:
Cream
Tensile strength:
>35 kg/25 mm warp and weft
Temperature:
Coated fabric up to 290°C
Non-stick, chemical-resistant, up to 260°C.
FDA-compliant for food packaging applications.
Applications:
Heat sealing jaws in packaging machines, surface protection, anti-stick liners, powder coating masking.

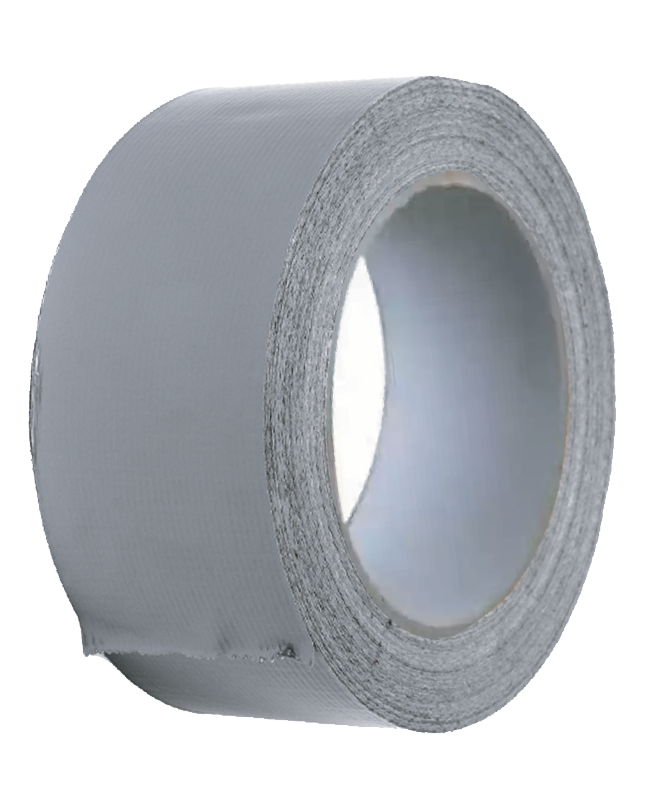

TEXTACK- SILCONE COATED FG

Glass Fibre Tape Roll
Adhesive:
Silicone based
Substrate Material:
E-glass Fibre
Coating:
Silicon Rubber
Weight (gsm):
440, 700
Product colour:
Red, brick red, blue, grey
Tensile strength
>35 kg/25 mm warp and weft .
Temperature:
Coated fabric up to 220°C | 275°C | 300°C
Moisture-repellent, flame-retardant
Flexible and anti-stick.
Applications:
Duct/flange sealing, insulation jacket wraps, protection in rubber/plastic moulding, food packaging equipment.

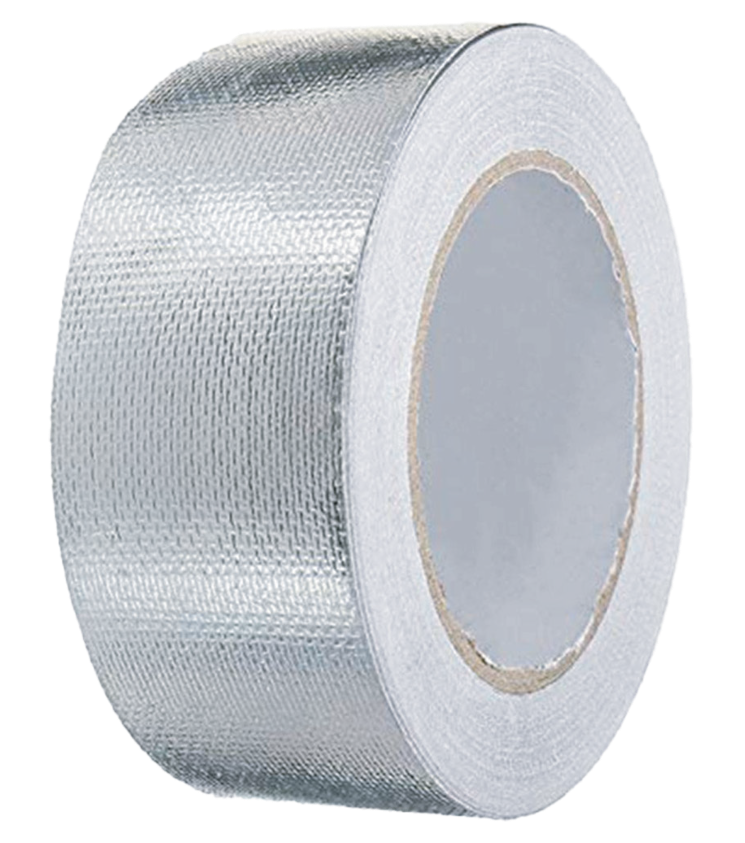

TEXTACK- ALUMINSED FG/PET

Glass Fibre Tape Roll
Adhesive:
Silicone based, thermoset based, Polyamide based
Substrate Material:
E-glass Fibre | PET
Coating:
Metalised | Aluminum foil
Weight (gsm):
440, 500
Product colour:
Reflective
Tensile strength:
>35 kg/25 mm warp and weft / >25 kg/25 mm warp and weft
Temperature:
Coated fabric up to 130°C | 300°C
Reflect radiant heat, protects against sparks and molten splash.
Moderate thermal resistance (150–300°C depending on base fabric).
Applications:
Heat shielding, protective wraps, PPE covers, expansion joint wrapping in hot zones.
