HIGH PERFORMANCE MATERIAL ASSEMBLY FOR INVISIBLE SHIELD FOR VISIBLE SAFETY

Pipe joints are vulnerable. The mechanical areas like flanges, and valves are based on pressure and gaskets to control the pressure, heat and corrosion from inside. Since the material has a life, it is a question of "when" rather than "if" it will fail.

Spray guards are jacket type covers that protect these areas from outside by providing a the second layer. The function of the second layer is to prevent spraying of the media when there is a failure, loss of heat from these joints, and corrosion from outside.

White safety shield on pipe flange

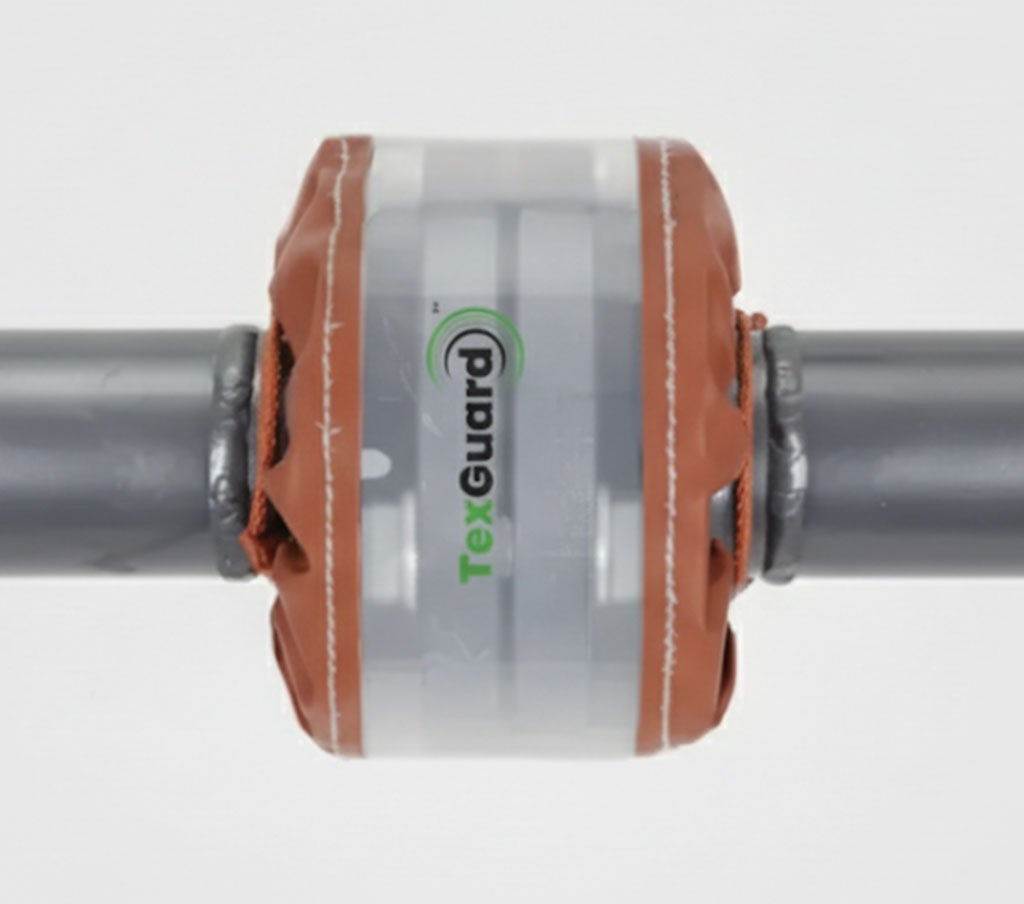

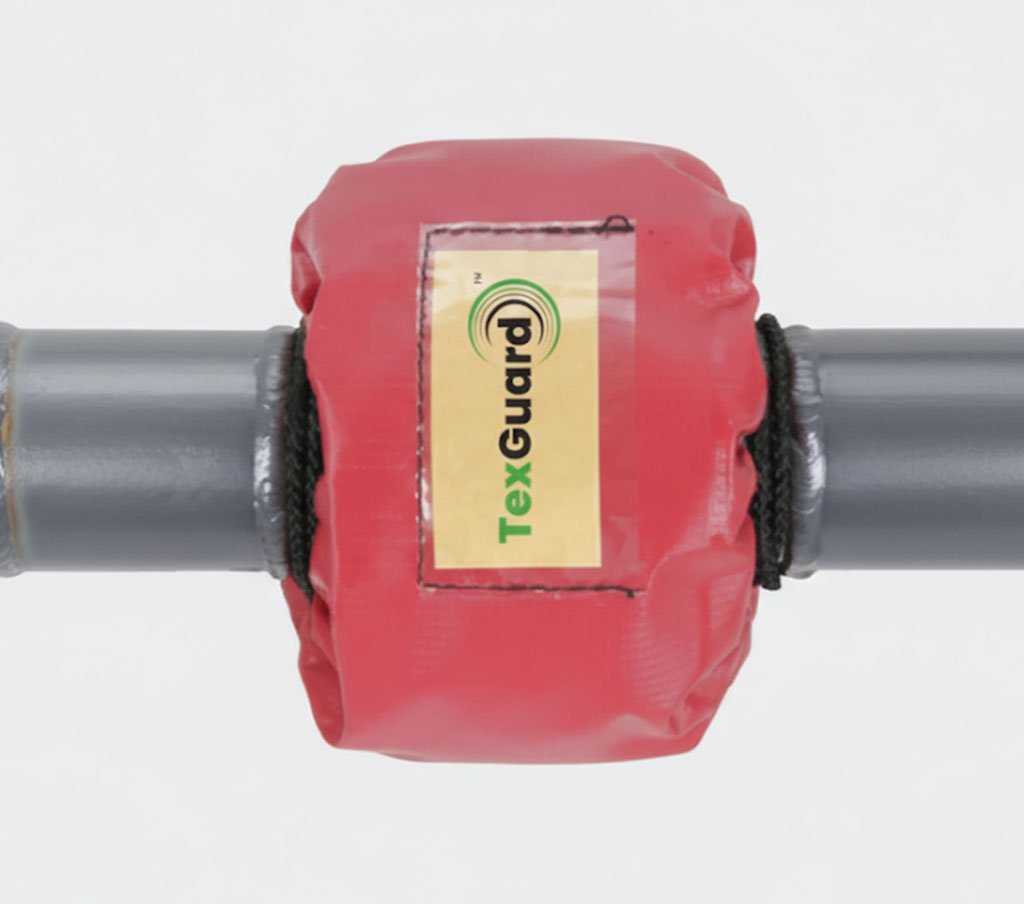

Red TexGuard safety shield on pipe

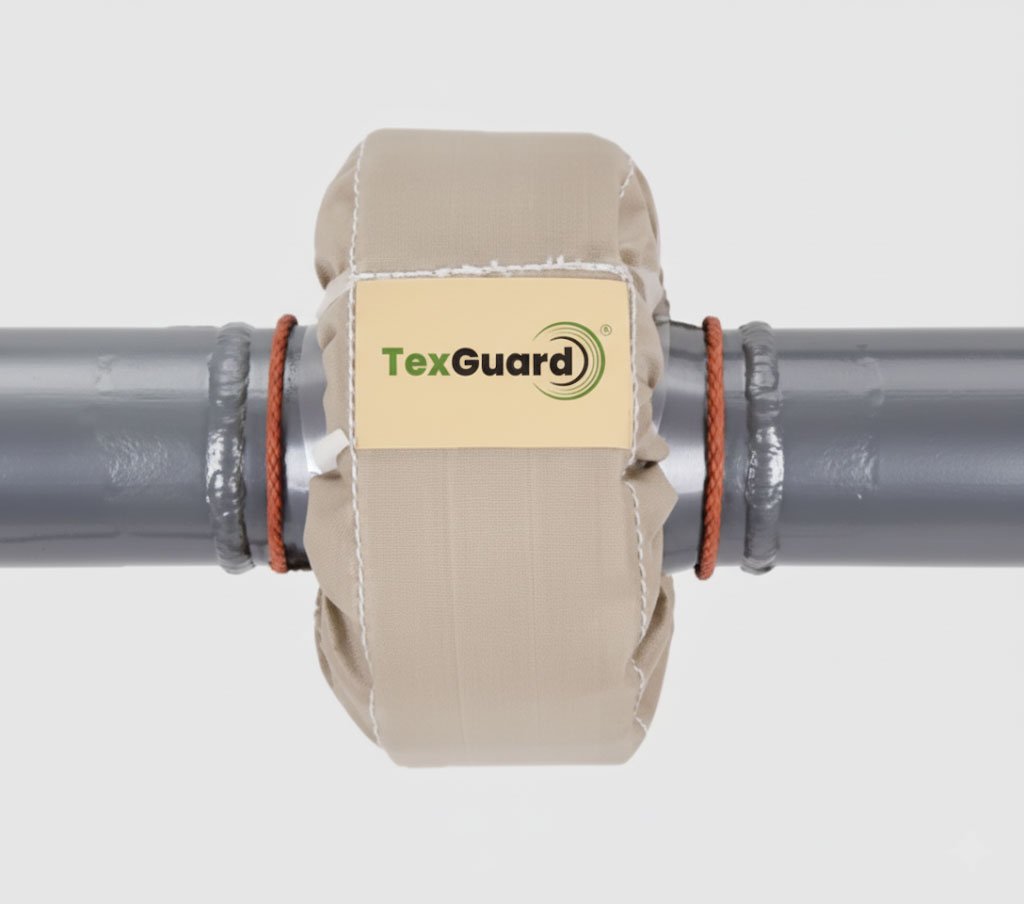

Beige safety shield installed on pipe
Two grey industrial valve safety shields

WHERE ARE FLANGE GUARDS REQUIRED?

Category Icon

ACIDS

Sulphuric acid (H₂SO₄), Hydrochloric acid (HCl), Nitric acid (HNO₃), Phosphoric acid (H₃PO₄), Hydrofluoric acid (HF), Peracetic acid (PAA), Chlorine (Cl₂), Peracetic acid (PAA).

Category Icon

ALKALI AND PER OXIDES

Caustic soda (Sodium Hydroxide - NaOH), Ammonia (NH₃), Hydrogen peroxide (H₂O₂).

Category Icon

HIGH-TEMPERATURE & STEAM APPLICATIONS

Superheated steam, Saturated steam, Boiler feed water, Condensate return lines.

Category Icon

FLAMMABLE AND COMBUSTIBLE FLUIDS

Petroleum-based fuels, Flammable gases (PPG/ LNG), Hydrocarbon solvents (Benzene, Toluene, Xylene), Ethanol & Methanol, Kerosene & Mineral Spirits, Synthetic oils & Hydraulic fluids.

Category Icon

WATER AND PROCESS FLUIDS

Potable water/ Cooling water, Brine solutions, Process effluents & Wastewater, Seawater in desalination plants, Slurry transportation (e.g., mining, chemical plants).

Category Icon

GASES AND CRYOGENIC FLUIDS

Compressed air, Natural Gas (NG), Oxygen (O₂), Hydrogen (H₂), Carbon Dioxide (CO₂), Argon (Ar), Nitrogen (N₂), Cryogenic liquids (Liquid Nitrogen, Liquid Oxygen, LNG, Liquid Helium).

Category Icon

FOOD & PHARMACEUTICAL MEDIA

Milk & Dairy Products, Fruit Juices & Concentrates, Pharmaceutical syrups & Solutions, Sanitizing solutions (Alcohol, Hydrogen Peroxide), Edible oils & Fats, Sugary syrups & Molasses, CIP (Clean-in-Place) chemicals.

Category Icon

INDUSTRIAL AND SPECIALTY FLUIDS

Pulp & Paper industry chemicals, Paints & Coatings, Adhesives & Resins, Polymer and Latex.

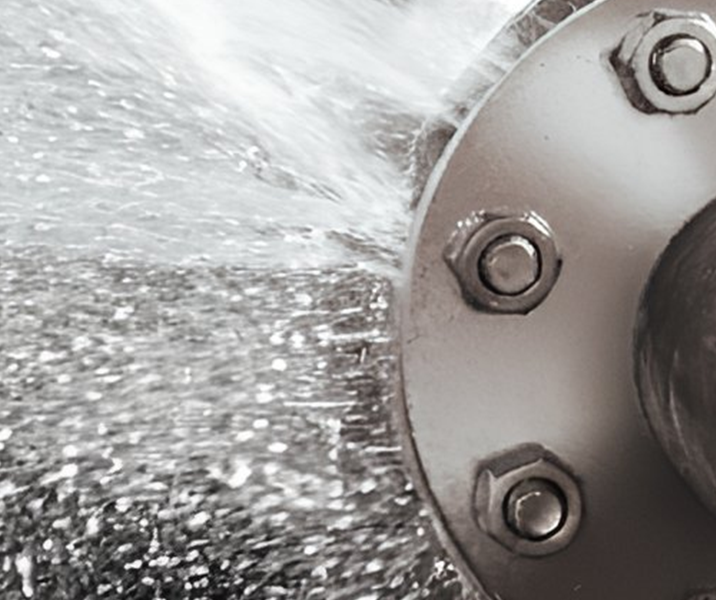

Liquid spray from bolted pipe flange

WHAT DOES IT PROTECT AGAINST?

Pipe conveyors are an essential part of any processing plant and are used to transfer media from one part to another. There are a variety of media transfers such as chemicals (acid/ alkali), steam, oil, gas etc.

Pipes are vulnerable at joints and are the weakest points, susceptible to damage. During failure, media escapes pipes and escapes as a spray or jet stream due to pressure inside. This creates a zone of chemical spillage that causes damage in the zone and is hazardous for operator to approach. Sometimes, due to such damages, more loss is seen, also leading to chemical fire.

AGAINST SPRAY

The jacket acts like a spray protector, blocks the jet stream from spilling the media in the direction of force vector. It limits the spray to a very local zone and allows the maintenance team to gain access to the repair site.

EARLY DETECTION

With option of clear PTFE and litmus integration, early signs can be detected through dripping, leakage and other kinds of discharge.

AGAINST FLAME CYCLE

Chemical Spray mixed with electrical wiring creates ignition and bursting flames. This has been the major cause of plant fire and leads to huge losses.

HAZARDOUS AREA ZONING (ATEX)

Many companies use safety shields as a part of their case to reduce zoned areas.

INSURANCE REQUIREMENTS

As a necessary risk mutation measure mentioned in most of the standard, industrial insurers now focus specifically on spray-out and oil mist prevention and others insist on safety shielding.

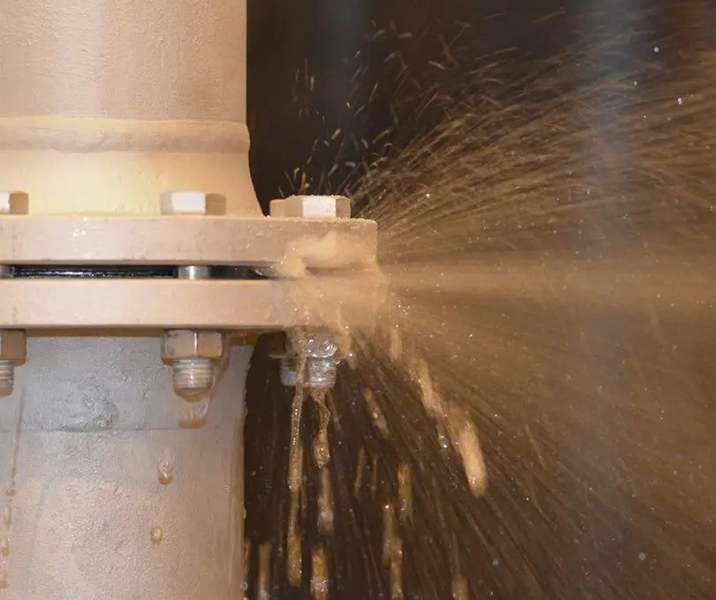

Liquid spray from bolted pipe flange

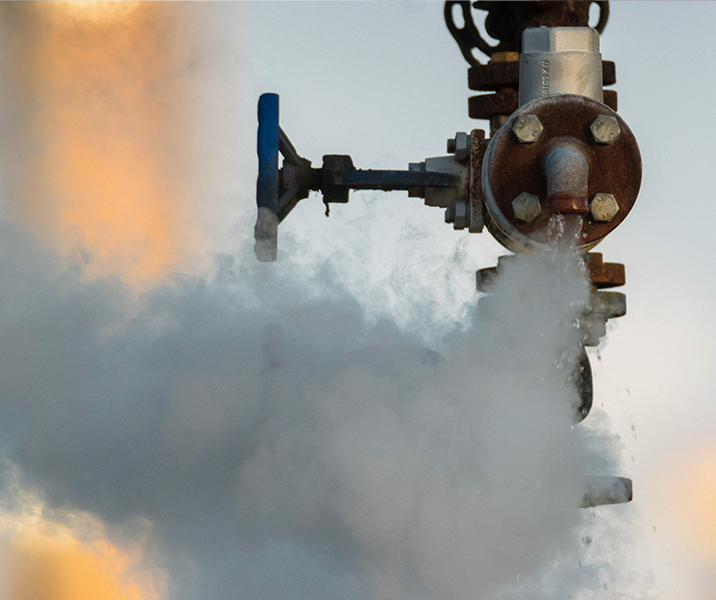

Corrosive/Acidic Gas Leakage
Liquid spray from bolted pipe flange
Liquid Alkali/Caustic Media Leakage
Thick white steam leaking from valve
Steam Leakage (Boiler Application)
Firefighter spraying water on intense flames
Petro Chemical Flammable Media Leakage Catching Fire
Full Width Banner
SECTORS

• Cement (Raw cement).

• Lime and gypsum.

• Alumina.

• Coal.

• Red power plants (Fly ash).

• Waste burning plants.

• Chemical.

• Fertilizer (Phosphates).

APPLICATIONS

• Chemical process lines (acid, caustic pipelines).

• Oil & gas pipelines.

• Steam pipelines.

• Pharmaceutical and food process piping.

• Marine & offshore facilities.

• Refineries & power plants.

• Tank farm manifolds.

• Fire-safety critical pipelines.

WHAT ARE THE INDUSTRY REGULATIONS FOR THE USE OF FLANGE GUARDS?

Several industry regulations and standards mandate or recommend the use of safety shielding and flange guards to prevent
hazardous spray-outs, protect personnel, and maintain equipment integrity. Notable among these are:

1. Occupational Safety and Health Administration
    (OSHA) 29 CFR 1910.212: Safety Shielding

This U.S. regulation requires that machine guarding shall be provided to protect the operator and other employees in the machine area from hazards. While primarily focused on machine guarding, it encompasses protective shields and barriers, which can include flange guards to prevent exposure to hazardous leaks.

2. Energy Institute (EI) Publication

Specifically addressing the oil and gas industry, E115 highlights the risk of flammable atmospheres due to leaks and recommends the use of porous spray guards around flanges and potential leak points. These guards cause leaking material to coalesce back into a liquid, reducing hazardous conditions.

3. Safety of Life at Sea (SOLAS): Marine & Shipboard
    Firesafety

In the marine industry, SOLAS regulations mandate shielding or screening of oil spray within vessel engine rooms to prevent fires and explosions resulting from oil leaks.

4. Dangerous Substances and Explosive Atmospheres
    Regulations: Safe Practices in the Petroleum Industry

Applicable in Europe, DSEAR requires employers to assess and eliminate or reduce risks from dangerous substances. Safety shields are recommended as a control measure to prevent spray and mist, thereby aiding in hazardous area zoning and compliance.

5. American Petroleum Institute (API)

API provides guidelines on safe practices in the petroleum industry, including recommendations for the use of protective devices like flange guards to prevent hazardous releases.

6. ATEX (Atmosphères Explosibles, Europe) – Explosive
    Atmosphere Safety

There are a variety of other reasons to fit shields, including pollution control, general site cleanliness, and protection of nearby electrical equipment.

7. ISO Guidelines

• ISO 9001:2015 – Quality Management: Ensures that Spray Guards are manufactured with consistent quality, traceability, and performance through a risk-based, process-driven approach.

• ISO 14001:2015 – Environmental Management: Supports leak prevention and chemical containment to minimise environmental impact and align with sustainable industrial practices.

• ISO 45001:2018 – Occupational Health & Safety: Enhances workplace safety by reducing the risk of spray-out incidents, thereby protecting personnel from hazardous fluid exposure.

8. American Petroleum Institute 570: Piping Inspection
    Code

Reinforces the need for protective measures like Spray Guards to control leaks and spray-outs identified during piping systems inspections and risk assessments.

9. Others

Other local / state / country / industry norms pertaining to quality, safety and environment protection.



Logo 1
Logo 2
Logo 3
Logo 4
Logo 5
Logo 6
Logo 7
Logo 8

WHERE ARE THESE GUARDS INSTALLED?

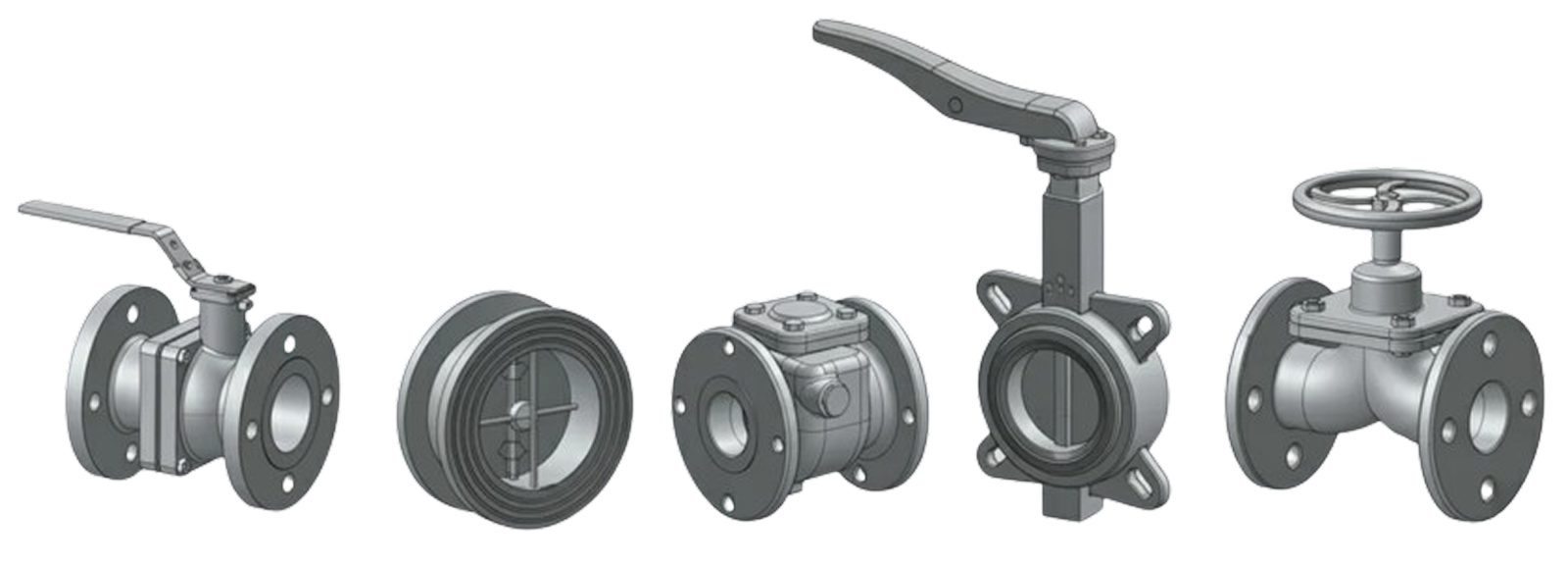

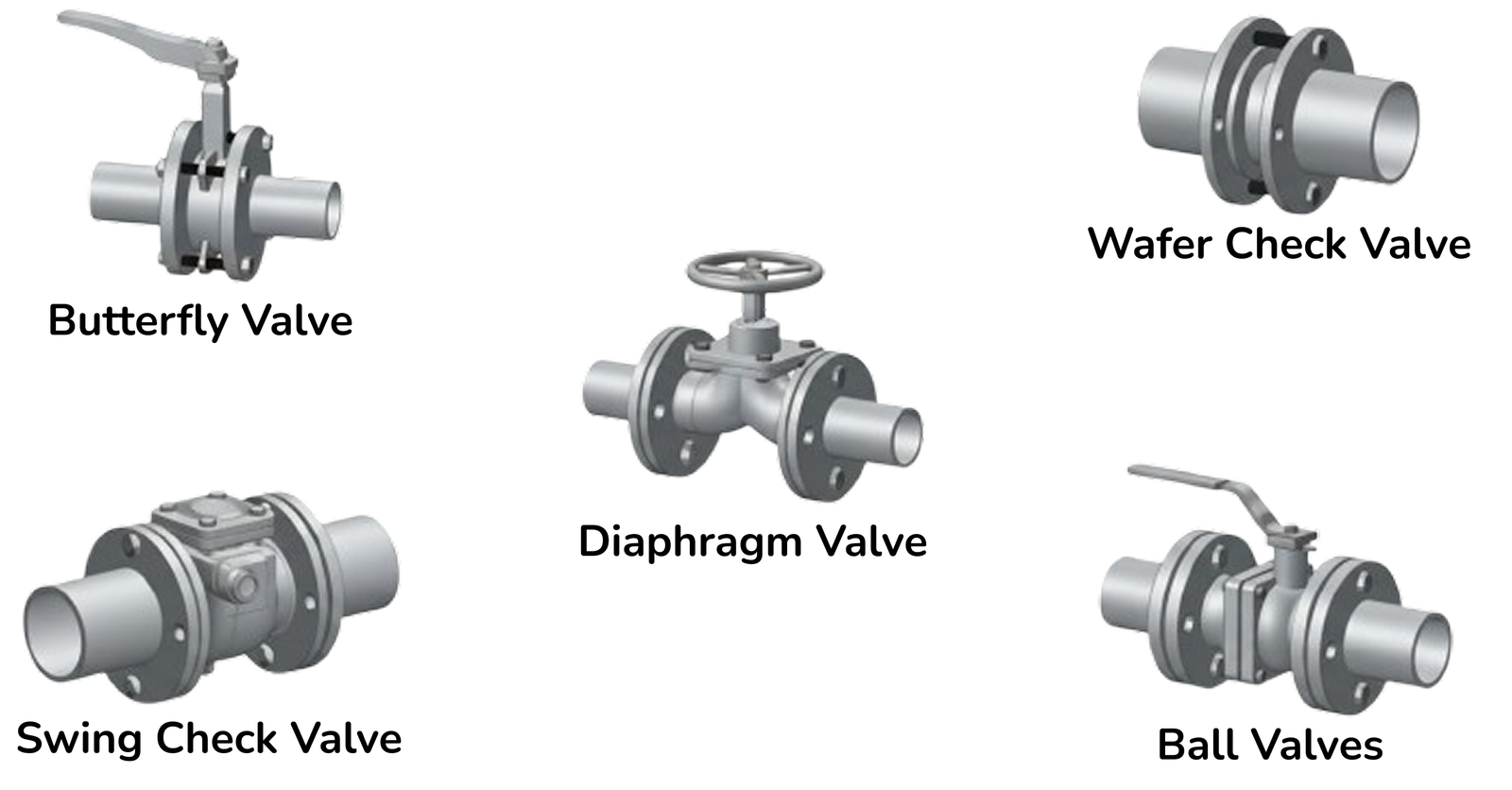

Shields To Fit Valves

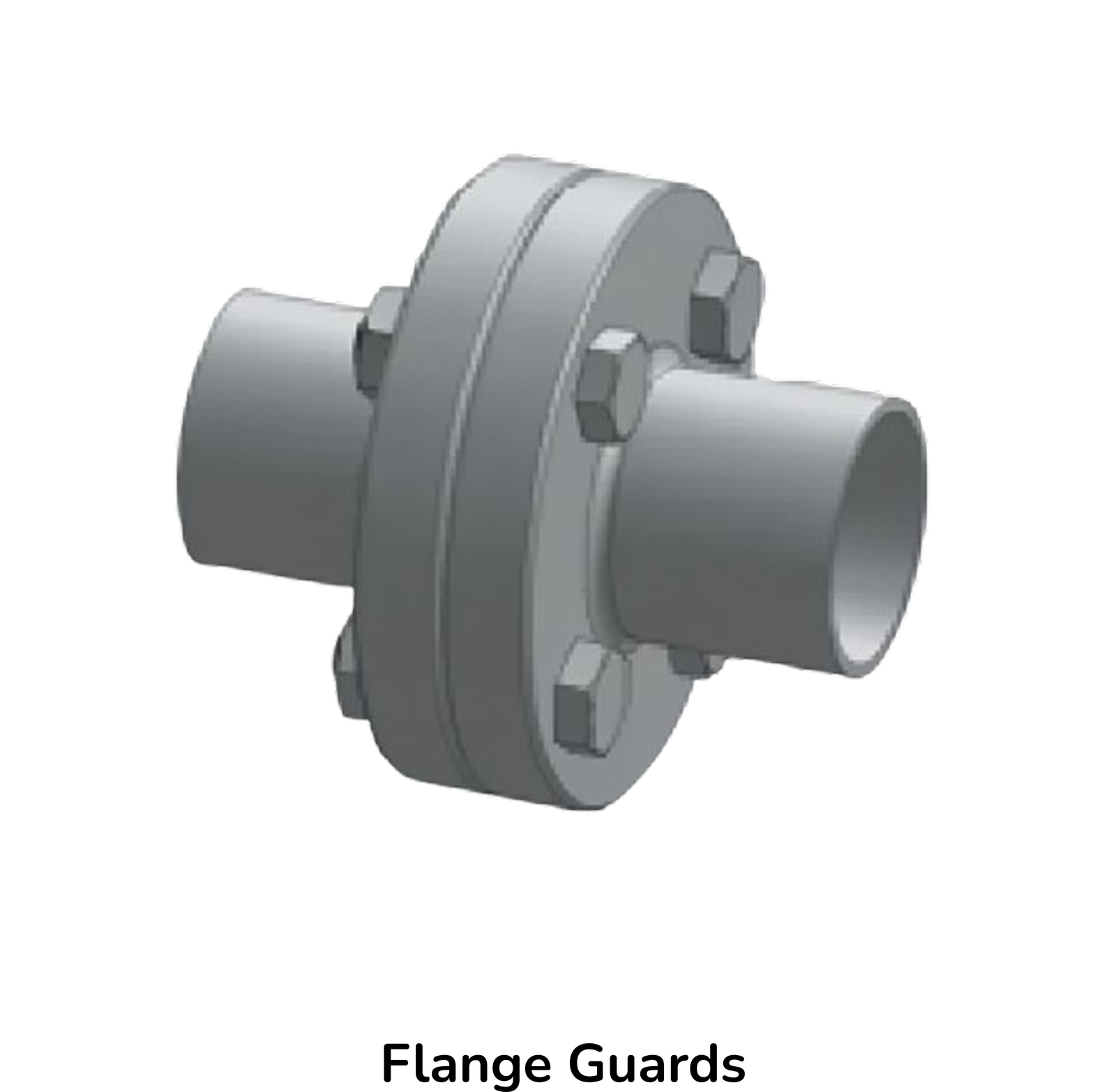

Flange Guards

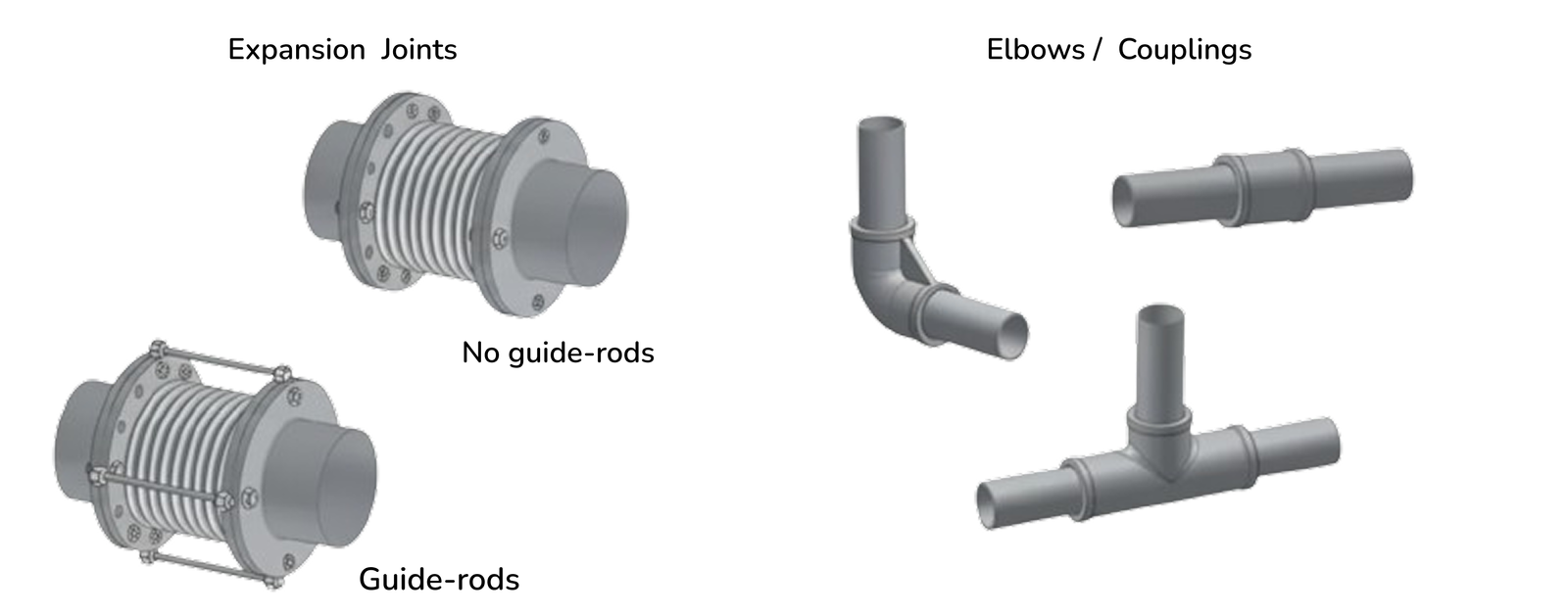

Shields To Fit Joints And Couplings

2-Piece Shield

Shields To Fit Valves

Image of Industrail Fitting Valves
Image of Industrail Fitting Valves

MODELS FOR VARIOUS USE CASES

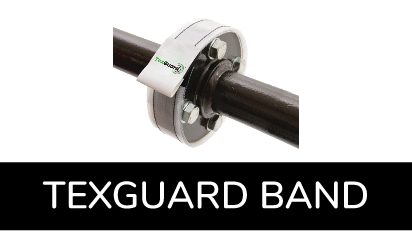

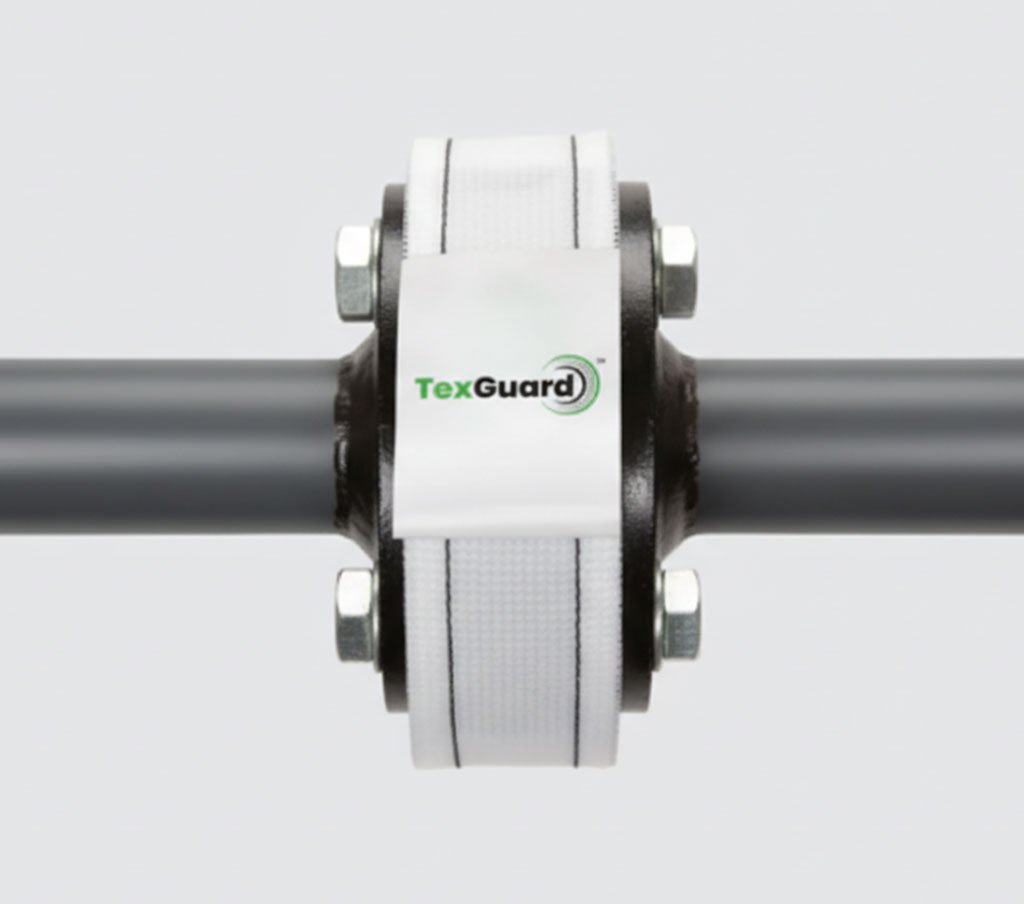

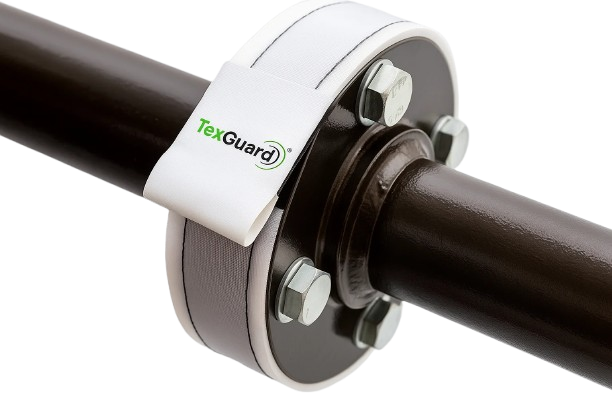

Texguard Band
Texguard Band

Ultimate chemical resistance with clear ECTFE and durable PTFE layers.

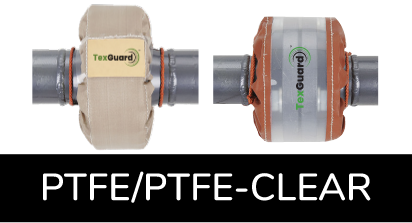

Texguard PTFE Shield
Texguard PTFE Shield

Clear, multi-layered protection with unparalleled chemical resistance.

Texguard PTFE _Clear Shield
Texguard PTFE–Clear Shield

Transparent, multi-layered defense with unparalleled chemical resistance.

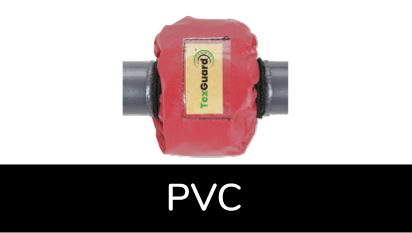

Texguard PVC Shield
Texguard PVC Shield

Clear, robust protection with exceptional chemical resistance.

Centrifuge Apparatus
Centrifuge Apparatus

Durable, chemical-resistant protection for demanding industrial applications.

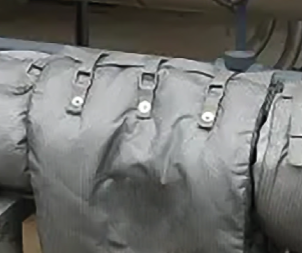

Conveyor Lines
Conveyor Lines

Tough, chemical-resistant protection built for industrial performance.

Liquid Storage Tank Jackets
Liquid Storage Tank Jackets

Durable, chemical-resistant protection for temperature and leak control.

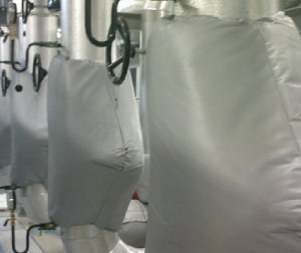

Process Management System
Process Management System

Robust, chemical-resistant performance for industrial applications.

Tank Jackets
Tank Jackets

Tough, chemical-resistant protection for industrial tanks.

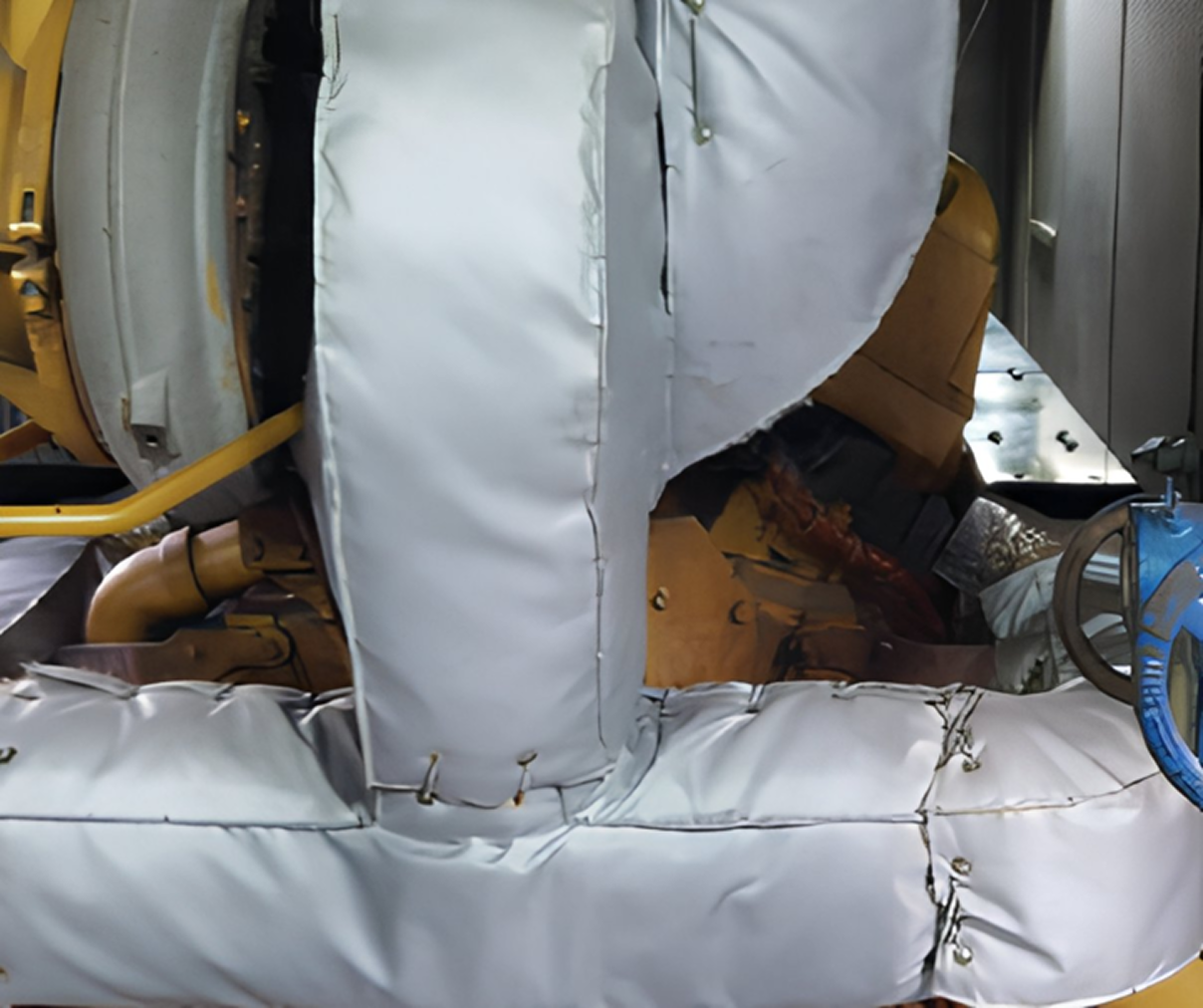

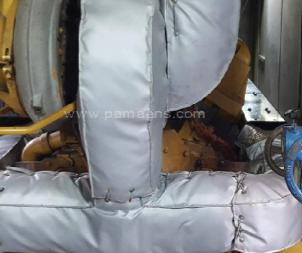

Centrifugal Fan Cover
Cantrifugal Fan Cover

Durable, chemical-resistant protection for industrial fans.

HOW TO SELECT SPRAY GUARDS FOR YOUR APPLICATION?

TEXGUARD BAND PTFE PVC
High pressure Excellent Good -
Temperature Good Excellent Moderate
Chemical resistance Excellent Excellent Moderate
Standard fittings Excellent Excellent Excellent
Non standard fittings - Excellent Excellent
Acid Excellent
(Except chlorine
applications)		 Excellent -
Alkali Excellent Excellent Good
High pressure steam / oil Excellent - -
Low pressure steam / oil Excellent Excellent Excellent
Fuels (liquid/ gases) Excellent Excellent -

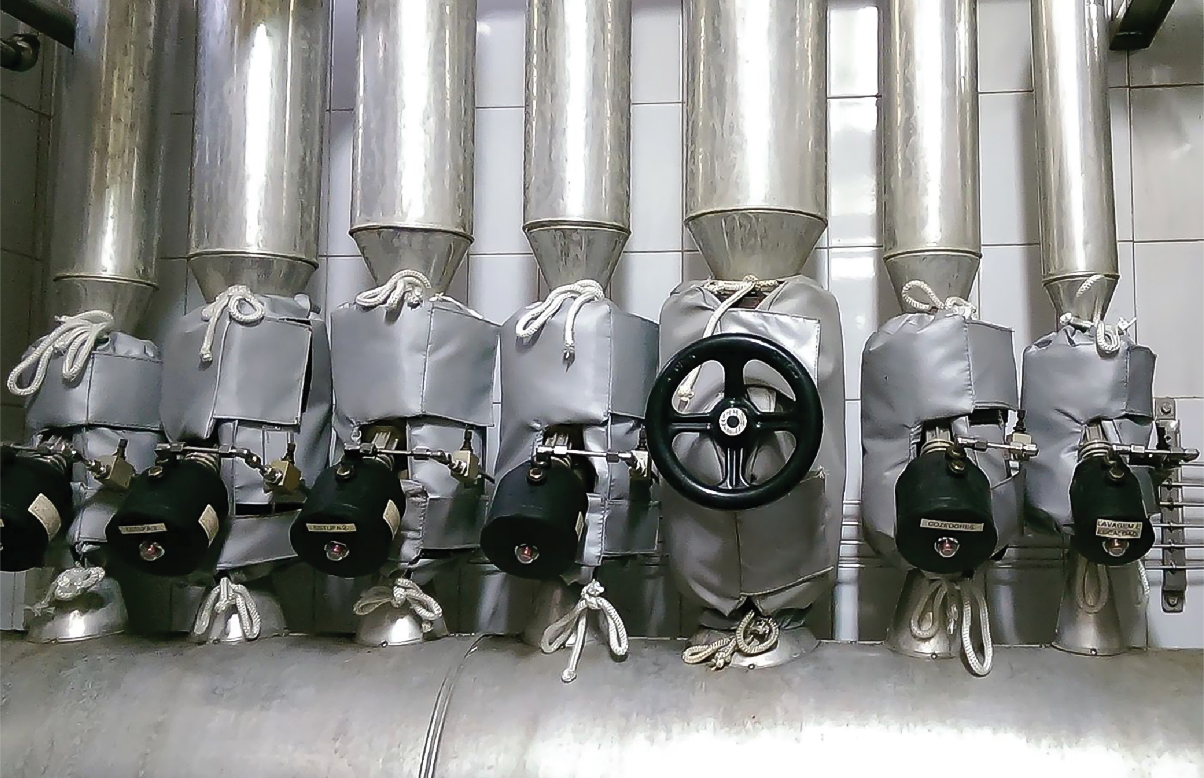

Grey insulated jackets on industrial valves

Need help with a problem niche?

We will engineer a solution for you.

Let's talk

Obtain our brochure for specifications. Arrow
