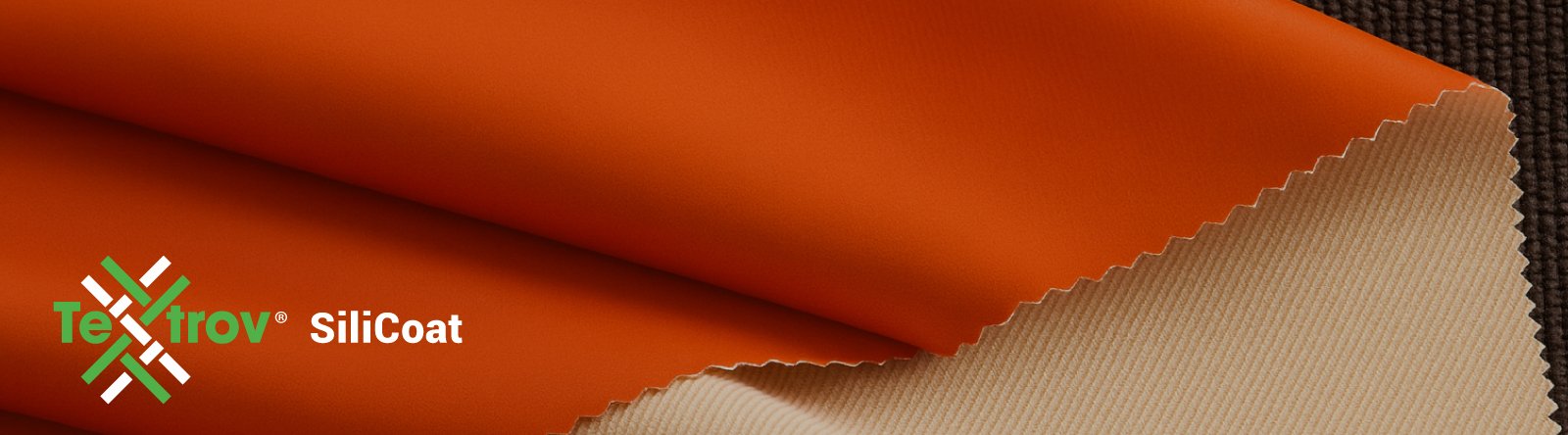

RESILIENCE, FLEXIBILITY, REINVENTED WITH SILICONE

Textrov® Silicoat by Supertech Fabrics offers high-performance silicone coated fabrics engineered for fire resistance, thermal shielding, and mechanical endurance. Developed for use in infrastructure, mobility, energy, aerospace, and industrial zones, silicoat fabrics deliver low smoke, long service life, and certified safety where it matters most.

WHY CHOOSE TEXTROV® SILICOAT?

THERMAL RESISTANCE AND U VALUE
  • High-temperature resistance: Continuous exposure to 250°C (482°F), peak up to 300°C (572°F).
  • Low-temperature flexibility: Remains pliable down to -60°C (-76°F).
  • U-Value of 1.5–2.5 W/M2K. Special formulations can enhance these properties.
FIRE RESISTANCE
  • EN 45545-2 (Railway Applications).
  • ASTM E84 (Flame Spread Test).
  • FMVSS 302 (Automotive Fire Resistance).
  • EN 13501-1 (European Fire Classification).
  • NFPA 701 (Standard Methods of Fire Tests for Textiles and Films).
  • BS 476 Part 7 (Surface Spread of Flame Test – UK).
  • UL 94 (Flammability Test for Plastics & Polymers).
LOW SMOKE AND LOW TOXICITY
  • ASTM E662 (Smoke Density Test).
  • EN 45545-2 (Railway Smoke & Toxicity Standard).
  • NFPA 701 (Textile Smoke & Flammability Standard).
  • ISO 5659-2 (Smoke Density & Optical Obstruction Test).
  • IMO FTP Code 2010 (Marine Fire Safety).

    • Non-Halogenated Composition – No chlorine, fluorine, or bromine, reducing toxic fume emissions.

CHEMICAL & SOLVENT RESISTANCE
  • Resists corrosion, acids, alkalis, fuels and industrial solvents.
  • Does not degrade when exposed to harsh chemicals and oils.
SUB-ZERO TEMPERATURE FLEXIBILITY
  • Remains flexible at extreme sub-zero temperatures (-60°C to -76°C).
  • Maintains elasticity & mechanical strength, ensuring long-lasting performance in harsh conditions.
VIBRATION AND IMPACT DAMPENING
  • Flexibility makes the material extremely good for flange-to-flange vibration arresting.
  • Noise-dampening acoustic insulation.
  • Impact-resistant.

TECHNICAL PERFORMANCE DATAPOINTS

Silicone comes natural silica and presents a range of properties.

Property Typical Capability
Temperature Resistance Up to 250°C standard, up to 1,100°C with silica substrate
Flame Retardancy EN 13501-1, EN 45545-2, NFPA 701, BS 476 compliant
Smoke & Toxicity Low smoke emission options (EN 45545 HL3, BS 6853)
Weather Resistance Waterproof, UV & mold resistant
Mechanical Strength High tear & tensile values; suitable for folding/stretching
Coating Options Single-side, dual-side, flame-barrier, aluminium-laminated

MARKETS & APPLICATIONS

Cement Factory

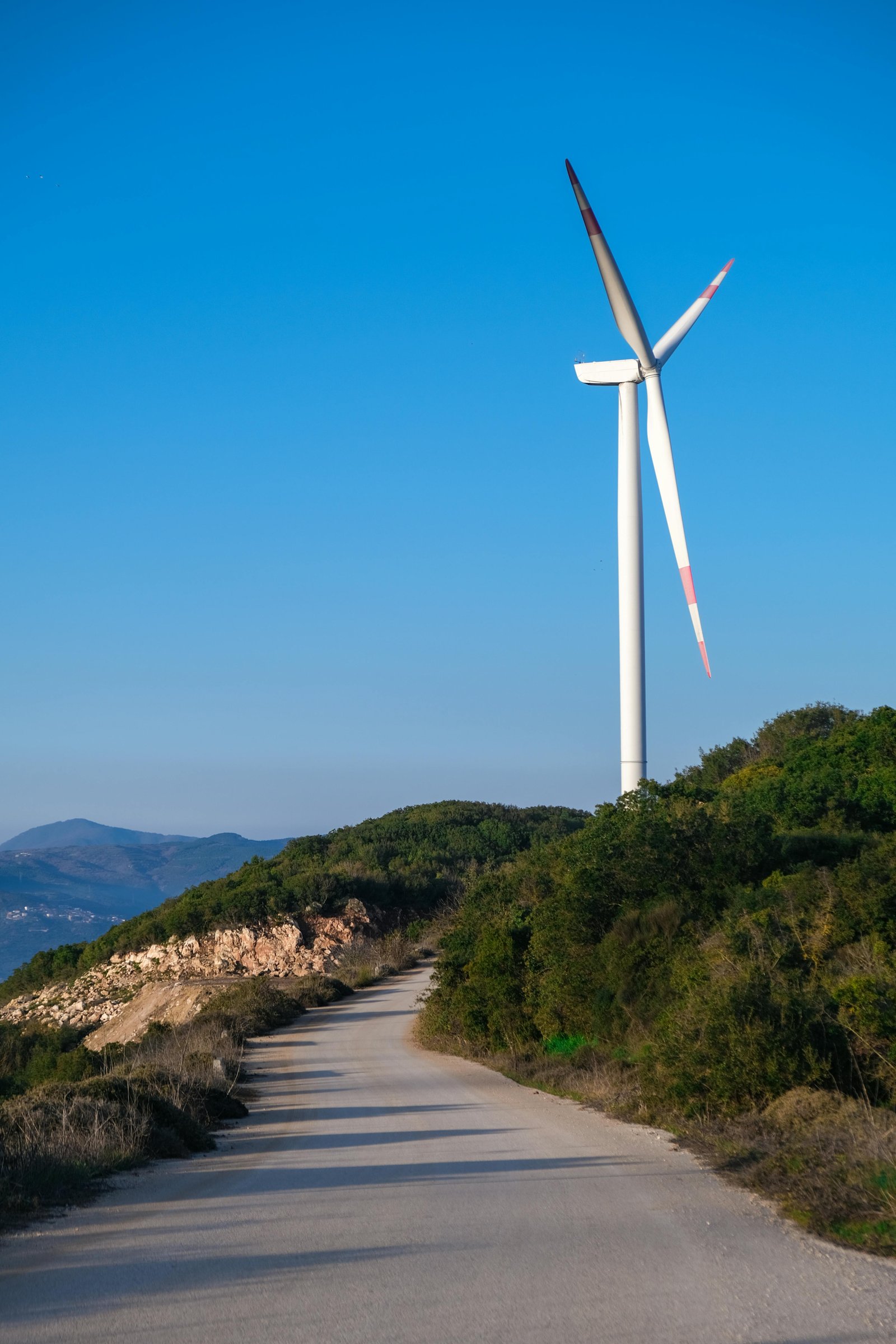

Renewable Energy

• Wind turbine blade coating
• Solar panel protection film


Steel Ferro Alloy

Construction & Modular Buildings

• Fire-rated partitions and barriers in prefabricated structures
• Roofing underlays and facade membranes with UV and flame resistance
• Firestop wraps for pipe/duct penetrations in high-rise buildings


Paper and Pulp

Public Infrastructure & Smart Cities

• Fire curtain systems in metro tunnels, malls, elevators (EN 45545-2, EN 1634)

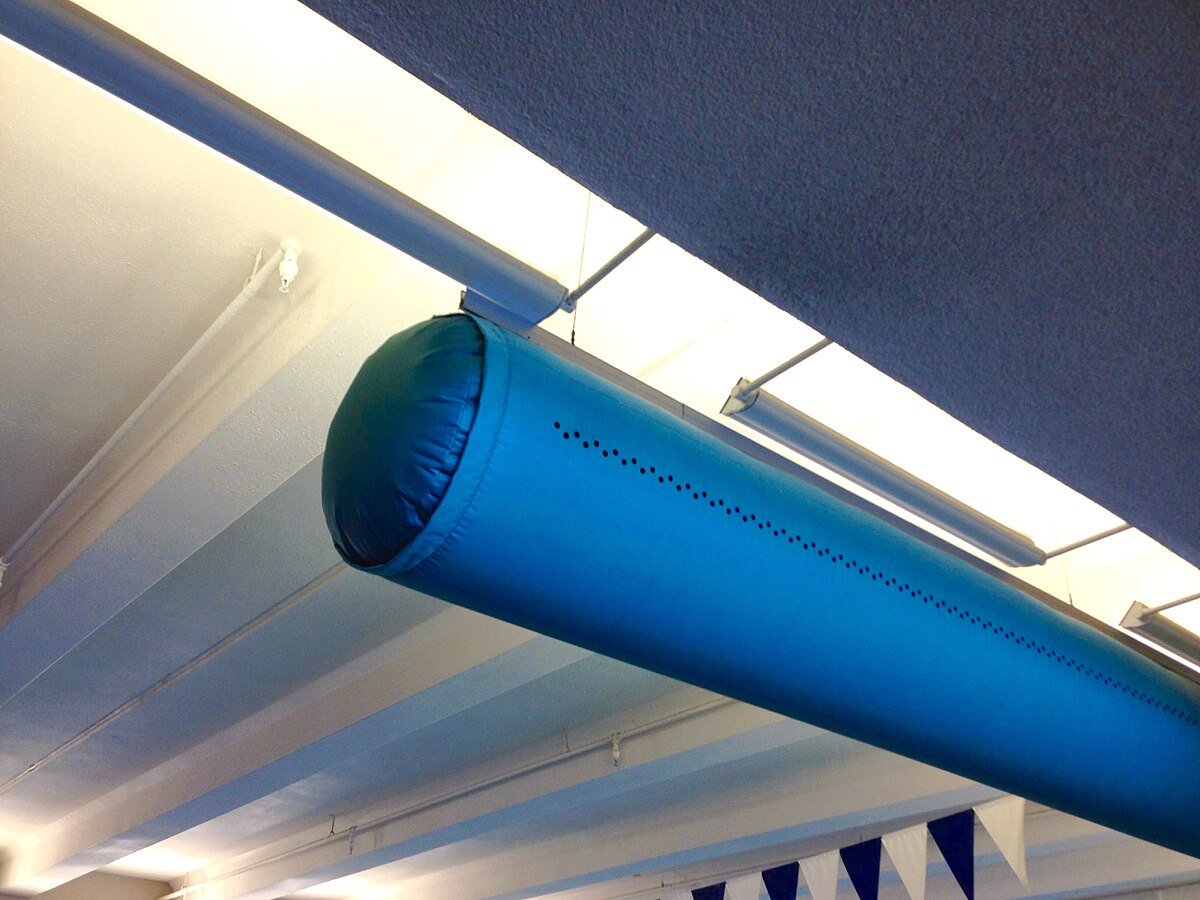

• HVAC flexible ducts and under-seat fire liners (low smoke, oil/steam resistant)


Paper and Pulp

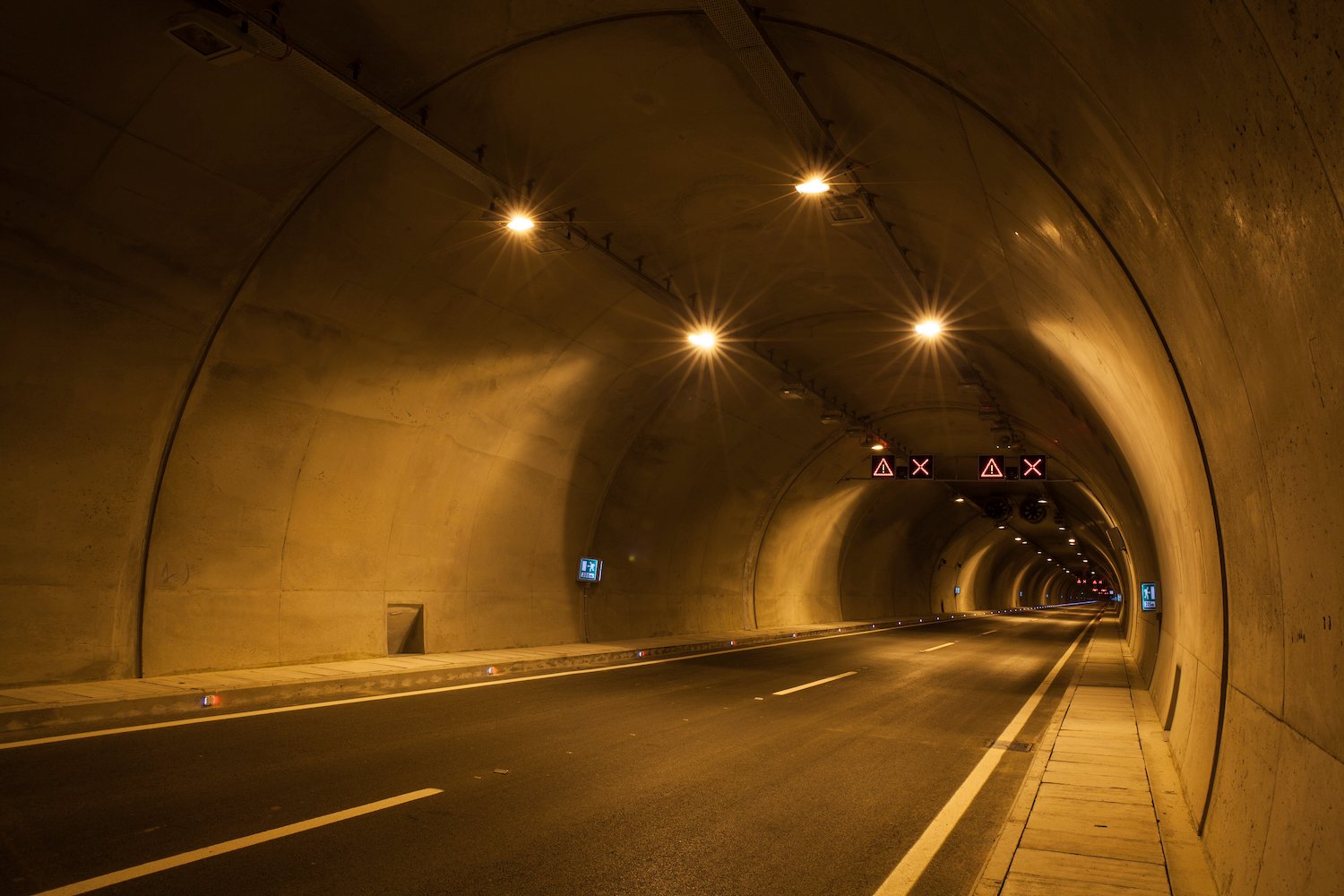

Mining & Tunnels

• Fire-resistant ventilation ducting in underground tunnels
• Protective curtains at mine entrances and blast zones
• Thermal and flame barriers around heavy equipment


Paper and Pulp

Medical & Cleanroom Environments

• Low-smoke HVAC barriers and filters in hospitals and labs
• Flexible containment curtains for controlled environments
• Sterilization-safe insulation wraps in pharma process equipment


Paper and Pulp

Industrial Safety & Welding Zones

• Weld spark shields and curtain walls for robotic or manual hot-work bays
• Blast-proof barrier curtains for ammo rooms, furnaces, battery zones


Paper and Pulp

Marine & Offshore Platforms

• Fire-resistant blankets and barriers for engine rooms and accommodation areas (IMO FTP, SOLAS compliant)
• Pipe and cable transit seals for waterproof and fire-rated bulkheads
• Thermal insulation wraps for exhausts and hot zones in offshore rigs


Paper and Pulp

Power Generation & Utilities

• Valve, pump, and flange covers in outdoor and power plant environments
• Reflective thermal wraps in glass kilns and heat transfer zones (Tex Sili-Al)


Paper and Pulp

Aerospace & Defense

• APU thermal wraps, engine shields, and fire blankets (FAR 25.853 compliant)
• Blast-proof barrier curtains for ammo rooms, furnaces, battery zones


Paper and Pulp

Railways & Metro Systems

• Fire curtain systems in metro tunnels, malls, elevators (EN 45545-2, EN 1634)
• HVAC flexible ducts and under-seat fire liners (low smoke, oil/steam resistant)


Paper and Pulp

Oil & Gas / Petrochemical Plants

• Flange spray shields and valve covers for preventing oil and chemical spray hazards
• Expansion joint covers for pipelines and ducts in refineries
• Blast and fire barriers around storage tanks and compressor stations


Paper and Pulp

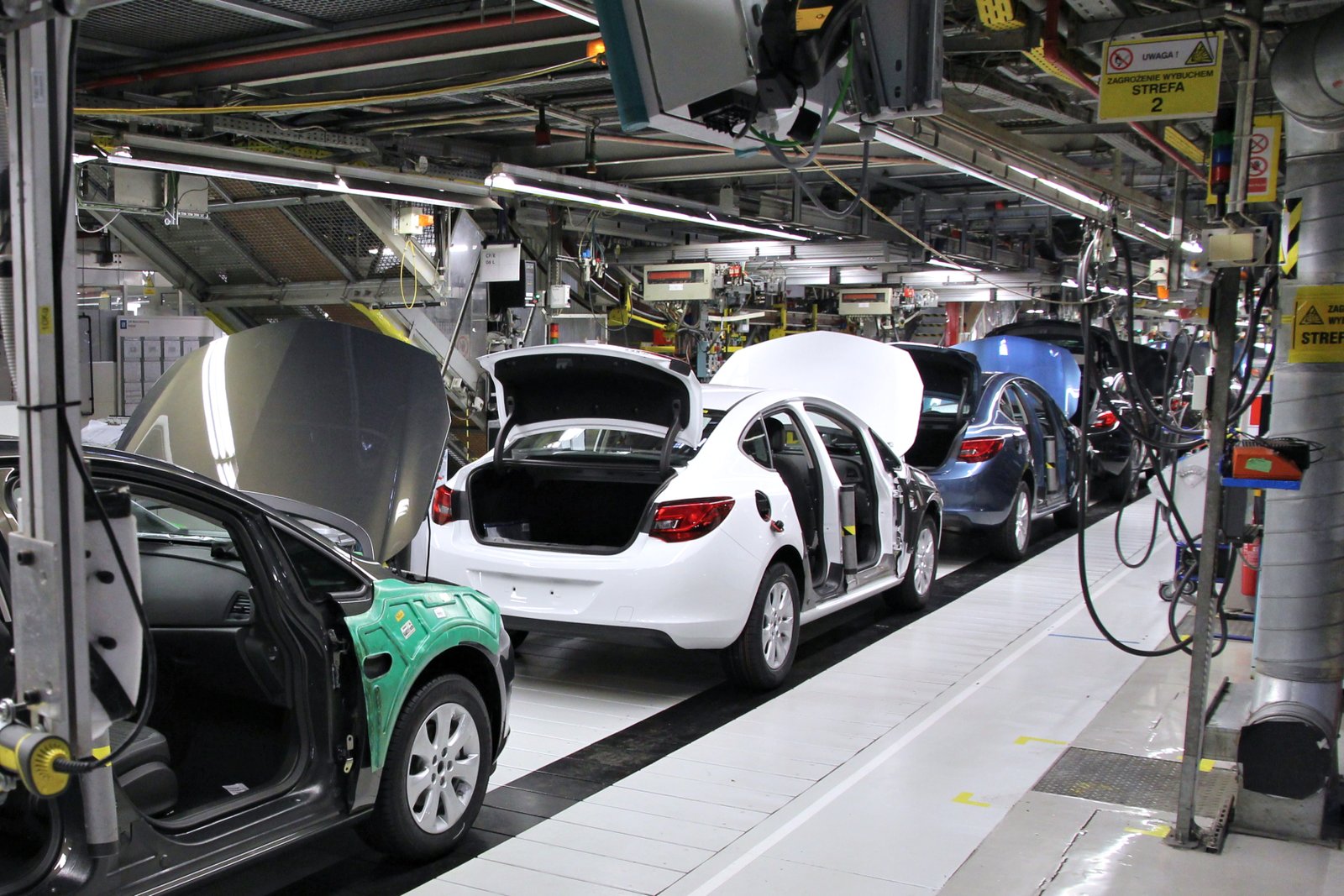

Automotive & Commercial Vehicles

• Muffler heat wraps and catalytic converter insulation (grime, oil, and heat safe)


Paper and Pulp

Public Infrastructure & Smart Cities done

• Fire curtain systems in metro tunnels, malls, elevators (EN 45545-2, EN 1634)
• HVAC flexible ducts and under-seat fire liners (low smoke, oil/steam resistant)


SUBSTRATE PROPERTIES COMBINATIONS

Product Code Base Fabric Temp Resistance Coating Type Key Features
Tex Sili-G Glass fibre Up to 250°C Single/Double Side Silicone Coated General-purpose insulation & wraps
Tex Sili-FR Glass fibre + FR Up to 250°C Flame Retardant, Tear Resistant Fire curtain systems, HVAC partitioning
Tex Sili-Ar Aramid Up to 260°C High Strength, Fire Resistant Tunnel, engine bay, and high-tensile use cases
Tex Sili-X Silica/Hi Silica Up to 1,100°C Flame Barrier, Low Smoke/Low Toxicity Blast curtains, kiln zones, metro fire seals
Tex Sili-Ny Nylon Up to 180°C Flexible Silicone Coating Lightweight, abrasion-resistant covers and equipment protection
Tex Sili-P Polyester Up to 200°C Single/Double Side Silicone Coated Economical choice for ducting, flexible insulation wraps, and temporary barriers

ENGINEERED TO MEET THE HIGHEST STANDARDS

Textrov Silicoat fabrics are developed to align with application-specific regulatory needs, with proven compliance across EN 13501-1, EN 45545-2, BS 6853, NFPA 701, ASTM E84, FAR 25.853, ISO 3795, FMVSS 302, EN 1634-1, UL 94 V-0, and IMO FTP/SOLAS. Performance characteristics can be tailored to meet project-specific fire, smoke, and toxicity criteria. Test reports and third-party certification support available upon request.

Image 1 Image 2 Image 3 Image 4 Image 5 Image 5
Image 5 Image 5 Image 5 Image 5 Image 5

SUPPORT AND CUSTOM ENGINEERING FOR APPLICATION USE

Supertech Fabrics Textrov SiliCoat division works closely with EPCs, OEMs, and infrastructure teams to deliver solutions engineered for real-world performance:
