Advanced PTFE-Coated Specialty Materials

WHERE CHEMICAL RESISTANCE MEETS THERMAL ENDURANCE

Textrov FlouroCoat by Supertech Fabrics is a specialized range of PTFE-coated technical textiles engineered for high-demand industrial environments. Whether you’re dealing with
corrosive gases, extreme heat, or sticky materials — FlouroCoat delivers unmatched reliability, cleanliness, and longevity.

Advantages of Flouro Coating

Superior Chemical resistance.
Chemical inertness to HF, HCl, SO₂, Cl₂, etc.
Except heat and flame resistance.
Non-stick and low friction surface.
Excellent weather and UV resistance.
Waterproof and hydrophobic properties.
Anti-microbial and mold resistance.
High tensile and tear strength.
Non-toxic, non-VOC.
Chemically inert for medical and food applications.
Electrical insulation properties.
Low maintenance and long service life.
High performance in extreme conditions.

WHY CHOOSE FLOUROCOAT?

Use of diverse flouro chemicals and formulation for diverse application.
Choice of primary function from acid-resistance, anti drip, cleanroom-safe, and food-grade options.
Use of high quality Flouro chemical resin.
Norms specific formulations.

TYPES OF FLOUROCOAT APPLICATIONS

At Textrov Fluorocoat, handling of flouro polymer using various techniques that deliver
different products.

Flouro impregnation coating of fibres.
Flouro on side coating of surface.
Flouro membrane (ultra/nano porous structure).
Flouro ePTFE membrane (mico porous structure).
Flouro mixed formulation with other chemistries.

TECHNICAL PERFORMANCE DATAPOINTS

Flouro chemicals versilality best explored in combination with various substrates and application case. Responsible use of flouro chemicals.

Parameter	Typical Values / Description
Operating Temperature	–150°C to +260°C (Custom: up to 290°C)
Chemical Resistance	Class A – Resistant to HF, HCl, SO2; Tested with waste chemical agents (400x500 in cm)
Tensile Strength (0°C / 30°C)	Up to 25,000 N/5cm (depending on base fabric)
Tear Strength	> 300 N (Higher in aramid-based fabrics)
Dielectric Strength	> 10 kV
Surface Resistivity (ESD)	10⁴–10⁹ Ω on antistatic variants
Moisture Resistance	< –9.01% absorption (highly hydrophobic)
Abrasion Resistance (Taber)	Excellent (variant-specific, typically Taber loss < 100 mg / 1000 cycles)
Friction Coefficient	0.08–0.15 (non-stick surface)
Alkali Resistance	Excellent (NaOH, KOH exposure safe)
UV Resistance	High – stable in outdoor / high-exposure conditions
Hydrophobicity	Water contact angle >110° (Cleanroom & food-grade variants)
Permeability	< 1% vapor/gas/moisture penetration
Thickness Range	0.08 mm – 1.2 mm
Weight (GSM)	100–1000 gsm (depending on construction)
Coating Types	Single-side, Dual-side, Mesh-reinforced, Multi-layer
Color Options	Brown, Grey, White, Black (Custom colors on request)
Certifications	FDA 21 CFR 177.1550, EC 10/2011, RoHS, REACH, ISO 14644, USP Class VI, UL 94, ASTM E84, EN 45545 (variant-specific)

MARKETS & APPLICATIONS

Versitality of Flouro chemistries in market applications.

Defence

● Thermal insulation covers and blankets
● Conveyor belts for heat-sealing
● Drying belts and release sheets

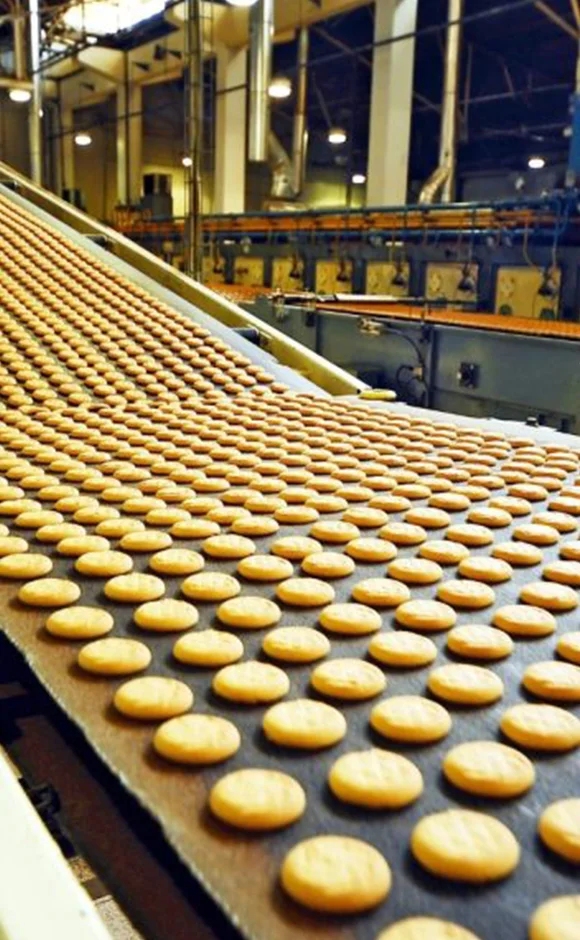

Food processing

● Conveyor belts
● Baking sheets and mats
● Food wrapping

Renewable energy

● Wind turbine blade coating
● Solar panel protection film

Medical and Pharmaceutical

● Sterilization and medical packing
● Prosthetics and orthotics

Industrial

• Thermal insulation covers and blankets
● Conveyor belts for heat-sealing
● Drying belts and release sheets

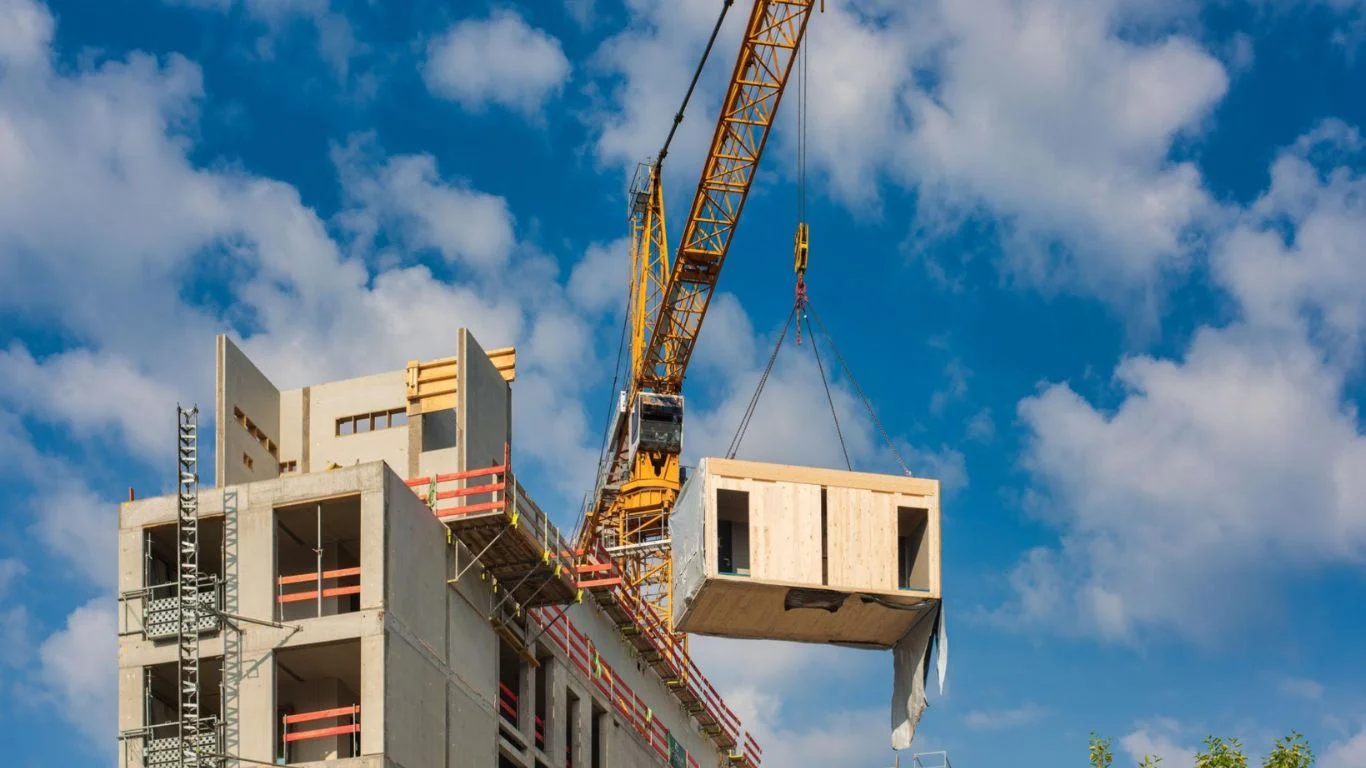

Architecture and construction

● Tensile Membrane Structures
● Industrial Curtains & Partitions
● Facade membrane

Aerospace and automobile

● Aircraft interior panels
● Thermal shields and chemical-resistant covers
● Airbag components
● Process equipment

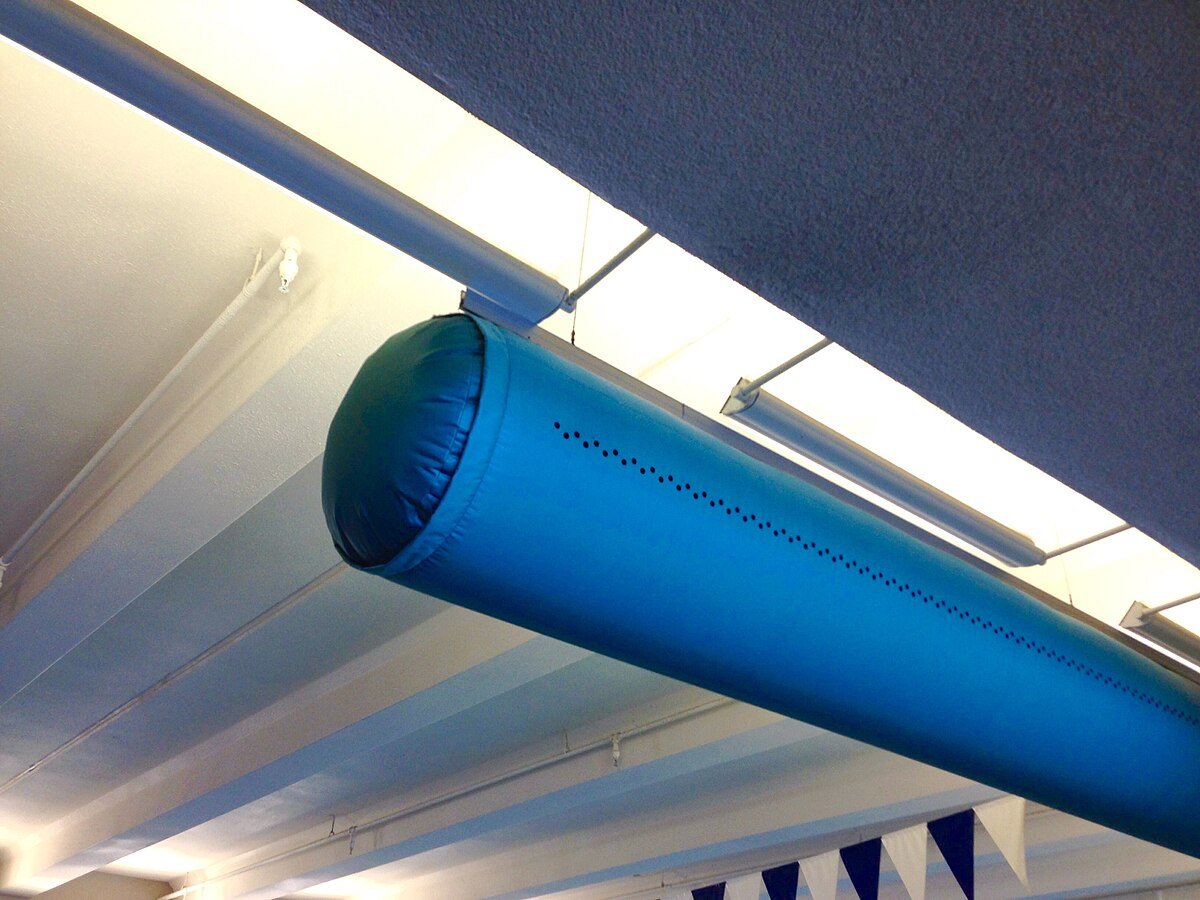

Industrial HVAC & Utilities

• HVAC expansion joint covers and flange wrap systems
• Removable insulation jackets for pipe networks

SUBSTRATE PROPERTIES COMBINATIONS

Product Variant	Base Fabric	Temperature Range	Key Functional Features	Specialty Use-Cases
PTFE-G	Fibre	–150°C to +260°C	Chemically inert, non-stick, abrasion-resistant	General-purpose industrial linings, conveyors
PTFE-A	Aramid	–150°C to +260°C	High tensile strength, cut & tear resistance, flexible	Dynamic seals, hose covers, insulation jackets
PTFE-O	Glass Fibre	–150°C to +260°C	High oil resistance, thermal endurance, anti-stick	Oil-rich environments, gasket sheets
PTFE-Acid	Glass Fibre	Up to +260°C	Acid & alkali-resistant, chemically inert	Ducts, vent sleeves, fume control in process industries
PTFE-Clean	Glass Fibre	Up to +260°C	Tear-resistant, low particulate release, hydrophobic	Cleanrooms, pharma & food-grade belts
PTFE-Antistatic	Glass Fibre	Up to +260°C	Static-dissipative, safe surface resistivity (10⁴–10⁹ Ω)	Powder handling, electronics, EMI-sensitive zones
PTFE-Antistatic	Glass Fibre	Up to +260°C	Static-dissipative, safe surface resistivity (10⁴–10⁹ Ω)	Powder handling, electronics, EMI-sensitive zones
PTFE-Heavy Duty	Multi-layer Glass	Up to +290°C (custom)	Reinforced thickness, enhanced wear and tear performance	High-abrasion zones, machinery ducting
PTFE-Heavy Duty	Multi-layer Glass	Up to +290°C (custom)	Reinforced thickness, enhanced wear and tear performance	High-abrasion zones, machinery ducting
PTFE-Food Safe	Glass Fibre	–150°C to +260°C	FDA/EC food contact approved, non-stick, stain-resistant	Bakery liners, candy belts, sealing jaws
PTFE-Hybrid	Aramid + Glass	Up to +260°C	Composite properties for dual resistance (mechanical + chemical)	Heavy-duty gasket seals, chemical shielding

ENGINEERED TO MEET THE HIGHEST STANDARDS

Engineered to meet the highest standards for safety, cleanliness, and fire performance — fully compliant with FDA, REACH, ISO 14644, RoHS, UL 94, ASTM E84, and EN 45545-2 requirements.

PFAS COMPLIANCE: RESPONSIBLE USE OF FLOURO CHEMISTRIES

OUR FLOURO SOLUTIONS RESPECT PFAS AND ADHERE TO SUBSTITUTIONS IN FORM
OF SURFACTANTS, DISPERSING AGENTS, ETC.

SUPPORT AND CUSTOM ENGINEERING FOR APPLICATION USE

Our engineering team works directly with OEMs and EPCs to develop PTFE-coated fabrics built for your exact application:

Material Selection: We help choose the right base fabric (glass, aramid, or hybrid) and PTFE formulation based on temperature, chemical, and mechanical needs.
Tailored Dimensions: Custom widths, thicknesses, and finishes for seamless integration into your process.
Ready-to-Install Solutions: PLaminated, stitched, or die-cut assemblies to minimize downtime.
Performance Validation:Each build can be certified with thermal, dielectric, and chemical resistance data for industry compliance.

From prototypes to production runs, we make custom PTFE-coated solutions fast and reliable.
