Rubber-Coated Specialty Materials for Sealing & Insulation

FLEXIBLE, FLAME-RESISTANT, OIL-TIGHT & BUILT TO ENDURE

ElastoCoat by Super tech Fabrics is a premium range of rubber-coated technical textiles developed for sealing, insulation, vibration damping, and fluid protection. Engineered with custom elastomers—Neoprene, EPDM, Nitrile, Hypalon, PU, and Silicone—ElastoCoat balances mechanical durability, elasticity, and impermeability for industrial-grade performance.

WHY CHOOSE TEXTROV® ELASTOCOAT?

Tailored Rubber Chemistry
Choose from Neoprene, EPDM, Nitrile, Hypalon, PU, or Silicone coatings based on temperature, chemical resistance, and elasticity.
Waterproof, Airtight & Fuel-Resistant
Designed for pneumatic systems, inflatable seals, and fluid containment in dynamic pressure zones.
Heat & Flame Resistant
Performs across –50°C to +250°C depending on rubber type. Ideal for engine zones, ducts, and high-heat enclosures.
Mechanical Strength Under Stress
Delivers tear, abrasion, and flex fatigue resistance for use in moving parts, suspended covers, and rugged field gear.
Integrated Fabric-Reinforced Structure
Coated over textiles like aramid, polyester, cotton, and fiberglass to withstand high load cycles and vibrations.
Outdoor & Chemical Durability
UV-resistant, weatherproof, oil-safe—built for defence, refinery, and automotive-grade exposure.

TECHNICAL PERFORMANCE DATAPOINTS

Elastomer are flexible chemistry capable of designing towards varied applications.

Property	Specification
Temperature Resistance	–50°C to +250°C depending on rubber chemistry (specialized grades for higher thermal stability)
Chemical Resistance	Resistant to fuels, oils, solvents, acids, alkalis, salt spray, and ozone (long-term chemical exposure tested)
Flame Retardancy	UL 94 V-0, ASTM D6413, NFPA 701 compliant (rubber and fabric substrate options)
Tensile & Tear Strength	High mechanical strength to handle cyclic loading, vibrations, and abrasive environments
Flex Fatigue Resistance	Engineered for continuous expansion and contraction cycles (bellows, joints, and membranes)
Waterproofing & Airtightness	100% impermeable on the coated side (suitable for pneumatic systems and fluid containment)
UV & Weather Durability	Long-term performance in outdoor, marine, and desert conditions
Dielectric Properties (Optional)	Custom-engineered for electrical insulation in specialized applications
Fabric Compatibility	Compatible with aramid, polyester, fiberglass, cotton, and nonwoven substrates
Form Factor	Available as continuous rolls, pre-stitched assemblies, die-cut gaskets, or multi-ply laminated composites

MARKETS & APPLICATIONS

Versitality of flouro chemistries in market applications

Defence

● Sensitive equipment cover
● High temperature and blast protection
● Ballistic and protective gear

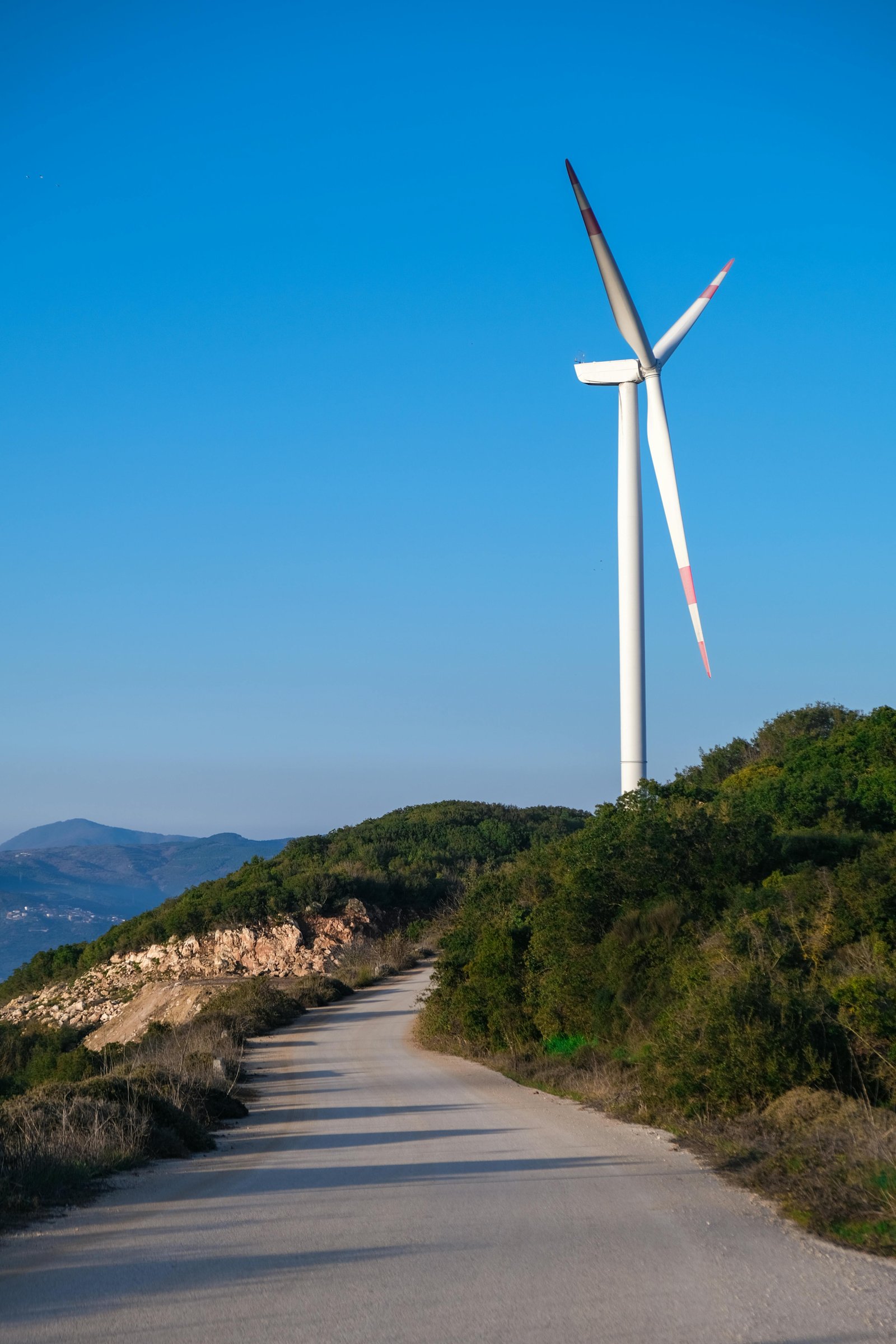

Renewable Energy

● Wind turbine blade coating
● Solar panel protection film

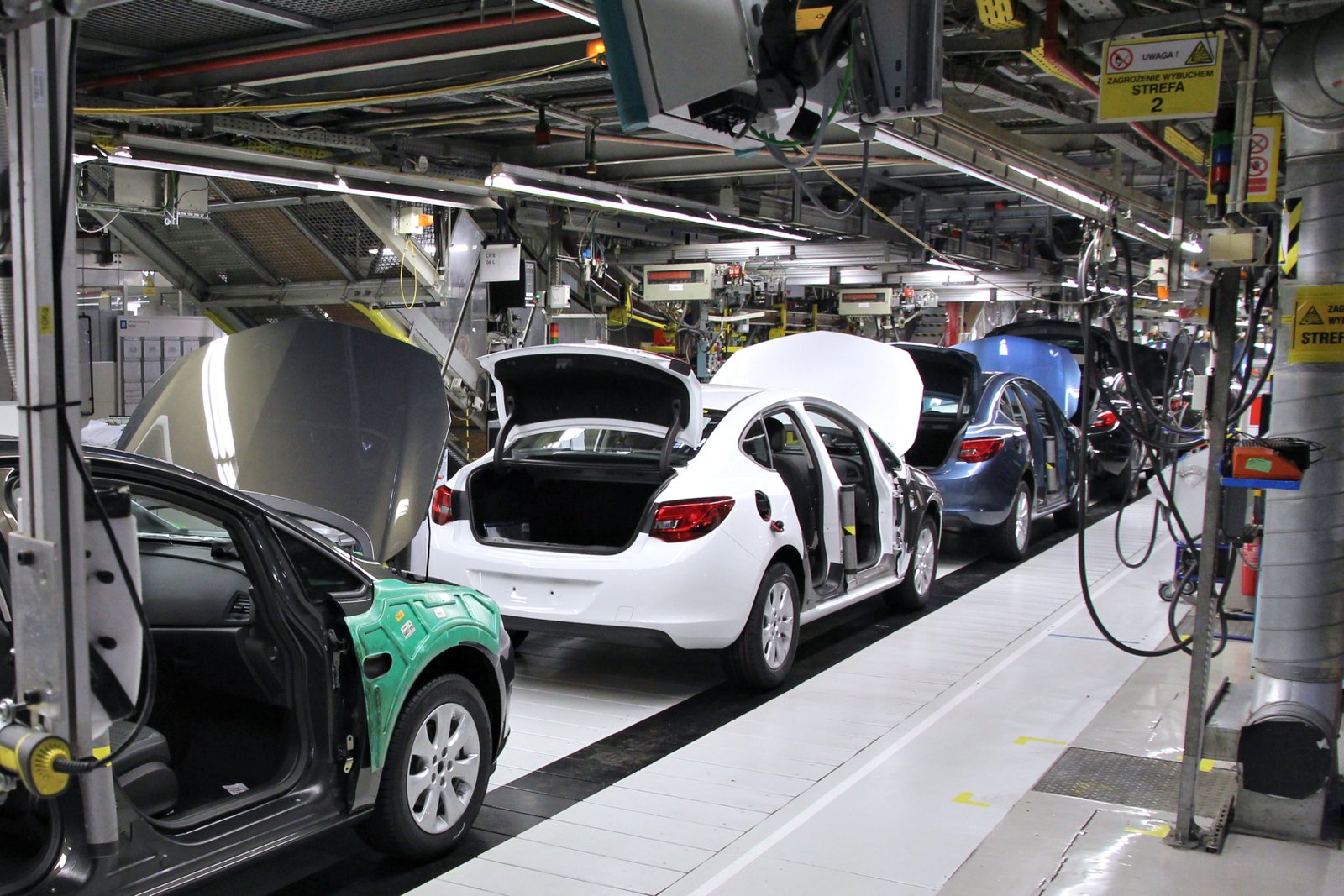

Automotive & Commercial Vehicles

● Air suspension bellows & pneumatic membranes (EPDM-coated)
● Fuel tank liners, hose seals & oil-resistant cover pads (Nitrile-coated)
● Engine firewall insulators & dashboard vibration-damping wraps
● Muffler and exhaust wrap for thermal insulation (Neoprene/Nitrile)
● Underbody splash guards and dust-protection covers

Aerospace & Avionics

● Thermal insulation blankets in aerospace engines and APU bays (Silicone/Nitrile)
● Cabin pressure seals and duct connectors (EPDM, Neoprene)
● Wing and fuselage protection membranes for vibration-damping
● Firewalls and fuel cell liners compliant with FAR 25.853

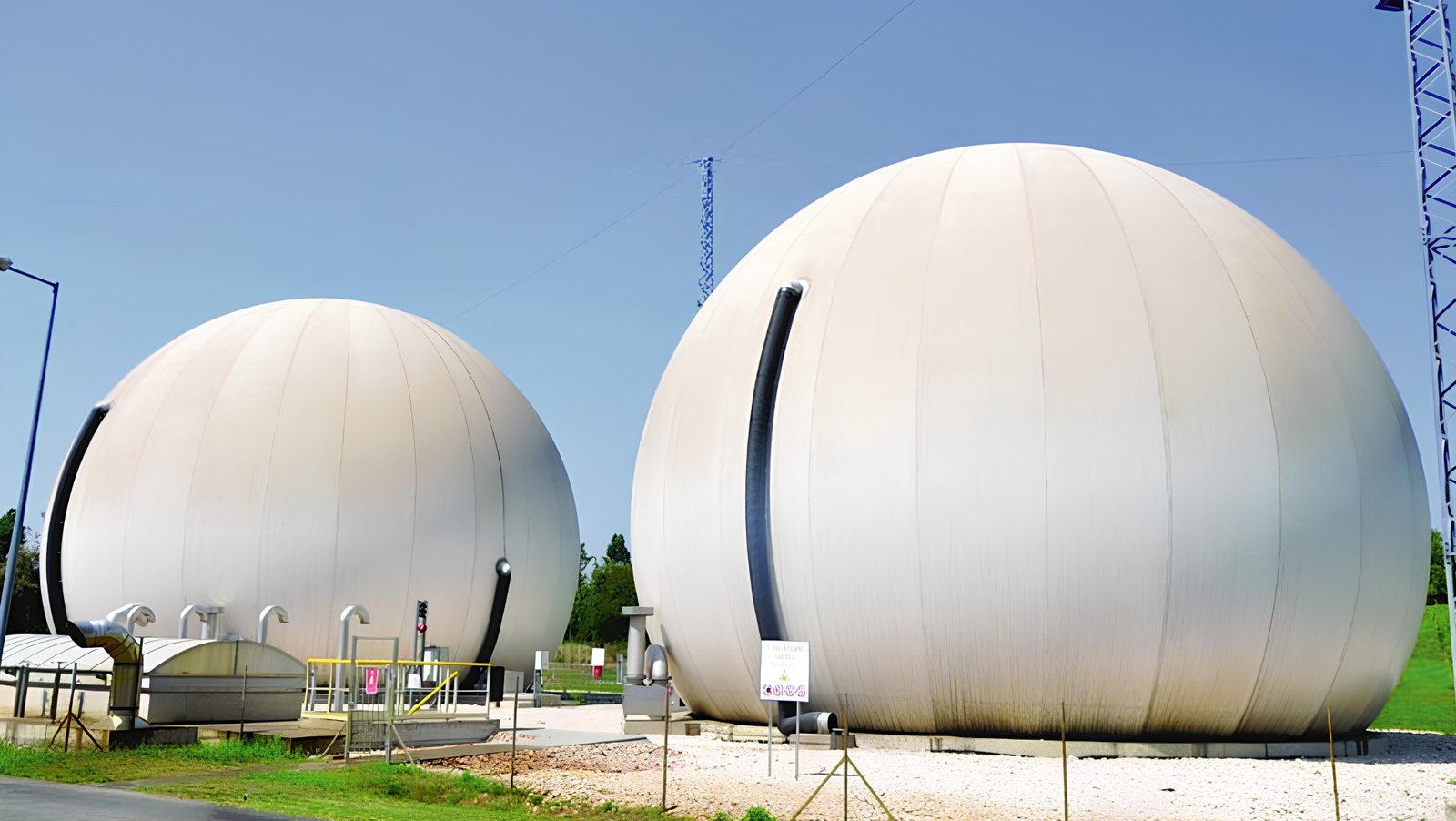

Oil & Gas (Onshore & Offshore)

● Expansion joints in pipelines, offshore rigs & refineries (Hypalon, EPDM)
● Tank and valve spray shields (Nitrile, Neoprene)
● Explosion-rated blast covers for compressor and flare zones
● Cable tray and pipeline fire barriers (Silicone, Hypalon)

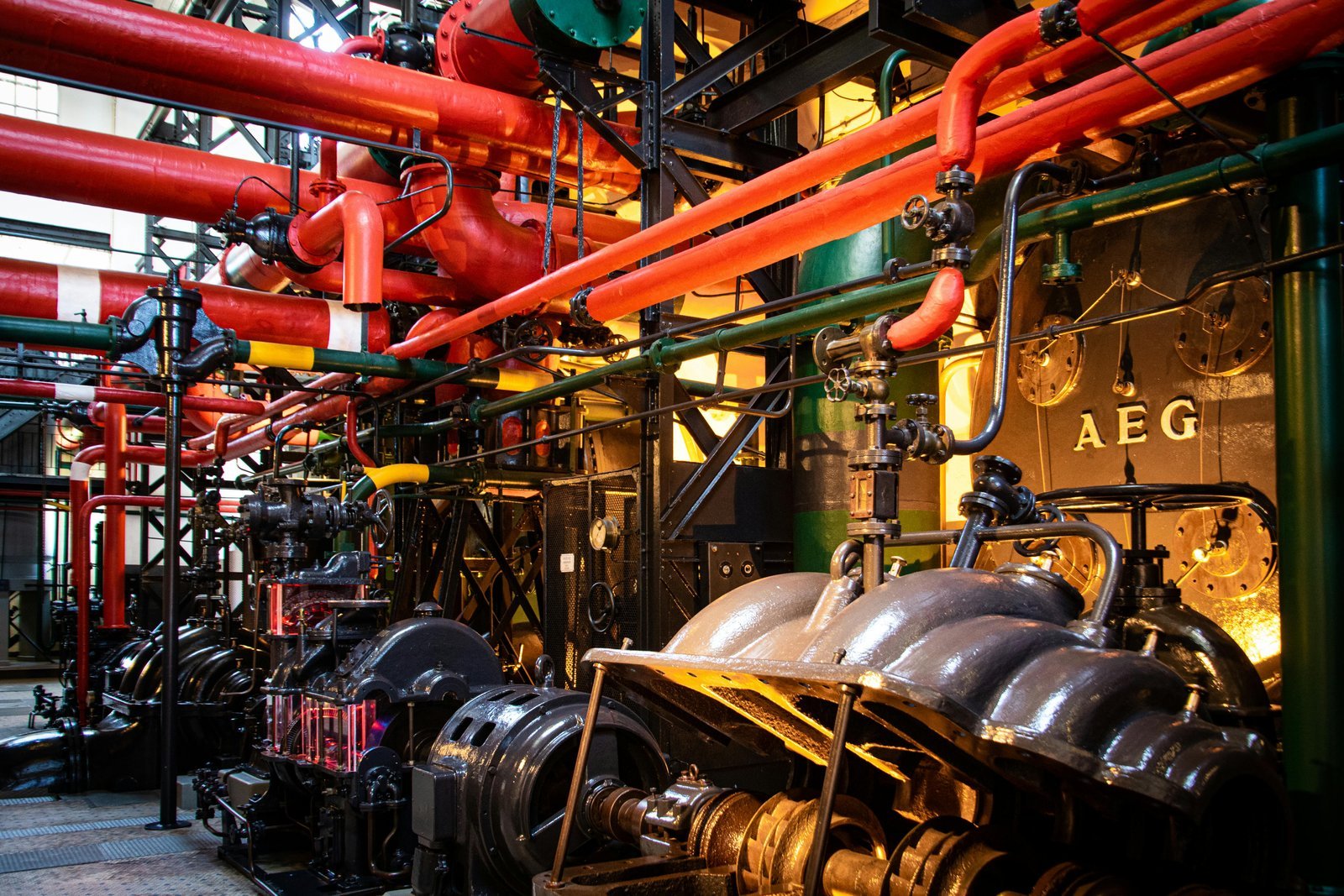

Industrial Machinery & Processing Plantss

● HVAC flexible connectors and flange seals (Neoprene/EPDM)
● Conveyor liners and machine covers (PU)
● Die-cut gaskets and vibration-damping membranes
● Fluid containment curtains and utility bellows for chemical plants

Medical Devices & Food Equipment

● Food-grade sealing fabrics & sterilizable trolley liners (PU/Silicone)
● Airtight membranes for pneumatic medical devices
● Splash-protection curtains in sterilization and processing areas
● Flexible ducting in cleanroom and pharmaceutical HVAC zones

Marine & Offshore Platforms (Additional Sector)

● Boat engine compartment fire barriers (Hypalon, Silicone)
● Inflatable life-saving equipment membranes
● Saltwater-resistant deck covers and hatch seals (EPDM, Neoprene)
● Fuel containment bladders for ships and offshore rigs

Public Infrastructure & Smart Cities (Additional Sector)

● Inflatable flood barriers & emergency response structures (EPDM, Hypalon)
● Fire-retardant sealing fabrics for underground utility tunnels
● Acoustic & vibration-damping wraps in rail/metro infrastructure

Mining & Tunnels (Additional Sector)

● Ventilation ducting and connectors (EPDM/Neoprene)
● Fire-resistant blast curtains at tunnel faces
● Fluid and slurry containment membranes

Renewable Energy & Battery Plants (Additional Sector)

● Battery module thermal barriers (Silicone-coated)
● Flexible weatherproof joints in wind turbine nacelles
● Vibration- and fire-resistant wraps for solar inverters and energy storage systems

PRODUCT LINE

Rubber Type	Key Properties	Temp Range	Applications
Neoprene (CR)	Oil & flame resistant, good mechanical strength	−40°C to +120°C	Bellows, gaskets, utility covers
EPDM	UV/steam/ozone resistant, excellent outdoor use	−50°C to +140°C	HVAC ducts, air suspension membranes
Nitrile (NBR)	Fuel & oil resistant, low gas permeability	−30°C to +130°C	Fuel liners, oil dampers, hose wraps
Hypalon (CSM)	Abrasion/solvent/ozone resistant, rugged durability	−40°C to +160°C	Expansion joints, tactical linings, fire shields
PU (Polyurethane)	Abrasion-resistant, flexible, cleanable	−30°C to +90°C	Conveyor liners, machine covers, tension fabrics

ENGINEERED TO MEET THE HIGHEST STANDARDS

Textrov Elastomer Series fabrics meet key international standards including FMVSS 302, UL 94 V-0, ASTM D6413, IS0 11871, MIL-DTL, ISO 8124, and are RoHS and REACH compliant. Additional certifications such as DRDO, food-grade, or defence/aerospace-specific validations are available on request.

SUPPORT AND CUSTOM ENGINEERING FOR APPLICATION USE

Super tech Fabrics’ Textrov ElastoCoat division works directly with OEMs, EPCs, and field engineers to design elastomer-coated fabrics that perform in the harshest environments:

Material & Coating Selection: Neoprene, EPDM, Nitrile, Hypalon, PU, or Silicone chosen for your specific temperature, chemical, and flexibility requirements.
Tailored Formats: Available as continuous rolls, die-cut gaskets, stitched assemblies, or multi-ply laminates for quick deployment.
Integration-Ready: Engineered to work with welding, sewing, and mechanical fastening without compromising airtightness or durability.
Proven Compliance: Flame, chemical, and mechanical performance data provided with every solution to meet sector standards.

From prototype to field-ready assemblies-fast ,rugged,and fully certified.
