Reflective & Aluminium-Coated Technical Materials

WHERE THERMAL REFLECTION MEETS INDUSTRIAL-GRADE PROTECTION

Textrov AluTech by Supertech Fabrics is a specialized range of aluminized technical textiles engineered to deliver superior radiant heat reflection, flame resistance, and thermal insulation. Designed for demanding industrial environments, AluTech fabrics reflect up to 97% of radiant energy—protecting personnel, equipment, and structures in zones exposed to extreme heat, molten splash, and arc flash.

WHY CHOOSE TEXTROV ALUTECH?

Dual-Function Protection
Combines radiant heat reflection and flame resistance in a single flexible barrier.
Reflects up to 95% Radiant Heat
Ideal for proximity to furnaces, engines, molten metal, or high-voltage arcs.
Fabric Versatility for Industrial Needs
Available on aramid, fiberglass, and silica base fabrics to match different thermal and mechanical requirements.
Temperature Performance
Supports continuous exposure up to 550°C, depending on fabric variant.
Long-Term Durability
Foil-laminated or vacuum-metallized aluminum layers offer excellent bond retention under stress and repeated heat cycles.
Ready for PPE & Structural Use
Conforms to industrial safety standards for protective clothing, wraps, enclosures, and more.

TECHNICAL PERFORMANCE DATAPOINTS

High wavelength radiant heat combated through reflection at C4 class grade.

Property	Typical Capability
Radiant Heat Reflectivity	Reflects up to 95% radiant energy, reducing surface temperatures significantly (ISO 9151 tested)
Temperature Resistance	Continuous exposure from –30°C up to 550°C (Silica base); –30°C to 150–300°C for aramid and fiberglass base fabrics
Molten Metal & Splash Resistance (NEW)	Withstands molten metal splash, sparks, and spatter (ASTM F1939)
Tensile Strength (NEW)	> 35 kg/25 mm in both warp and weft directions (EN ISO 13934-1 compliant)
Abrasion & Mechanical Durability (NEW)	Bonded aluminized layers retain adhesion under flexing and cyclic heat exposure
Arc Flash & Electrical Resistance (NEW)	Reflective barrier supports use in high-voltage and arc flash zones (IEC 61482-1-2 optional)
Coating Options	Foil-laminated or vacuum-metallized aluminum; optional anti-oxidation and anti-stick surface treatments
Surface Behavior	Flame retardant, moisture-repellent, and low thermal conductivity on the coated side
Chemical Resistance (NEW)	Resistant to mild acids, alkalis, and industrial pollutants (especially in oil & gas and marine environments)
Base Material Options	Aramid (lightweight PPE), Fiberglass (general industrial), Silica (>95%) (high temperature)
Weight & Thickness Range (NEW)	Available from 200 gsm to 1200 gsm, thicknesses 0.5 mm to 8 mm for different industrial needs
Custom Formats	Available in cut sheets, stitched, panels, sleeves, rolls, or PPE components (gloves, suits, wraps, curtains)

MARKETS & APPLICATIONS

Steel & Glass Plants

Furnace curtains and annealing oven reflective barriers (silica base for high-heat zones) Conveyor heat shields for glass processing lines Radiant heat panels for float glass and ceramic kilns Thermal sleeves and duct covers for reheating furnaces Splash guards and reflective welding blankets.

Aerospace & Aviation

Engine bay thermal blankets and firewall insulation (AluTech-Ar for lightweight PPE integration) Battery and avionics compartment radiant shields Heat reflective duct jackets in aircraft engine compartments (arc flash compatible) PPE integration: flight line protective gloves and aprons Thermal barrier wraps for ground support equipment near jet blast zones

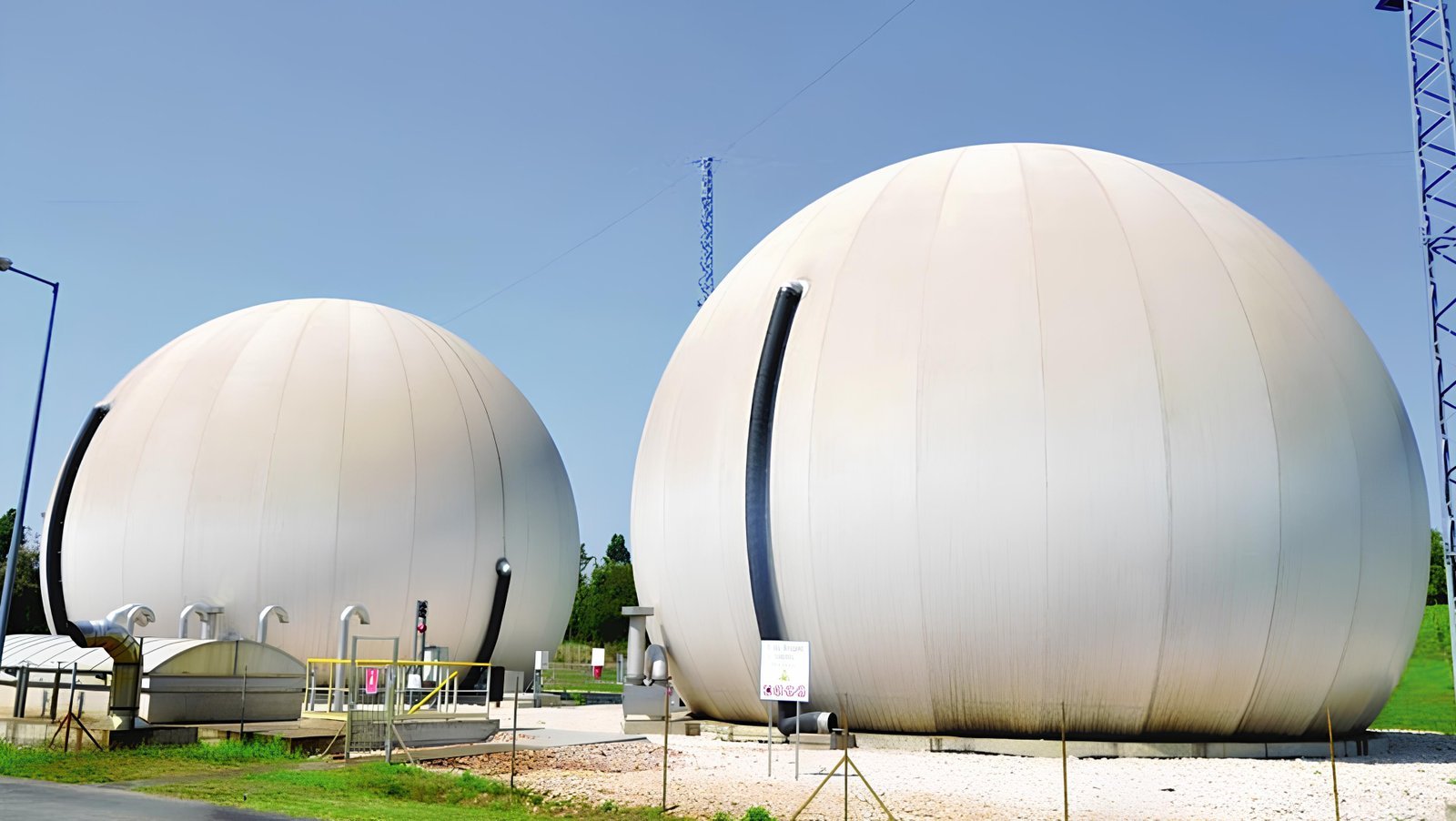

Oil & Gas / Marine

Pipe and valve insulation jackets on offshore rigs (Foil-laminated fiberglass variants) Cargo bay heat reflective barriers in ships and tankers Splash guards and fire shields for engine rooms and compressor skids Emergency thermal blankets for marine and oil spill response teams Explosion-rated radiant barriers in hydrocarbon processing zones.

Defense & Tactical Systems

Fire proximity suits and gloves for armored vehicle crews (AluTech-Ar for flexibility) Arc flash and blast protection blankets for high-voltage military gear Engine bay heat reflective wraps for defense vehicles Rapid-deploy thermal shelters and modular radiant shields Weapons bay insulation panels (flame-retardant and radiant heat reflective)

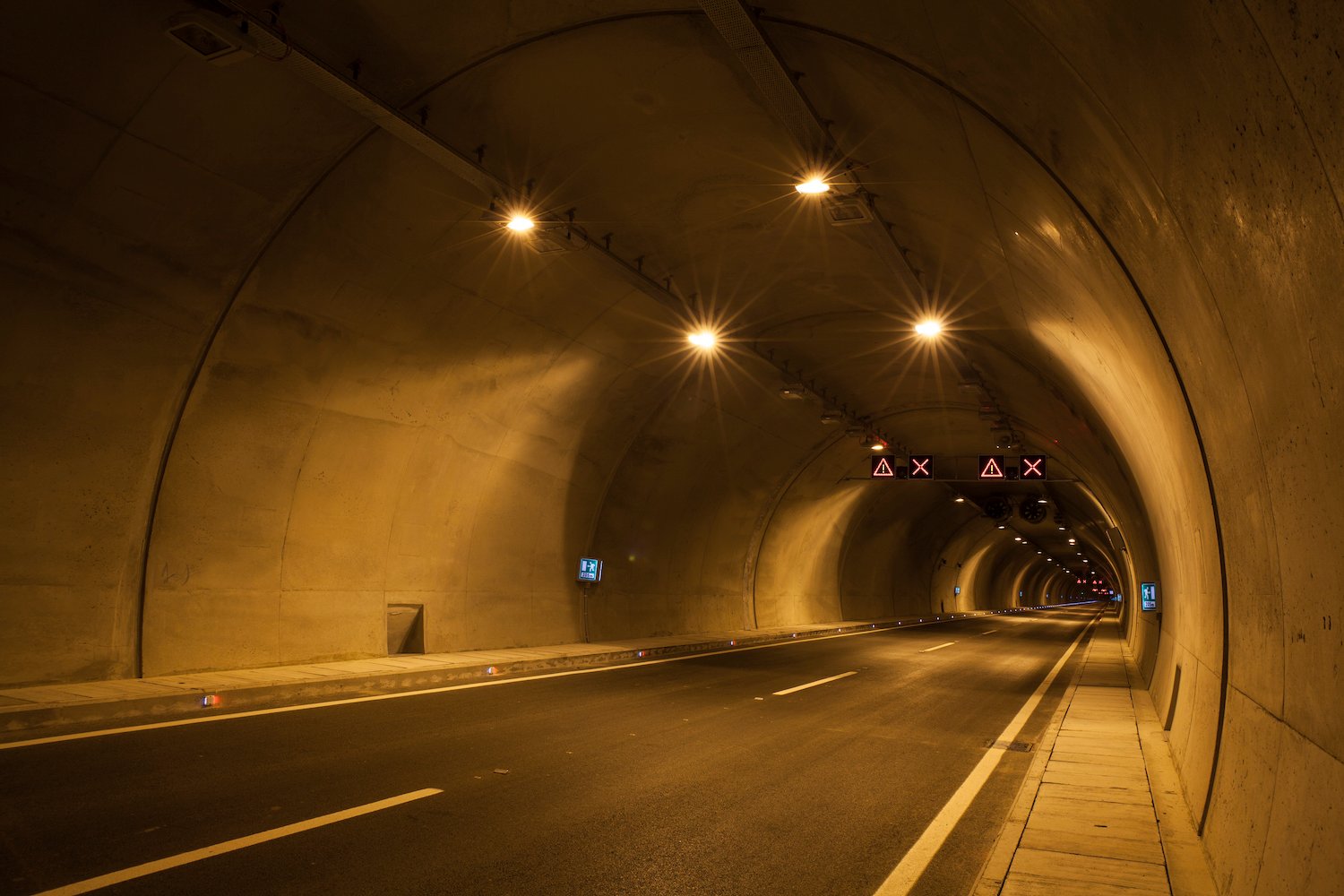

Rail & Transit Infrastructure

Tunnel duct jackets and radiant shielding wraps (AluTech-Fib and AluTech-FM variants) Cargo bay and cabinet insulation in trains and metros Fire-barrier curtains in underground utility corridors and transit stations Radiant shields for rail engine bays and exhaust enclosures.

Industrial PPE & Safety Equipment

Fire proximity PPE: aprons, gloves, suits, mitts (EN 11612 / ISO 9151 compliant) Arc flash protective clothing for electrical utilities (IEC 61482-1-2 compliant) Removable radiant barriers integrated into operator safety booths Splash and molten metal protective leggings and boots

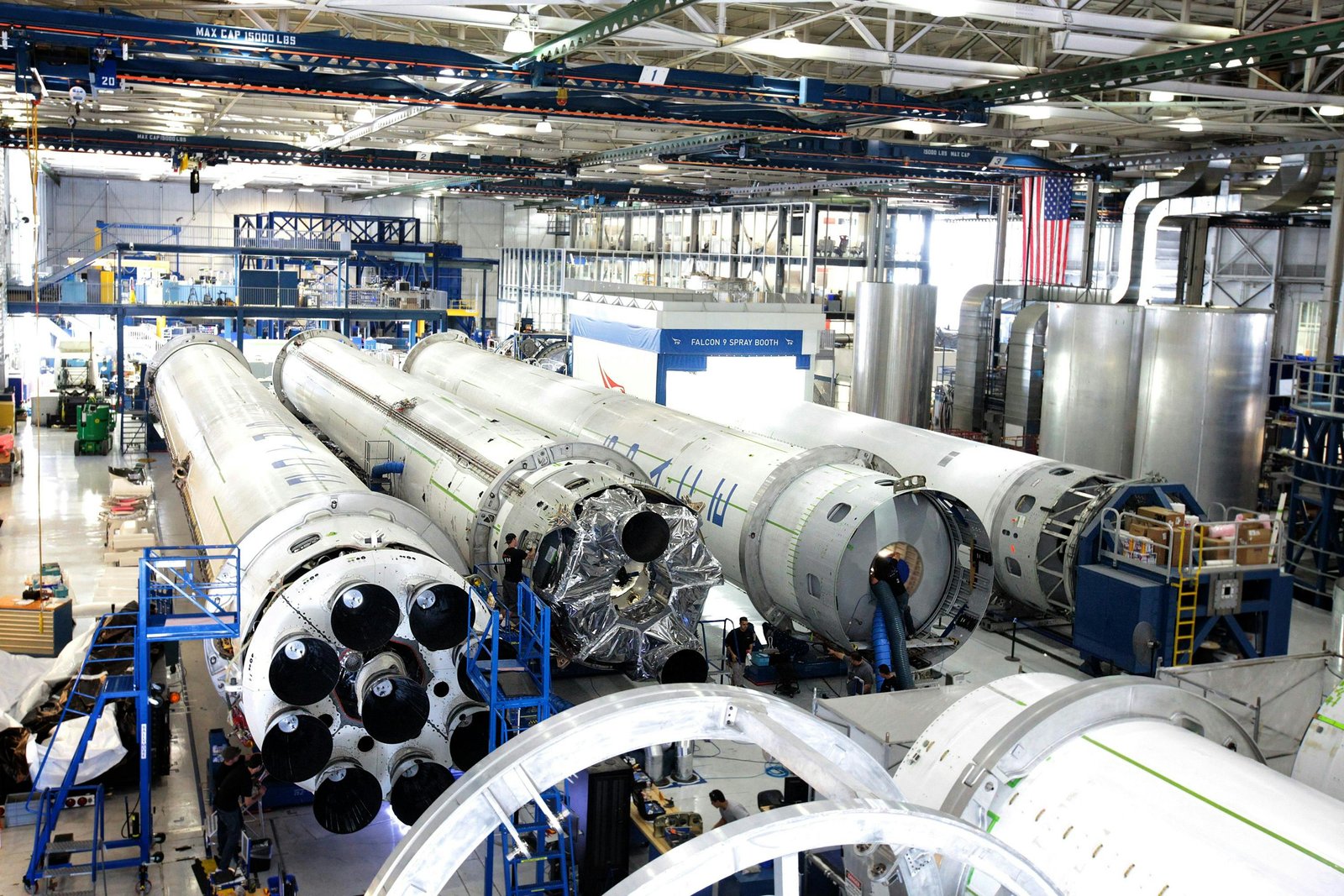

Energy Equipment OEMs

Radiant barriers for turbine enclosures and skids Heat reflective panels for battery energy storage systems (BESS) Custom insulation jackets for transformers and generators High-voltage arc flash barriers integrated into electrical cabinets.

Public Infrastructure & Smart Cities

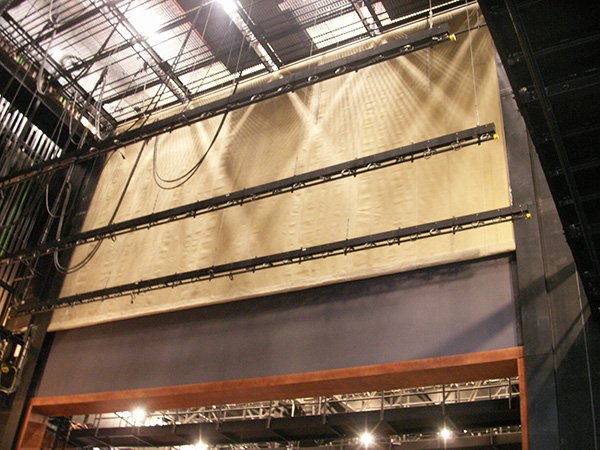

Fire-barrier curtains and radiant shields for metro tunnels and underground stations Emergency radiant barriers for utility substations and public energy corridors Heat reflective covers for critical public assets exposed to fire risk.

Mining & Tunneling

Radiant heat curtains for underground blasting zones Thermal blankets for large mining equipment engines Fire proximity PPE for operators in smelting and refining units on-site

PRODUCT LINE

Product Variant	Base Fabric	Temperature Range	Aluminum Type	Specialty
AluTech-AR+Met	Aramid	–30°C to 150°C	Metallized	Light & flexible for PPE—gloves, aprons, suits
AluTech-FG-MET	Fiberglass	–30°C to 250°C	Foil-laminated	General-purpose insulation, welding wraps
AluTech-FG-AL	Fiberglass	–30°C to 300°C	Foil-laminated	Thermal sleeves, duct covers, heat-reflective curtains
AluTech-SIL-MET	Silica	–30°C to 550°C	Foil-metallized	Splash guards, furnace curtains, flame barriers
AluTech-PET-MET/PET-AL (NEW)	Polyester	–30°C to 150°C	Foil-laminated or metallized	Economical reflective wraps, low-temp HVAC jackets, lightweight barriers

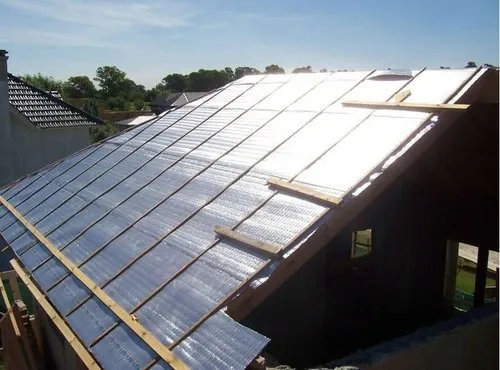

AluTech-PET-HPET-MET (NEW)	High-tenacity Polyester	–30°C to 180°C	Metallized	Stronger mechanical properties for scaffold wraps and roofing membranes
AluTech-SB-MET/SB-AL (NEW)	Nonwoven Spunbond (PP or PET)	–30°C to 120°C	Foil-metallized or laminated	Single-use fire blankets, packaging insulation, disposable radiant barriers

SUPPORT AND CUSTOM ENGINEERING FOR APPLICATION USE

Supertech Fabrics Textrov AluTech division partners with OEMs, EPCs, and safety engineers to create aluminized textile systems built to perform in the most punishing thermal environments:

Tailored Fabric & Coating Design: Aramid, fiberglass, silica, or polyester bases paired with vacuum-metallized or Foil-laminated aluminum for your heat, splash, or arc flash exposure levels.
Application-Specific Formats: Supplied as cut sheets, stitched panels, sleeves, PPE components, or continuous rolls for fast field deployment.
Built-In Performance Assurance: Every solution is tested for radiant heat reflectivity (up to 95%), molten splash resistance, and flame performance before delivery.
Seamless OEM Integration: Designed for rapid installation into PPE systems, equipment enclosures, and industrial assemblies without modification.
When fire zones demand zero failure, AluTech delivers engineered protection that reflects, resists, and endures.
